Xymon to monitor HP OpenVMS

Lues

Make sure you stop xymon, then remove all rrdctl files, then start xymon
again, and check that there are only two rrdctl files left.

Then re-try. If it continues to show problems, re-check the Apache logs to
see if there's another problem.

Cheers
Jeremy


On 22 November 2017 at 20:31, Leus Jr, Jose <user-b46c364676ee@xymon.invalid> wrote:

Thanks Jeremy. I was able to locate the rrdctl files and removed it. The
error  in the logs now gone but the CPU graph for OpenVMS systems is not
visible.

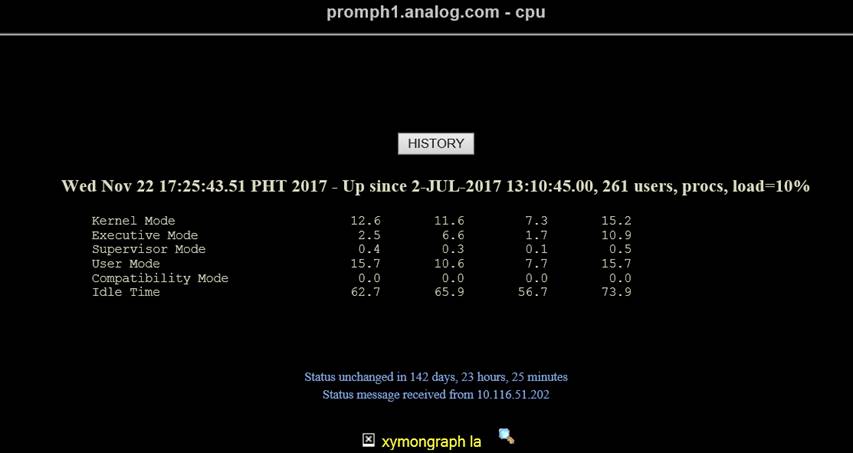

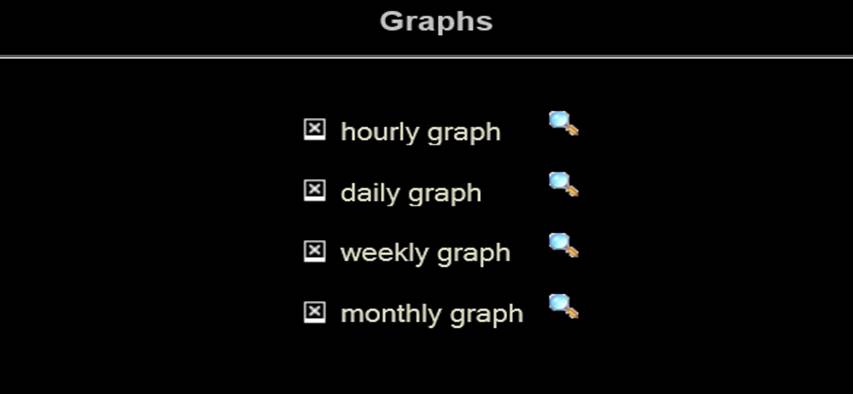

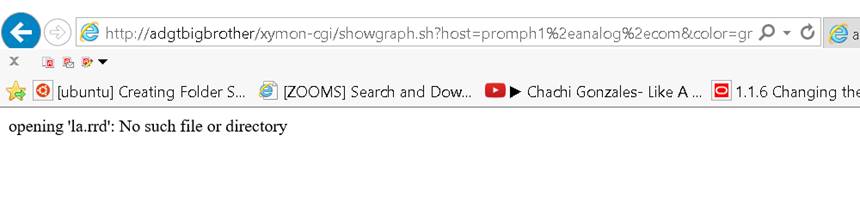

Below is the snapshots when accessing cpu graphs.


Sincerely,

Leus


*From:* Jeremy Laidman [mailto:user-71895fb2e44c@xymon.invalid]
*Sent:* Tuesday, November 21, 2017 9:03 AM

*To:* Leus Jr, Jose <user-b46c364676ee@xymon.invalid>
*Cc:* David Boyer <user-a6c09f28d9d2@xymon.invalid>; xymon at xymon.com
*Subject:* Re: [Xymon] Xymon to monitor HP OpenVMS


Try this:


$ sudo lsof -p `pgrep xymond_rrd|head -1`


One of the files listed will be something like


/usr/lib/xymon/server/tmp/rrdctl.28279


Look in the same dir for other rrdctl.* files. There should be only two in
that directory, corresponding to the two xymond_rrd processes.


Another way:


$ xymoncmd sh -c 'ls -l $XYMONTMP/rrdctl.*'


Cheers

Jeremy


On 21 November 2017 at 00:05, Leus Jr, Jose <user-b46c364676ee@xymon.invalid>
wrote:

Hi Jeremy,


I tried to seach all directories  from xymon server but I did not find any
rrdctl* files.


Sincerely,

Leus


*From:* Jeremy Laidman [mailto:user-71895fb2e44c@xymon.invalid]
*Sent:* Monday, November 20, 2017 8:31 PM
*To:* Leus Jr, Jose <user-b46c364676ee@xymon.invalid>
*Cc:* David Boyer <user-a6c09f28d9d2@xymon.invalid>; xymon at xymon.com
*Subject:* Re: [Xymon] Xymon to monitor HP OpenVMS


Might be the same problem and solution described here:


http://lists.xymon.com/archive/2013-September/038150.html


[Mon Nov 20 19:36:25 2017] [error] [client 10.116.131.209] 2017-11-20
19:36:25.250081 , referer: http://adgtbigbrother/xymon-
cgi/showgraph.sh?host=promph1.analog.com&service=la&graph_
width=576&graph_height=120&disp=promph1.analog.com&
nostale&color=green&graph_start=1511004887&graph_end=
1511177687&action=menu

[Mon Nov 20 19:36:25 2017] [error] [client 10.116.131.209] Sendto failed:
Connection refused, referer: http://adgtbigbrother/xymon-
cgi/showgraph.sh?host=promph1.analog.com&service=la&graph_
width=576&graph_height=120&disp=promph1.analog.com&
nostale&color=green&graph_start=1511004887&graph_end=
1511177687&action=menu
