"virtual hosts" for combined graphs?

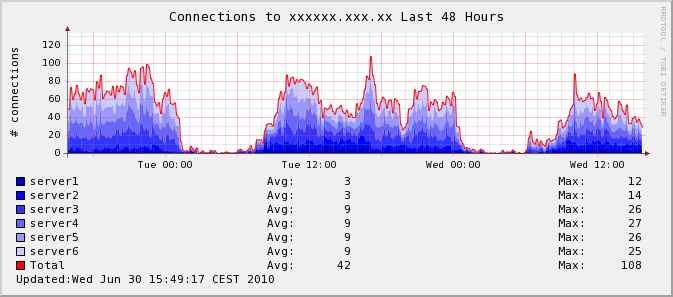

I created a small script that scrapes info from several hosts/rrd's (connections to a particular IIS site) and puts it in a combined graph (see attached sample). I'm curious if it's possible to somehow create a "virtual host" in hobbit and use the hobbitgraph.cgi functions to create the graphs so I can also have the zoom & history functions. This is the script that created the attached graph: #!/bin/bash timestamp=COMMENT:Updated\\:`date|sed 's/:/\\\\:/g'` rrdtool graph combined.png \ --imgformat=PNG \ --title="Connections to xxxxxx.xxx.xx Last 48 Hours" \ --base=1000 \ --height=120 \ --width=576 \ -s e-48h \ --slope-mode \ --lower-limit=0 \ --vertical-label="# connections" \ --step 576 \ 'DEF:a=/var/lib/hobbit/rrd/server1/iisinfo.online.han.nl.rrd:realmempct:AVERAGE' \ 'AREA:a#0000CC:server1\t' \ 'GPRINT:a:AVERAGE:Avg\: %7.0lf %s\t' \ 'GPRINT:a:MAX:Max\: %7.0lf %s\j' \ 'DEF:b=/var/lib/hobbit/rrd/server2/iisinfo.online.han.nl.rrd:realmempct:AVERAGE' \ 'STACK:b#0000FF:server2\t' \ 'GPRINT:b:AVERAGE:Avg\: %7.0lf %s\t' \ 'GPRINT:b:MAX:Max\: %7.0lf %s\j' \ 'DEF:c=/var/lib/hobbit/rrd/server3/iisinfo.online.han.nl.rrd:realmempct:AVERAGE' \ 'STACK:c#3333FF:server3\t' \ 'GPRINT:c:AVERAGE:Avg\: %7.0lf %s\t' \ 'GPRINT:c:MAX:Max\: %7.0lf %s\j' \ 'DEF:d=/var/lib/hobbit/rrd/server4/iisinfo.online.han.nl.rrd:realmempct:AVERAGE' \ 'STACK:d#6666FF:server4\t' \ 'GPRINT:d:AVERAGE:Avg\: %7.0lf %s\t' \ 'GPRINT:d:MAX:Max\: %7.0lf %s\j' \ 'DEF:e=/var/lib/hobbit/rrd/server5/iisinfo.online.han.nl.rrd:realmempct:AVERAGE' \ 'STACK:e#9999FF:server5\t' \ 'GPRINT:e:AVERAGE:Avg\: %7.0lf %s\t' \ 'GPRINT:e:MAX:Max\: %7.0lf %s\j' \ 'DEF:f=/var/lib/hobbit/rrd/server6/iisinfo.online.han.nl.rrd:realmempct:AVERAGE' \ 'STACK:f#CCCCFF:server6\t' \ 'GPRINT:f:AVERAGE:Avg\: %7.0lf %s\t' \ 'GPRINT:f:MAX:Max\: %7.0lf %s\j' \ 'CDEF:total=a,b,+,c,+,d,+,e,+,f,+' \ 'LINE1:total#FF0000:Total\t' \ 'GPRINT:total:AVERAGE:Avg\: %7.0lf %s\t' \ 'GPRINT:total:MAX:Max\: %7.0lf %s\j' \ "$timestamp"
Attachments (1)
