Xymon to monitor HP OpenVMS

Hi Jeremy,

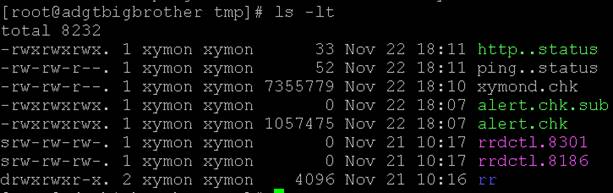

The xymon is stopped when I removed the files. At this time below are the remaining rrd.

[cid:image004.jpg at 01D363BE.E0AF3070]

Here’s the recent from log

[root at adgtbigbrother httpd]# tail -50 error_log-20170930
[Wed Nov 22 15:59:32 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 16:04:35 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 16:09:39 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 16:14:43 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 16:19:47 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 16:24:50 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 16:29:54 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 16:34:58 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 16:40:01 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 16:45:06 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 16:50:14 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 16:55:09 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 17:00:18 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 17:05:14 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 17:10:17 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 17:15:21 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 17:20:25 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 17:23:11 2017] [error] [client 10.116.131.209] File does not exist: /var/www/html/favicon.ico
[Wed Nov 22 17:23:16 2017] [error] [client 10.116.131.209] File does not exist: /var/www/html/favicon.ico
[Wed Nov 22 17:25:28 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 17:30:32 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 17:35:36 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 17:40:39 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 17:45:44 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 17:50:47 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 17:55:51 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 18:00:55 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 18:05:59 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 18:11:02 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/
[Wed Nov 22 18:16:06 2017] [error] [client 10.116.101.69] Directory index forbidden by Options directive: /var/www/html/

Sincerely,
Leus

From: Jeremy Laidman [mailto:user-71895fb2e44c@xymon.invalid]
Sent: Wednesday, November 22, 2017 6:15 PM
To: Leus Jr, Jose <user-b46c364676ee@xymon.invalid>
Cc: David Boyer <user-a6c09f28d9d2@xymon.invalid>; xymon at xymon.com
Subject: Re: [Xymon] Xymon to monitor HP OpenVMS

Lues

Make sure you stop xymon, then remove all rrdctl files, then start xymon again, and check that there are only two rrdctl files left.

Then re-try. If it continues to show problems, re-check the Apache logs to see if there's another problem.

Cheers
Jeremy


On 22 November 2017 at 20:31, Leus Jr, Jose <user-b46c364676ee@xymon.invalid<mailto:user-b46c364676ee@xymon.invalid>> wrote:
Thanks Jeremy. I was able to locate the rrdctl files and removed it. The error  in the logs now gone but the CPU graph for OpenVMS systems is not visible.

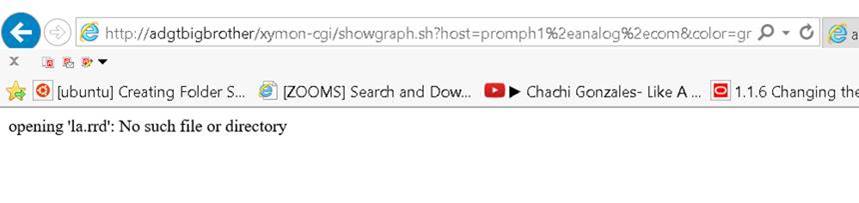

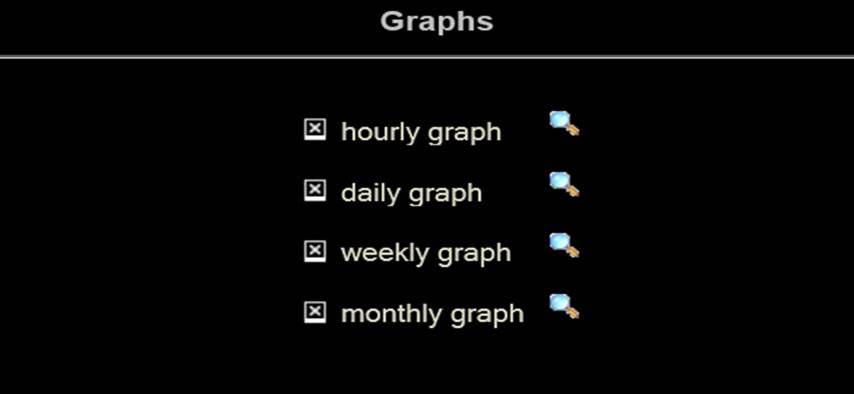

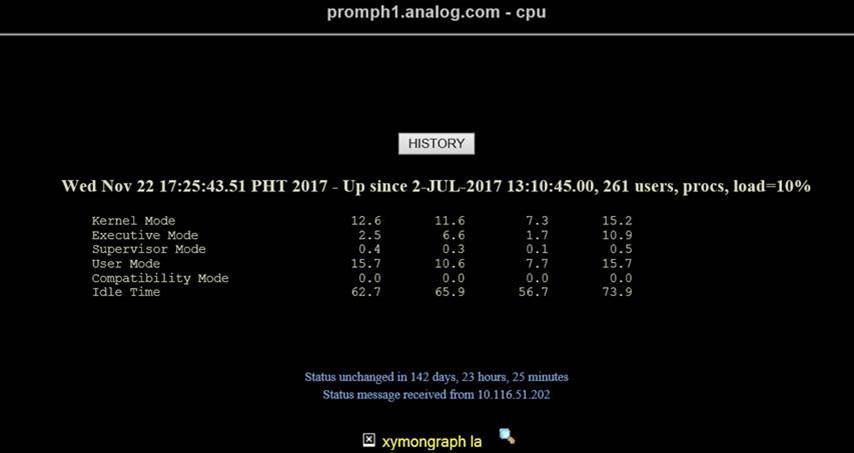

Below is the snapshots when accessing cpu graphs.

[cid:image005.jpg at 01D363BE.E0AF3070]

[cid:image011.jpg at 01D363BE.E0AF3070]

[cid:image012.jpg at 01D363BE.E0AF3070]

Sincerely,
Leus

From: Jeremy Laidman [mailto:user-71895fb2e44c@xymon.invalid<mailto:user-71895fb2e44c@xymon.invalid>]
Sent: Tuesday, November 21, 2017 9:03 AM

To: Leus Jr, Jose <user-b46c364676ee@xymon.invalid<mailto:user-b46c364676ee@xymon.invalid>>
Cc: David Boyer <user-a6c09f28d9d2@xymon.invalid<mailto:user-a6c09f28d9d2@xymon.invalid>>; xymon at xymon.com<mailto:xymon at xymon.com>
Subject: Re: [Xymon] Xymon to monitor HP OpenVMS

Try this:

$ sudo lsof -p `pgrep xymond_rrd|head -1`

One of the files listed will be something like

/usr/lib/xymon/server/tmp/rrdctl.28279

Look in the same dir for other rrdctl.* files. There should be only two in that directory, corresponding to the two xymond_rrd processes.

Another way:

$ xymoncmd sh -c 'ls -l $XYMONTMP/rrdctl.*'

Cheers
Jeremy


On 21 November 2017 at 00:05, Leus Jr, Jose <user-b46c364676ee@xymon.invalid<mailto:user-b46c364676ee@xymon.invalid>> wrote:
Hi Jeremy,

I tried to seach all directories  from xymon server but I did not find any rrdctl* files.


Sincerely,
Leus

From: Jeremy Laidman [mailto:user-71895fb2e44c@xymon.invalid<mailto:user-71895fb2e44c@xymon.invalid>]
Sent: Monday, November 20, 2017 8:31 PM
To: Leus Jr, Jose <user-b46c364676ee@xymon.invalid<mailto:user-b46c364676ee@xymon.invalid>>
Cc: David Boyer <user-a6c09f28d9d2@xymon.invalid<mailto:user-a6c09f28d9d2@xymon.invalid>>; xymon at xymon.com<mailto:xymon at xymon.com>
Subject: Re: [Xymon] Xymon to monitor HP OpenVMS

Might be the same problem and solution described here:

http://lists.xymon.com/archive/2013-September/038150.html


[Mon Nov 20 19:36:25 2017] [error] [client 10.116.131.209] 2017-11-20 19:36:25.250081 , referer: http://adgtbigbrother/xymon-cgi/showgraph.sh?host=promph1.analog.com&service=la&graph_width=576&graph_height=120&disp=promph1.analog.com&nostale&color=green&graph_start=1511004887&graph_end=1511177687&action=menu
[Mon Nov 20 19:36:25 2017] [error] [client 10.116.131.209] Sendto failed: Connection refused, referer: http://adgtbigbrother/xymon-cgi/showgraph.sh?host=promph1.analog.com&service=la&graph_width=576&graph_height=120&disp=promph1.analog.com&nostale&color=green&graph_start=1511004887&graph_end=1511177687&action=menu
