Feature request

54 messages in this thread

list Dan Vande More · Mon, 19 Sep 2005 08:46:44 -0500 ·

On my old bb server, I could click on any server's trends and it would
take to a page with the history displayed on the graphs. More
importantly, up top it would give me a lot of options like "<this
trend> for all servers in <category>" or "<this trend> for all
servers". Using this I could view memory usage/ping times/disk usage
(etc.) for every server I have all on 1 page. Is there a workaround to
get this? Is it possible I can get this in as a feature request?

Thanks

Dan

list Henrik Størner · Mon, 19 Sep 2005 16:52:01 +0200 ·

▸ quoted from Dan Vande More

On Mon, Sep 19, 2005 at 08:46:44AM -0500, Dan Vande More wrote:

On my old bb server, I could click on any server's trends and it would
take to a page with the history displayed on the graphs. More
importantly, up top it would give me a lot of options like "<this
trend> for all servers in <category>" or "<this trend> for all
servers". Using this I could view memory usage/ping times/disk usage
(etc.) for every server I have all on 1 page. Is there a workaround to
get this? Is it possible I can get this in as a feature request?

Your description doesn't sound like anything I've seen with standard
BB+LARRD.

How/where are the "<category>" groupings described ?


Regards,
Henrik

list Dan Vande More · Mon, 19 Sep 2005 10:49:02 -0500 ·

Please see attached, sorry if it's too big - I'm not an image guy:)

See right under "Load Average Trends for x" and right above the first
graph there are three links.
Since this server is located under "page Mail Mailservers" in
bb-hosts, so it gives me a link for "Load Average Trends Pages: Mail".
When I click that link, it gives me a page listing every load average
graph for every server in Mail.
If I click "Load Average Trends: All Hosts" I get a (albeit big) page
of graphs for every server.
Of course, it's not limited to load average, I could do it for
anything - disk usage, memory usage, number of users, etc. It helped
me spot trends quite a few times.

I think this comes from butter-1.0.6, not larrd, sorry for the confusion.

Thanks

Dan

▸ quoted from Henrik Størner


On 9/19/05, Henrik Stoerner <user-ce4a2c883f75@xymon.invalid> wrote:

On Mon, Sep 19, 2005 at 08:46:44AM -0500, Dan Vande More wrote:

On my old bb server, I could click on any server's trends and it would
take to a page with the history displayed on the graphs. More
importantly, up top it would give me a lot of options like "<this
trend> for all servers in <category>" or "<this trend> for all
servers". Using this I could view memory usage/ping times/disk usage
(etc.) for every server I have all on 1 page. Is there a workaround to
get this? Is it possible I can get this in as a feature request?

Your description doesn't sound like anything I've seen with standard
BB+LARRD.

How/where are the "<category>" groupings described ?


Regards,
Henrik

list Sigurður Bjarnason · Wed, 8 Feb 2006 10:42:45 -0000 ·

Hi all


If anybody here did ever use the butter grapher with bigbrother in the past, the same might remember the neat thing of being able to compare for example cpu graphs for, all hosts in its group or all hosts monitored.  I include example.. is nobody understands what in the heck I am talking about   :-)


Hope that somebody with tiny html knowledge ...pulls this off    :-)


Regards

Siggi


Load Average Trends


Load Average Trends Pages: Bigbrother <http://monitor/cgi-bin/larrd-grapher.cgi?service=la&graph=hourly&page=Bigbrother>;   Test/Dev <http://monitor/cgi-bin/larrd-grapher.cgi?service=la&graph=hourly&page=Test/Dev>;   db-machines <http://monitor/cgi-bin/larrd-grapher.cgi?service=la&graph=hourly&page=db-machines>;   networkdevices <http://monitor/cgi-bin/larrd-grapher.cgi?service=la&graph=hourly&page=networkdevices>;   OutSide <http://monitor/cgi-bin/larrd-grapher.cgi?service=la&graph=hourly&page=OutSide>;
Load Average Trends Timespans: minute <http://monitor/cgi-bin/larrd-grapher.cgi?service=la&graph=minute>;  daily <http://monitor/cgi-bin/larrd-grapher.cgi?service=la&graph=daily>;  weekly <http://monitor/cgi-bin/larrd-grapher.cgi?service=la&graph=weekly>;  monthly <http://monitor/cgi-bin/larrd-grapher.cgi?service=la&graph=monthly>;

list Henrik Størner · Wed, 8 Feb 2006 12:28:05 +0100 ·

▸ quoted from Sigurður Bjarnason

On Wed, Feb 08, 2006 at 10:42:45AM -0000, Sigurður Bjarnason wrote:

If anybody here did ever use the butter grapher with bigbrother in the past, the same might remember the neat thing of being able to compare for example cpu graphs for, all hosts in its group or all hosts monitored.  I include example.. is nobody understands what in the heck I am talking about   :-)

I never used Butter myself. Did this build a single image with multiple
graphs, or one html page with several (individual, one per host) graphs in it ?

A recent addition in Hobbit is that you can generate e.g. a "cpu load" graphs for multiple hosts. There's no tool to generate the magic URL
yet, but if you pull e.g. the cpu load graph - the page where you have
the 4 graphs - then you can add more hosts to the "host=..." part of
the URL. Just list the hosts you want to see, separated by commas.  E.g.

http://www.hswn.dk/hobbit-cgi/hobbitgraph.sh?host=voodoo.hswn.dk,fenris.hswn.dk&service=la&action=menu

Would it be useful if you could put a "page=<regex>" and/or
"host=<regex>" into the URL, and then Hobbit would build the list of
hostnames automatically ?

(Silly question, I know someone will say "yes!")

It won't do it at the group-level; Hobbit has a problem with that
because groups dont have names, so they are difficult to identify.


Regards,
Henrik

list Sigurður Bjarnason · Wed, 8 Feb 2006 16:07:38 -0000 ·

"

http://www.hswn.dk/hobbit-cgi/hobbitgraph.sh?host=voodoo.hswn.dk,fenris.hswn.dk&service=la&action=menu

▸ quoted from Henrik Størner


A recent addition in Hobbit is that you can generate e.g. a "cpu load"
graphs for multiple hosts. There's no tool to generate the magic URL
yet, but if you pull e.g. the cpu load graph - the page where you have
the 4 graphs - then you can add more hosts to the "host=..." part of
the URL. Just list the hosts you want to see, separated by commas.  E.g.

"


This is just what I was looking for, of course it would be nice to have this automated into links on the graph site in question.. but.. no rush.. :D .. I will probable make something up my self..


Regards
Siggi

▸ quoted from Henrik Størner



-----Original Message-----
From: Henrik Stoerner [mailto:user-ce4a2c883f75@xymon.invalid]
Sent: 8. febrúar 2006 11:28
To: user-ae9b8668bcde@xymon.invalid
Subject: Re: [hobbit] Feature Request

On Wed, Feb 08, 2006 at 10:42:45AM -0000, Sigurður Bjarnason wrote:

If anybody here did ever use the butter grapher with bigbrother in the
past, the same might remember the neat thing of being able to compare
for example cpu graphs for, all hosts in its group or all hosts
monitored.  I include example.. is nobody understands what in the
heck I am talking about   :-)

I never used Butter myself. Did this build a single image with multiple
graphs, or one html page with several (individual, one per host) graphs
in it ?

A recent addition in Hobbit is that you can generate e.g. a "cpu load"
graphs for multiple hosts. There's no tool to generate the magic URL
yet, but if you pull e.g. the cpu load graph - the page where you have
the 4 graphs - then you can add more hosts to the "host=..." part of
the URL. Just list the hosts you want to see, separated by commas.  E.g.

http://www.hswn.dk/hobbit-cgi/hobbitgraph.sh?host=voodoo.hswn.dk,fenris.hswn.dk&service=la&action=menu

Would it be useful if you could put a "page=<regex>" and/or
"host=<regex>" into the URL, and then Hobbit would build the list of
hostnames automatically ?

(Silly question, I know someone will say "yes!")

It won't do it at the group-level; Hobbit has a problem with that
because groups dont have names, so they are difficult to identify.


Regards,
Henrik

list Sigurður Bjarnason · Wed, 8 Feb 2006 16:14:12 -0000 ·

Úps... sorry not quite..

I was looking for one graph pr host, not one graph and all hosts merged to just one..


I would like to see on one page, for example

Cpu for host1 host2 host3 etc all in its own graph... ... for comparing purposes... and such


Regards
Siggi

▸ quoted from Sigurður Bjarnason

-----Original Message-----
From: Sigurður Bjarnason [mailto:user-1cb52abe860c@xymon.invalid]
Sent: 8. febrúar 2006 16:08
To: user-ae9b8668bcde@xymon.invalid
Subject: RE: [hobbit] Feature Request

"

http://www.hswn.dk/hobbit-cgi/hobbitgraph.sh?host=voodoo.hswn.dk,fenris.hswn.dk&service=la&action=menu

A recent addition in Hobbit is that you can generate e.g. a "cpu load"
graphs for multiple hosts. There's no tool to generate the magic URL
yet, but if you pull e.g. the cpu load graph - the page where you have
the 4 graphs - then you can add more hosts to the "host=..." part of
the URL. Just list the hosts you want to see, separated by commas.  E.g.

"

This is just what I was looking for, of course it would be nice to have this automated into links on the graph site in question.. but.. no rush.. :D .. I will probable make something up my self..

Regards
Siggi

-----Original Message-----
From: Henrik Stoerner [mailto:user-ce4a2c883f75@xymon.invalid]
Sent: 8. febrúar 2006 11:28
To: user-ae9b8668bcde@xymon.invalid
Subject: Re: [hobbit] Feature Request

On Wed, Feb 08, 2006 at 10:42:45AM -0000, Sigurður Bjarnason wrote:

If anybody here did ever use the butter grapher with bigbrother in the
past, the same might remember the neat thing of being able to compare
for example cpu graphs for, all hosts in its group or all hosts
monitored.  I include example.. is nobody understands what in the
heck I am talking about   :-)

I never used Butter myself. Did this build a single image with multiple
graphs, or one html page with several (individual, one per host) graphs
in it ?

A recent addition in Hobbit is that you can generate e.g. a "cpu load"
graphs for multiple hosts. There's no tool to generate the magic URL
yet, but if you pull e.g. the cpu load graph - the page where you have
the 4 graphs - then you can add more hosts to the "host=..." part of
the URL. Just list the hosts you want to see, separated by commas.  E.g.

http://www.hswn.dk/hobbit-cgi/hobbitgraph.sh?host=voodoo.hswn.dk,fenris.hswn.dk&service=la&action=menu

Would it be useful if you could put a "page=<regex>" and/or
"host=<regex>" into the URL, and then Hobbit would build the list of
hostnames automatically ?

(Silly question, I know someone will say "yes!")

It won't do it at the group-level; Hobbit has a problem with that
because groups dont have names, so they are difficult to identify.


Regards,
Henrik

list Johann Eggers · Wed, 08 Feb 2006 17:21:10 +0100 ·

▸ quoted from Sigurður Bjarnason

Sigurður Bjarnason wrote:

Úps... sorry not quite..

I was looking for one graph pr host, not one graph and all hosts merged to just one..


I would like to see on one page, for example

Cpu for host1 host2 host3 etc all in its own graph... ... for comparing purposes... and such


Regards
Siggi

There is a script called larrd-graphs.cgi on Deadcat which exactly do
this for the "old BB"

Johann

list Steve Aiello · Wed, 8 Feb 2006 11:28:37 -0500 ·

You can also use drraw, it is great for setting up custom rrd graphs from the rrd's that Hobbit/BB/larrd create.

http://web.taranis.org/drraw/

▸ quoted from Johann Eggers

-----Original Message-----
From: Johann Eggers [mailto:user-769b09132207@xymon.invalid] Sent: Wednesday, February 08, 2006 11:21 AM
To: user-ae9b8668bcde@xymon.invalid
Subject: Re: [hobbit] Feature Request


Sigurður Bjarnason wrote:

Úps... sorry not quite..

I was looking for one graph pr host, not one graph and all hosts merged >to just one..


I would like to see on one page, for example

Cpu for host1 host2 host3 etc all in its own graph... ... for comparing >purposes... and such


Regards
Siggi

There is a script called larrd-graphs.cgi on Deadcat which exactly do this for the "old BB"

Johann

list Sigurður Bjarnason · Wed, 8 Feb 2006 16:53:40 -0000 ·

Would.. this work for hobbit ?.... Henrik ?.... :D

Regards
Siggi

▸ quoted from Johann Eggers



-----Original Message-----
From: Johann Eggers [mailto:user-769b09132207@xymon.invalid]
Sent: 8. febrúar 2006 16:21
To: user-ae9b8668bcde@xymon.invalid
Subject: Re: [hobbit] Feature Request

Sigurður Bjarnason wrote:

Úps... sorry not quite..

I was looking for one graph pr host, not one graph and all hosts merged to just one..


I would like to see on one page, for example

Cpu for host1 host2 host3 etc all in its own graph... ... for comparing purposes... and such


Regards
Siggi

There is a script called larrd-graphs.cgi on Deadcat which exactly do
this for the "old BB"

Johann

list Henrik Størner · Wed, 8 Feb 2006 18:01:04 +0100 ·

▸ quoted from Sigurður Bjarnason

On Wed, Feb 08, 2006 at 04:14:12PM -0000, Sigurður Bjarnason wrote:

I was looking for one graph pr host, not one graph and all hosts merged to just one..


I would like to see on one page, for example

Cpu for host1 host2 host3 etc all in its own graph... ... for comparing purposes... and such

Personally I think comparing is easier if it's on one graph instead of
multiple - but there are different opinions on that, I know.

If it's something you won't be changing much, you could just create
a simple static HTML page with links to the dynamically created
graph images. It would go something like this:

<html>
  <body>
   <img src="/cgi-bin/hobbitgraph.cgi?host=host1&service=la&graph=hourly&action=view">
   <br>
   <img src="/cgi-bin/hobbitgraph.cgi?host=host2&service=la&graph=hourly&action=view">
   <br>
  </body>
</html>

Just add more <img src=...> and <br>lines for the hosts you want.

The "service=..." defines which graph you see - you can look at the
URL's for the graphs you want to use and just copy the "service"
setting.

"graph=hourly" shows the 48-hour graph. You can use "daily", "weekly",
or "monthly" for the other graph periods.


Henrik

list Henrik Størner · Wed, 8 Feb 2006 18:01:44 +0100 ·

On Wed, Feb 08, 2006 at 04:53:40PM -0000, Sigurður Bjarnason wrote:

There is a script called larrd-graphs.cgi on Deadcat which exactly do
this for the "old BB"

Would.. this work for hobbit ?.... Henrik ?.... :D

No.


Henrik

list Olivier Beau · Tue, 23 May 2006 12:03:54 +0200 ·

Hello Henrik,


I have customers that want to be able to restart their apache service via a sudo
script, which causes un-desired alarms..


I would like to disable a host.event from the host itseft without setting
--maint-senders to all my network ?
i just want to be sure the disable comand came from the ip corresponding to the
host-s ip in bb-hosts...


Olivier

list Henrik Størner · Mon, 29 May 2006 22:54:21 +0200 ·

▸ quoted from Olivier Beau

On Tue, May 23, 2006 at 12:03:54PM +0200, Olivier Beau wrote:

I have customers that want to be able to restart their apache service via a sudo
script, which causes un-desired alarms..

I would like to disable a host.event from the host itseft without setting
--maint-senders to all my network ?
i just want to be sure the disable comand came from the ip corresponding to the
host-s ip in bb-hosts...

Included in the next snapshot, and hence in the 4.2 release.


Regards,
Henrik

list Mike Rowell · Tue, 1 Aug 2006 11:09:43 +0100 ·

Probably been asked for before, but here goes.


On some of our busier servers we have very long lines of checks, many of
which are closely associated with other checks on that line, what I
would like to do is group them on that server line under a name which
links to a subpage with the checks I want in them so for instance.


Infra-01 conn cpu disk files info int01-08 memory meta msgs oradb orasys
oratns oralocks aq ports procs ssh trends


Under the way I would like them you could group all the ora checks under
a separate title and page so it would like as follows


Infra-01 conn cpu disk files info int01-08 memory meta msgs Oracle ports
procs ssh trends


|


|


Oradb orasys oratns oralocks aq


Hope that makes sense.


Regards,


Mike Rowell


This email has been scanned for all viruses by the MessageLabs service.

list Matthew Davis · Sun, 20 Aug 2006 23:38:12 -0400 ·

+1
(if its not already possible)  How to do it would be nice if it is.

▸ quoted from Mike Rowell


On 8/1/06, Mike Rowell <user-63f3e97eb1de@xymon.invalid> wrote:


Probably been asked for before, but here goes.


On some of our busier servers we have very long lines of checks, many of
which are closely associated with other checks on that line, what I would
like to do is group them on that server line under a name which links to a
subpage with the checks I want in them so for instance.


Infra-01 conn cpu disk files info int01-08 memory meta msgs oradb orasys
oratns oralocks aq ports procs ssh trends


Under the way I would like them you could group all the ora checks under a
separate title and page so it would like as follows


Infra-01 conn cpu disk files info int01-08 memory meta msgs Oracle ports
procs ssh trends


                                    |


                                    |


            Oradb orasys oratns oralocks aq


Hope that makes sense.


Regards,


Mike Rowell


 This email has been scanned for all viruses by the MessageLabs service.

--


Matthew Davis
http://familycampground.org/matthew/

list Torsten Richter · Wed, 13 Sep 2006 10:43:02 +0200 ·

Hi,

I'm trying to get familiar with the files test.
At the moment this test shows a "clear" icon.

I want to check if /var/adm/wtmpx is smaller than 50 MB.
I've added
     FILE yellow /var/adm/wtmpx SIZE<50M TRACK=wtmp
to hobbit-clients.cfg and
     file:/var/adm/wtmpx
to client-local.cfg.

But nothing happens. What am I missing?

Regards
Torsten

list Henrik Størner · Wed, 13 Sep 2006 12:53:46 +0200 ·

▸ quoted from Torsten Richter

On Wed, Sep 13, 2006 at 10:43:02AM +0200, Torsten Richter wrote:

I want to check if /var/adm/wtmpx is smaller than 50 MB.
I've added
     FILE yellow /var/adm/wtmpx SIZE<50M TRACK=wtmp

According to the man-page:

       FILE filename [color] [things to check] [TRACK]

so it should be

      FILE /var/adm/wtmpx yellow SIZE<50M TRACK=wtmp

(your example is a definition for a file called "yellow".


Regards,
Henrik

list Jason Altrincham Jones · Wed, 13 Sep 2006 14:08:20 +0100 ·

Hi all,

I am trying to alter the acknowledge alert page to include days and
hours but not sure where to start the bb-ack.cgi in cgi-secure seemed
like a good place to start but it appears to be a compiled file, how
would I go about altering the webpage?

Thanks,
Jason.

list Ralph Mitchell · Wed, 13 Sep 2006 08:37:31 -0500 ·

▸ quoted from Jason Altrincham Jones

On 9/13/06, Jones, Jason (Altrincham) <user-ee957b46acd2@xymon.invalid> wrote:

Hi all,

I am trying to alter the acknowledge alert page to include days and
hours but not sure where to start the bb-ack.cgi in cgi-secure seemed
like a good place to start but it appears to be a compiled file, how
would I go about altering the webpage?


bb-ack is a C program (web/bb-ack.c in the hobbit source directory), which
emits the web page.  You'd need to alter the source, then recompile and
install it.

Ralph Mitchell

list Torsten Richter · Wed, 13 Sep 2006 16:23:50 +0200 ·

Hi Henrik,

thanks for the answer.
That was the problem. I was suffering from the usual admin problem that there was more blood than coffee running through my veins. :-/

Can I also do something like
    FILE /some/filename yellow SIZE<50M SIZE>10M
when the file should be between 10 and 50 MB?

Regards
Torsten

▸ quoted from Torsten Richter

On Wed, Sep 13, 2006 at 10:43:02AM +0200, Torsten Richter wrote:

I want to check if /var/adm/wtmpx is smaller than 50 MB.
I've added
     FILE yellow /var/adm/wtmpx SIZE<50M TRACK=wtmp

According to the man-page:

      FILE filename [color] [things to check] [TRACK]

so it should be

     FILE /var/adm/wtmpx yellow SIZE<50M TRACK=wtmp

(your example is a definition for a file called "yellow".


Regards,
Henrik

list Henrik Størner · Wed, 13 Sep 2006 16:28:34 +0200 ·

▸ quoted from Torsten Richter

On Wed, Sep 13, 2006 at 04:23:50PM +0200, Torsten Richter wrote:

thanks for the answer.
That was the problem. I was suffering from the usual admin problem that
there was more blood than coffee running through my veins. :-/

OK, I know how you feel :-)

▸ quoted from Torsten Richter

Can I also do something like
    FILE /some/filename yellow SIZE<50M SIZE>10M
when the file should be between 10 and 50 MB?

Should work, yes. The minimum- and maximum-size checks are handled
separately, for just that purpose.


Regards,
Henrik

list Jason Altrincham Jones · Wed, 13 Sep 2006 15:53:43 +0100 ·

Hi Henrik (and any other developers),

Unless this is already possible, which I don't think it is can you add a
feature anytime in the future to make hobbit ignore automounts and nfs
mounts?  If this is already possible then how do you do it? And sorry to
waste your time

Thanks,
Jason.

list Henrik Størner · Wed, 13 Sep 2006 17:28:55 +0200 ·

▸ quoted from Jason Altrincham Jones

On Wed, Sep 13, 2006 at 03:53:43PM +0100, Jones, Jason (Altrincham) wrote:

Unless this is already possible, which I don't think it is can you add a
feature anytime in the future to make hobbit ignore automounts and nfs
mounts?  If this is already possible then how do you do it? And sorry to
waste your time

The commands used in the Hobbit client should ignore NFS-mounted
filesystems. The Solaris client in Hobbit 4.2.0 didn't ignore the "lofs"
filesystems, but that has been corrected.

So if you have any others that you want to ignore, please let me know.


Regards,
Henrik

list Jason Altrincham Jones · Wed, 13 Sep 2006 16:42:11 +0100 ·

Hi Henrik,

Thanks for the fast response.  This client is running
hobbitclient-sunos.sh,v 1.5, and runs the command:
/bin/df -n|awk '{print $3}'|egrep -v "^proc|^fd|^mntfs"|sort|uniq
On this system it returns :
mvfs
nfs
tmpfs
ufs

is the client out of date maybe? It is nfs there seems to be trouble
with, basically the way my colleages want it (I'm just the messenger
they cry to and blame) is that hobbit doesn't look at network mounts
because they are all ready monitored on a different machine.

Thanks,
Jason.

▸ quoted from Henrik Størner



-----Original Message-----
From: Henrik Stoerner [mailto:user-ce4a2c883f75@xymon.invalid]
Sent: 13 September 2006 16:29
To: user-ae9b8668bcde@xymon.invalid
Subject: Re: [hobbit] Feature request

On Wed, Sep 13, 2006 at 03:53:43PM +0100, Jones, Jason (Altrincham)
wrote:

Unless this is already possible, which I don't think it is can you add
a
feature anytime in the future to make hobbit ignore automounts and nfs
mounts?  If this is already possible then how do you do it? And sorry
to
waste your time

The commands used in the Hobbit client should ignore NFS-mounted
filesystems. The Solaris client in Hobbit 4.2.0 didn't ignore the "lofs"
filesystems, but that has been corrected.

So if you have any others that you want to ignore, please let me know.


Regards,
Henrik

list Jason Altrincham Jones · Wed, 13 Sep 2006 16:52:25 +0100 ·

Yip seems so, found the one on the hobbit site that take nfs into
account, sorry for bothering you.
Jason.

▸ quoted from Jason Altrincham Jones

-----Original Message-----
From: Jones, Jason (Altrincham)
Sent: 13 September 2006 16:42
To: user-ae9b8668bcde@xymon.invalid
Subject: RE: [hobbit] Feature request

Hi Henrik,

Thanks for the fast response.  This client is running
hobbitclient-sunos.sh,v 1.5, and runs the command:
/bin/df -n|awk '{print $3}'|egrep -v "^proc|^fd|^mntfs"|sort|uniq
On this system it returns :
mvfs
nfs
tmpfs
ufs

is the client out of date maybe? It is nfs there seems to be trouble
with, basically the way my colleages want it (I'm just the messenger
they cry to and blame) is that hobbit doesn't look at network mounts
because they are all ready monitored on a different machine.

Thanks,
Jason.

-----Original Message-----
From: Henrik Stoerner [mailto:user-ce4a2c883f75@xymon.invalid]
Sent: 13 September 2006 16:29
To: user-ae9b8668bcde@xymon.invalid
Subject: Re: [hobbit] Feature request

On Wed, Sep 13, 2006 at 03:53:43PM +0100, Jones, Jason (Altrincham)
wrote:

Unless this is already possible, which I don't think it is can you add
a
feature anytime in the future to make hobbit ignore automounts and nfs
mounts?  If this is already possible then how do you do it? And sorry
to
waste your time

The commands used in the Hobbit client should ignore NFS-mounted
filesystems. The Solaris client in Hobbit 4.2.0 didn't ignore the "lofs"
filesystems, but that has been corrected.

So if you have any others that you want to ignore, please let me know.


Regards,
Henrik

list Olivier Boyaval · Mon, 18 Sep 2006 18:21:56 +0200 ·

Hello,

I have installed the dbcheck.pl to test a Oracle base on my hobbitmon
server and I have the error :
ERROR OCIEnvNlsCreate. Check ORACLE_HOME env var, NLS settings,
permissions, etc.


My server is a SLES 9 SP3 x86_64 and I use Oracle InstantClient 10R2

any idea ?

Cheers

--
Olivier Boyaval

list Francesco Duranti · Tue, 19 Sep 2006 00:04:57 +0200 ·

I've not tested the dbcheck.pl with the InstantClient because I've a
full 10r2 client installed on the machine but checking on some mailing
list archive it seems that InstantClient and DBD::Oracle have some
problems working together....
One suggestion I've found was to set the  Oracle_home (in the
dbcheck.ini file) to the lib directory instead of the root into which
the instant client is installed (something like
/usr/lib/oracle/10.2.0.2/client/lib)...
Another thing is to check that you have the following package installed
(took from the DBD:Oracle readme)
* The "Basic" package for the essential Oracle libraries.
* The "SDK" package for the headers and makefile.
* The "SQL*Plus" component is optional, but will help you check your
configuration and DBD::Oracle determine your Oracle version.
Then you can try to define the full hostname/port/sid/user/password in
the dbcheck.ini file under the db you want to configure (it should skip
the tnsnames.ora and go through to the db server). Or you can try to
define your db in a tnsnames.ora under $ORACLE_HOME/network/admin and
put only sid username and password in the dbconfiguration.

What version of DBD::Oracle module are you using? Did it compile/test
successfully? Can you check if with sqlplus you can connect correctly to
that database?
Francesco

▸ quoted from Olivier Boyaval

-----Original Message-----
From: Olivier Boyaval [mailto:user-f56ee5cec7be@xymon.invalid] Sent: Monday, September 18, 2006 6:22 PM
To: user-ae9b8668bcde@xymon.invalid
Subject: [hobbit] pb with hobbit-perl-client and dbcheck

Hello,

I have installed the dbcheck.pl to test a Oracle base on my hobbitmon server and I have the error :
ERROR OCIEnvNlsCreate. Check ORACLE_HOME env var, NLS settings, permissions, etc.

My server is a SLES 9 SP3 x86_64 and I use Oracle InstantClient 10R2

any idea ?

Cheers

--
Olivier Boyaval

list Olivier Boyaval · Tue, 19 Sep 2006 09:59:56 +0200 ·

Hello,

    * /To/: <user-ae9b8668bcde@xymon.invalid>
    * /Subject/: RE: [hobbit] pb with hobbit-perl-client and dbcheck
    * /From/: "Francesco Duranti" <user-7104dcecbfef@xymon.invalid>
    * /Date/: Tue, 19 Sep 2006 00:04:57 +0200
    * /Thread-index/: AcbbXNjiyCoEBWDISL+6vz/9wLlMUwAD3t5g
    * /Thread-topic/: [hobbit] pb with hobbit-perl-client and dbcheck

▸ quoted from Francesco Duranti


I've not tested the dbcheck.pl with the InstantClient because I've a
full 10r2 client installed on the machine but checking on some mailing
list archive it seems that InstantClient and DBD::Oracle have some
problems working together....
One suggestion I've found was to set the  Oracle_home (in the
dbcheck.ini file) to the lib directory instead of the root into which
the instant client is installed (something like
/usr/lib/oracle/10.2.0.2/client/lib)...

With Instantclient, there's not lib directory, my ORACLE_HOME and my
LD_LIBRARY_PATH are OK

▸ quoted from Francesco Duranti

Another thing is to check that you have the following package installed
(took from the DBD:Oracle readme)
* The "Basic" package for the essential Oracle libraries.
* The "SDK" package for the headers and makefile.
* The "SQL*Plus" component is optional, but will help you check your
configuration and DBD::Oracle determine your Oracle version.

it's OK for this package

▸ quoted from Francesco Duranti

Then you can try to define the full hostname/port/sid/user/password in
the dbcheck.ini file under the db you want to configure (it should skip
the tnsnames.ora and go through to the db server). Or you can try to
define your db in a tnsnames.ora under $ORACLE_HOME/network/admin and
put only sid username and password in the dbconfiguration.

I tested with  bbcmd and sqlplus, I can connect with the database
I tested with bbcmd and the next perl script and I can also connect with
the database

----
use DBI;
$dbh = DBI->connect("dbi:Oracle:host=server;sid=SID;port=1521", "user",
"password");

▸ quoted from Francesco Duranti

----

What version of DBD::Oracle module are you using? Did it compile/test
successfully? Can you check if with sqlplus you can connect correctly to
that database?

 DBD::Oracle 1.18
I have detected a pb with the Makefile.PL of DBD :

Configuring DBD::Oracle for perl 5.008003 on linux
(x86_64-linux-thread-multi)

Remember to actually *READ* the README file! Especially if you have any
problems.

Using Oracle in /opt/instantclient
SP2-1503: Unable to initialize Oracle call interface
SP2-0152: ORACLE may not be functioning properly

            If sqlplus failed due to a linker/symbol/relocation/library
error or similar problem
            then it's likely that you've not configured your environment
correctly.
            Specifically, your LD_LIBRARY_PATH environment variable
            set to include the directory containing the Oracle libraries.

I'm having trouble finding your Oracle version number... trying harder

WARNING: I could not determine Oracle client version so I'll just
default to version 8.0.0.0. Some features of DBD::Oracle may not work.
Oracle version based logic in Makefile.PL may produce erroneous results.
You can use "perl Makefile.PL -V X.Y.Z" to specify a your client version.

Oracle version 8.0.0.0 (8.0)
Looks like an Instant Client installation, okay
Your LD_LIBRARY_PATH env var is set to '/opt/instantclient/'

I will test with "perl Makefile.PL -V 10.2.0"

Francesco

Cordialement
--
Olivier Boyaval

list Jason Altrincham Jones · Tue, 19 Sep 2006 10:16:46 +0100 ·

Hi,

If not already possible I was wondering if you could line up the
histories of the servers i.e.

Server1 [-------------!---------]
Server2 [--------------x--------]
Server3 [-----------------------]

(- = green, ! = yellow, x = red), it would be useful to see if a problem
on one server may have been caused by an error on another i.e. process
on one machine failed and so the other machine couldn't access the
database.

I know you can use the DEPENDS tag etc. but it would be useful to
identify where the DEPENDS tag could be used.

Just a thought :)
Jason.

list Francesco Duranti · Tue, 19 Sep 2006 12:39:11 +0200 ·

Some more information from the README of DBD::Oracle 1.18a

From: John Scoles <user-cfb62a7912b6@xymon.invalid>
Date: Fri, 29 Sep 2005 10:48:47 -0700 (EST)
Subject: RE: Oracle 10g Instantclient

The Makefile.PL will now work for  Oracle 10g Instantclient. To have
both the Compile and
the test.pl to work you must first have the LD_LIBRARY_PATH correctly
set to your "instantclient" directory.
(http://www.oracle.com/technology/tech/oci/instantclient/instantclient.h
tml) The present version of the make creates a link on your "instantclient"
directory as follows
"ln -s libclntsh.so.10.1 libclntsh.so". It is needed for both the
makefile creation and the compile but is not need for the test.pl. It should be removed after the compile.
If the Makefile.PL or make fails try creating this link directly in your
"instantclient" directory.

Hoping this could solve the problem...

▸ quoted from Olivier Boyaval

-----Original Message-----
From: Olivier Boyaval [mailto:user-f56ee5cec7be@xymon.invalid] Sent: Tuesday, September 19, 2006 10:00 AM
To: user-ae9b8668bcde@xymon.invalid
Subject: RE: [hobbit] pb with hobbit-perl-client and dbcheck

Hello,

    * /To/: <user-ae9b8668bcde@xymon.invalid>
    * /Subject/: RE: [hobbit] pb with hobbit-perl-client and dbcheck
    * /From/: "Francesco Duranti" <user-7104dcecbfef@xymon.invalid>
    * /Date/: Tue, 19 Sep 2006 00:04:57 +0200
    * /Thread-index/: AcbbXNjiyCoEBWDISL+6vz/9wLlMUwAD3t5g
    * /Thread-topic/: [hobbit] pb with hobbit-perl-client and dbcheck

-- I've not tested the dbcheck.pl with the InstantClient because I've > a full 10r2 client installed on the machine but checking on some > mailing list archive it seems that InstantClient and DBD::Oracle have > some problems working together....
One suggestion I've found was to set the  Oracle_home (in the > dbcheck.ini file) to the lib directory instead of the root into which > the instant client is installed (something like > /usr/lib/oracle/10.2.0.2/client/lib)...
  With Instantclient, there's not lib directory, my ORACLE_HOME and my LD_LIBRARY_PATH are OK
Another thing is to check that you have the following package > installed (took from the DBD:Oracle readme)
* The "Basic" package for the essential Oracle libraries.
* The "SDK" package for the headers and makefile.
* The "SQL*Plus" component is optional, but will help you check your > configuration and DBD::Oracle determine your Oracle version.
  it's OK for this package
Then you can try to define the full hostname/port/sid/user/password in > the dbcheck.ini file under the db you want to configure (it should > skip the tnsnames.ora and go through to the db server). Or you can try > to define your db in a tnsnames.ora under $ORACLE_HOME/network/admin > and put only sid username and password in the dbconfiguration.
  I tested with  bbcmd and sqlplus, I can connect with the database I tested with bbcmd and the next perl script and I can also connect with the database

----
use DBI;
$dbh = DBI->connect("dbi:Oracle:host=server;sid=SID;port=1521", "user", "password");
----

What version of DBD::Oracle module are you using? Did it compile/test > successfully? Can you check if with sqlplus you can connect correctly > to that database?
   DBD::Oracle 1.18

I have detected a pb with the Makefile.PL of DBD :

Configuring DBD::Oracle for perl 5.008003 on linux
(x86_64-linux-thread-multi)

Remember to actually *READ* the README file! Especially if you have any problems.

Using Oracle in /opt/instantclient
SP2-1503: Unable to initialize Oracle call interface
SP2-0152: ORACLE may not be functioning properly

            If sqlplus failed due to a linker/symbol/relocation/library error or similar problem
            then it's likely that you've not configured your environment correctly.
            Specifically, your LD_LIBRARY_PATH environment variable
            set to include the directory containing the Oracle libraries.

I'm having trouble finding your Oracle version number... trying harder

WARNING: I could not determine Oracle client version so I'll just default to version 8.0.0.0. Some features of DBD::Oracle may not work.
Oracle version based logic in Makefile.PL may produce erroneous results.
You can use "perl Makefile.PL -V X.Y.Z" to specify a your client version.

Oracle version 8.0.0.0 (8.0)
Looks like an Instant Client installation, okay Your LD_LIBRARY_PATH env var is set to '/opt/instantclient/'

I will test with "perl Makefile.PL -V 10.2.0"

Francesco

Cordialement
--
Olivier Boyaval

list Olivier Boyaval · Tue, 19 Sep 2006 12:56:12 +0200 ·

Hello,

▸ quoted from Francesco Duranti


Francesco Duranti a écrit :

Some more information from the README of DBD::Oracle 1.18a

From: John Scoles <user-cfb62a7912b6@xymon.invalid>
Date: Fri, 29 Sep 2005 10:48:47 -0700 (EST)
Subject: RE: Oracle 10g Instantclient

The Makefile.PL will now work for  Oracle 10g Instantclient. To have
both the Compile and
the test.pl to work you must first have the LD_LIBRARY_PATH correctly
set to your
"instantclient" directory.
(http://www.oracle.com/technology/tech/oci/instantclient/instantclient.h
tml)
The present version of the make creates a link on your "instantclient"
directory as follows
"ln -s libclntsh.so.10.1 libclntsh.so". It is needed for both the
makefile creation and the compile
but is not need for the test.pl. It should be removed after the compile.
If the Makefile.PL or make fails try creating this link directly in your
"instantclient" directory.

Hoping this could solve the problem...

I have recompiled the DBD:Oracle correctly and "make test" it's OK when
I set correctly the ORACLE_USERID variable.

LD_LIBRARY_PATH and ORACLE_HOME are correctly setting

In command "server\bin\bbcmd bash", I have verified this 2 variables and
made the "make test". the result is OK.

When I test with dbcheck.pl (in bbcmd) I have always the same error :

Tue Sep 19 12:41:37 2006:CALL : Hobbit_fd_lib::open_db_connection line 741
Tue Sep 19 12:41:37 2006:DEBUG: db_conn ERRCONNECT=ERROR
OCIEnvNlsCreate. Check ORACLE_HOME env var, NLS settings, permissions, etc.

I have added the print of perl variables before connecting to verify and
I have
$db = DBI:Oracle:host=server;port=1521;sid=SID

Olivier

--
Olivier Boyaval

list Olivier Boyaval · Tue, 03 Oct 2006 15:38:57 +0200 ·

Hello,

I have installed the full oracle client instead of the oracle instant
client and the hobbit perl client can be connected with the database. :-)

With the last version of the hobbit perl client, I have to set
LANG=en_EN:UTF-8 because I have some warning with conv_str_to_time function.

Cdl

Olivier

list Mike Rowell · Thu, 22 Feb 2007 12:20:19 -0000 ·

Quick Feature request


Service Intelligence


By that I mean, under certain circumstances allow services to go above
threshold levels..


So for example, if a process x is running on a database server allow CPU
to go above y


You could also say


If a reload process is happening on server x allow http to not alert


Just an idea that came to me while discussing batch job load on a
database server that one of our teams is using.  Where a specific batch
job could send the cpu load high and that is expected, but the batch job
isn't scheduled and is just run as and when.  But the control has to be
fairly fine grained to stop the server not alerting when there is an
issue.

Mike Rowell

Systems Team Leader

* Email: user-63f3e97eb1de@xymon.invalid
* Tel:   XXX XXXX XXXX
* Fax:  XXXX XXX XXXX

www.rightmove.co.uk <http://www.rightmove.co.uk/>;  - the UK's number 1
property website

This message (including any attachments) is confidential and may be
legally privileged. The content and views expressed are those of the
sender and not necessarily Rightmove plc. If you are not the intended
recipient, you must not disclose, copy or use any part of it. Please
delete all copies immediately and notify the sender. Rightmove plc is
registered in England and Wales, No. 03997679. Registered Office:
Rightmove plc, Grafton Court, Snowdon Drive, Milton Keynes, MK6 1AJ.

▸ quoted from Matthew Davis



This email has been scanned for all viruses by the MessageLabs service.

list Asif Iqbal · Thu, 8 Jan 2009 15:21:24 -0500 ·

Would be nice if client-local.cfg file can accept PAGE name instead of
just CLASS.

For hobbit-clients.cfg file I can just create rules using PAGE, as well as HOST.

For client-local.cfg file even from a group of host under a page or
subpage I need to add the CLASS tag.

Thanks

--
Asif Iqbal
PGP Key: 0xE62693C5 KeyServer: pgp.mit.edu

list Betsy Schwartz · Thu, 25 Oct 2012 09:29:09 -0400 ·

Email to the list from gmail is bouncing after two days
Email to user-cf9c18efd268@xymon.invalid<mailto:user-cf9c18efd268@xymon.invalid> is  bouncing immediately

Anyone else having trouble? I see list traffic is very light

From: Betsy Schwartz
Sent: Thursday, October 25, 2012 8:49 AM
To: 'user-cf9c18efd268@xymon.invalid'
Subject: List broken?

I'm in a really heavy period of xymon development (pushed by boss who comes from nagios-land) and my messages to the list are bouncing back after a couple days. Notice traffic is very light, maybe it's not just me! I hate to use my work address on public lists...

This is an automatically generated Delivery Status Notification

THIS IS A WARNING MESSAGE ONLY.

YOU DO NOT NEED TO RESEND YOUR MESSAGE.

Delivery to the following recipient has been delayed:

     xymon at xymon.com<mailto:xymon at xymon.com>

Message will be retried for 2 more day(s)

Technical details of temporary failure:
Google tried to deliver your message, but it was rejected by the recipient domain. We recommend contacting the other email provider for further information about the cause of this error. The error that the other server returned was: 451 451 4.7.1 Service unavailable - try again later (state 17).

----- Original message -----

DKIM-Signature: v=1; a=rsa-sha256; c=relaxed/relaxed;
        d=gmail.com<http://gmail.com>;; s=20120113;
        h=mime-version:reply-to:date:message-id:subject:from:to:content-type;
        bh=fq9T2uqAW4TBLXCIfpcWxYFLK9TygpB6Hr+0oPlhZSg=;
        b=X01I9J66DO68nL9JTDcjrQwkkoS9pRCry5t5ADASzUV7FplrNuCESEYjegsK+Q7WSH
         BKumdRJqnoYjdZleb0gbQS2v/RwP32FzWJrVJXoimXNFV2kt01KI+tTbyw0mD7p81RIr
         rNf3pHmHjt7k84RPdX/ES9Y/ILN4+Xxg2HyotKhDqOu8FxP2suiHBNSw4cUAH90Hz/sQ
         TOrA2wtkYEgvhB6uh0883qNXOmzevsHrKnR/BGzEBe3mJrxlPDeppkJkWP6cQGlrSz+B
         z6zFPaAPkfrbldRrNeYGVN5xwW50DaKdsq3WYJfOLegDrc6D/0vAEoKaPKBxeUldfnM6
         4LNA==
MIME-Version: 1.0
Received: by 10.50.169.100 with SMTP id ad4mr1175720igc.50.1351050047178; Tue,
 23 Oct 2012 20:40:47 -0700 (PDT)
Received: by 10.50.56.203 with HTTP; Tue, 23 Oct 2012 20:40:47 -0700 (PDT)
Reply-To: user-c61747246f66@xymon.invalid<mailto:user-c61747246f66@xymon.invalid>
Date: Tue, 23 Oct 2012 23:40:47 -0400
Message-ID: <CAAVLHR1odzuL0QqJ0-L=user-06b684f73689@xymon.invalid<mailto:user-06b684f73689@xymon.invalid>>
Subject: Keeping alerts.cfg organized?
From: Betsy Schwartz <user-c61747246f66@xymon.invalid<mailto:user-c61747246f66@xymon.invalid>>
To: xymon at xymon.com<mailto:xymon at xymon.com>
Content-Type: text/plain; charset=ISO-8859-1

The information contained in this electronic mail transmission is intended only for the use of the individual or entity named in this transmission. If you are not the intended recipient of this transmission, you are hereby notified that any disclosure, copying or distribution of the contents of this transmission is strictly prohibited and that you should delete the contents of this transmission from your system immediately. Any comments or statements contained in this transmission do not necessarily reflect the views or position of GSI Commerce, Inc. or its subsidiaries and/or affiliates.

list Josh Luthman · Thu, 25 Oct 2012 11:26:52 -0400 ·

Working for me.  Henrik doesn't have a d.
On Oct 25, 2012 6:29 AM, "Betsy Schwartz" <user-a78324411b37@xymon.invalid> wrote:

 Email to the list from gmail is bouncing after two days****

Email to user-cf9c18efd268@xymon.invalid is  bouncing immediately****

▸ quoted from Betsy Schwartz



Anyone else having trouble? I see list traffic is very light****

** **

*From:* Betsy Schwartz
*Sent:* Thursday, October 25, 2012 8:49 AM
*To:* 'user-cf9c18efd268@xymon.invalid'
*Subject:* List broken?****

** **

I’m in a really heavy period of xymon development (pushed by boss who
comes from nagios-land) and my messages to the list are bouncing back after
a couple days. Notice traffic is very light, maybe it’s not just me! I hate
to use my work address on public lists…****

** **

This is an automatically generated Delivery Status Notification

THIS IS A WARNING MESSAGE ONLY.

YOU DO NOT NEED TO RESEND YOUR MESSAGE.

Delivery to the following recipient has been delayed:


Message will be retried for 2 more day(s)

Technical details of temporary failure:
Google tried to deliver your message, but it was rejected by the recipient
domain. We recommend contacting the other email provider for further
information about the cause of this error. The error that the other server
returned was: 451 451 4.7.1 Service unavailable - try again later (state
17).

----- Original message -----

DKIM-Signature: v=1; a=rsa-sha256; c=relaxed/relaxed;


        d=gmail.com; s=20120113;

▸ quoted from Betsy Schwartz


h=mime-version:reply-to:date:message-id:subject:from:to:content-type;
        bh=fq9T2uqAW4TBLXCIfpcWxYFLK9TygpB6Hr+0oPlhZSg=;

b=X01I9J66DO68nL9JTDcjrQwkkoS9pRCry5t5ADASzUV7FplrNuCESEYjegsK+Q7WSH

 BKumdRJqnoYjdZleb0gbQS2v/RwP32FzWJrVJXoimXNFV2kt01KI+tTbyw0mD7p81RIr

 rNf3pHmHjt7k84RPdX/ES9Y/ILN4+Xxg2HyotKhDqOu8FxP2suiHBNSw4cUAH90Hz/sQ

 TOrA2wtkYEgvhB6uh0883qNXOmzevsHrKnR/BGzEBe3mJrxlPDeppkJkWP6cQGlrSz+B

 z6zFPaAPkfrbldRrNeYGVN5xwW50DaKdsq3WYJfOLegDrc6D/0vAEoKaPKBxeUldfnM6
         4LNA==
MIME-Version: 1.0
Received: by 10.50.169.100 with SMTP id ad4mr1175720igc.50.1351050047178;
Tue,
 23 Oct 2012 20:40:47 -0700 (PDT)
Received: by 10.50.56.203 with HTTP; Tue, 23 Oct 2012 20:40:47 -0700 (PDT)

Reply-To: user-c61747246f66@xymon.invalid
Date: Tue, 23 Oct 2012 23:40:47 -0400
Message-ID: <CAAVLHR1odzuL0QqJ0-L=
user-06b684f73689@xymon.invalid>
Subject: Keeping alerts.cfg organized?
From: Betsy Schwartz <user-c61747246f66@xymon.invalid>
To: xymon at xymon.com
Content-Type: text/plain; charset=ISO-8859-1****

[image: https://mail.google.com/mail/u/0/images/cleardot.gif]****

▸ quoted from Betsy Schwartz


** **

The information contained in this electronic mail transmission is intended
only for the use of the individual or entity named in this transmission. If
you are not the intended recipient of this transmission, you are hereby
notified that any disclosure, copying or distribution of the contents of
this transmission is strictly prohibited and that you should delete the
contents of this transmission from your system immediately. Any comments or
statements contained in this transmission do not necessarily reflect the
views or position of GSI Commerce, Inc. or its subsidiaries and/or
affiliates.

list Henrik Størner · Sat, 27 Oct 2012 17:56:06 +0200 ·

▸ quoted from Betsy Schwartz

On 25-10-2012 15:29, Betsy Schwartz wrote:

Email to the list from gmail is bouncing after two days

Seems to be a problem with my DKIM milter. Here's the mailserver log for this mail:

Oct 24 05:40:49 bach postfix/cleanup[6477]: 0C915C1376: message-id=<CAAVLHR1odzuL0QqJ0-L=user-06b684f73689@xymon.invalid>
Oct 24 05:40:49 bach dkim-filter[2212]: 0C915C1376: dkim_eoh():internal error from libdkim: ar_addquery() for `20120113._domainkey.gmail.com' failed

Google'ing that error-message indicates that I should switch my DKIM validator to opendkim instead of dkim-milter ... will have a a look at it tomorrow.


Regards,
Henrik

list Henrik Størner · Mon, 29 Oct 2012 14:55:39 +0100 ·

▸ quoted from Henrik Størner

On Sat, 27 Oct 2012 17:56:06 +0200, Henrik Størner <user-ce4a2c883f75@xymon.invalid> wrote:

On 25-10-2012 15:29, Betsy Schwartz wrote:

Email to the list from gmail is bouncing after two days

Seems to be a problem with my DKIM milter. [...] I should switch my DKIM

validator to opendkim instead of dkim-milter

Just a quick heads-up that the mailserver config was fixed Sunday; the
broken DKIM mailfilter was disabled. I noticed a handful of older messages
to the list made it through yesterday, apparently being resent by their
mailservers.


Regards,
Henrik

list Massimo Morsiani · Mon, 29 Oct 2012 14:18:59 +0000 ·

Hi all,

is there any project/roadmap to implement a HTML5 GUI with a browsable host tree ?


Regards.

Massimo Morsiani Information Technology Dept. ------ Gilbarco S.r.l. via de' Cattani, 220/G 50145 Firenze, Italy tel:    +39-055-30941 fax:    +39-055-318603 email:  user-32025d8bd22e@xymon.invalid web:    http://www.gilbarco.it

 Please consider the environment before printing this e-mail


Please be advised that this email may contain confidential information.  If you are not the intended recipient, please notify us by email by replying to the sender and delete this message.  The sender disclaims that the content of this email constitutes an offer to enter into, or the acceptance of, any agreement; provided that the foregoing does not invalidate the binding effect of any digital or other electronic reproduction of a manual signature that is included in any attachment.

list Henrik Størner · Mon, 29 Oct 2012 15:26:16 +0100 ·

Hi,

On Mon, 29 Oct 2012 14:18:59 +0000, "Morsiani, Massimo"

▸ quoted from Massimo Morsiani

<user-32025d8bd22e@xymon.invalid> wrote:

is there any project/roadmap to implement a HTML5 GUI with a browsable
host tree ?

short answer is "no".

The longer answer is that although several people over the years have
discussed building a more modern web interface, noone has yet begun
designing or implementing such a UI.

And since I have very little experience with web design and HTML coding, I
haven't attempted to do it myself.


Regards,
Henrik

list Shannon Anderson · Tue, 30 Oct 2012 21:24:07 +0000 ·

Funny you ask, from the creator of BBWin GUI comes MAGMA (A XYMON System for the text fileless user)


I just happen to be creating that very thing.


I will be releasing it as full VM appliance instead of a download and install to help save config time.


The appliance has a CENTOS 5 LINUX, XYMON, MYSQL, PHP all preinstalled and ready to start using, just add your hosts and select the external tests you want to apply, log types to monitor, and set all thresholds for Memory, cpu, disk, procs, ports and services strait from a web GUI. I also changed up the look of the interface. The agents should be in "central" mode.


I been testing it on IPAD to make sure all menus and functions work on handhelds.


I am beta testing it now so people can expect a release in 30 day or so. If interested shot me an email and I will send you mail when released.


This may not be for the hardened XYMon user who likes the granulator of text file configs but for the other 98% of the admins out there this would be a perfect interface to XYMON clients.


Some screenshots:

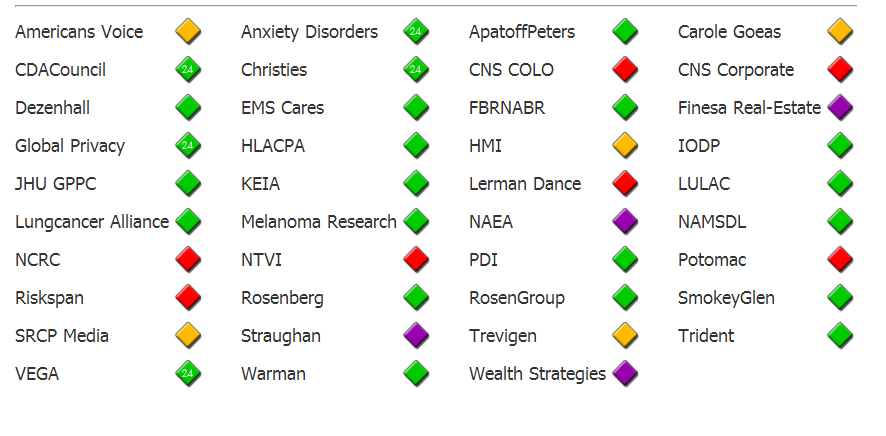

Main View

[cid:image001.png at 01CDB6C2.1A273460]

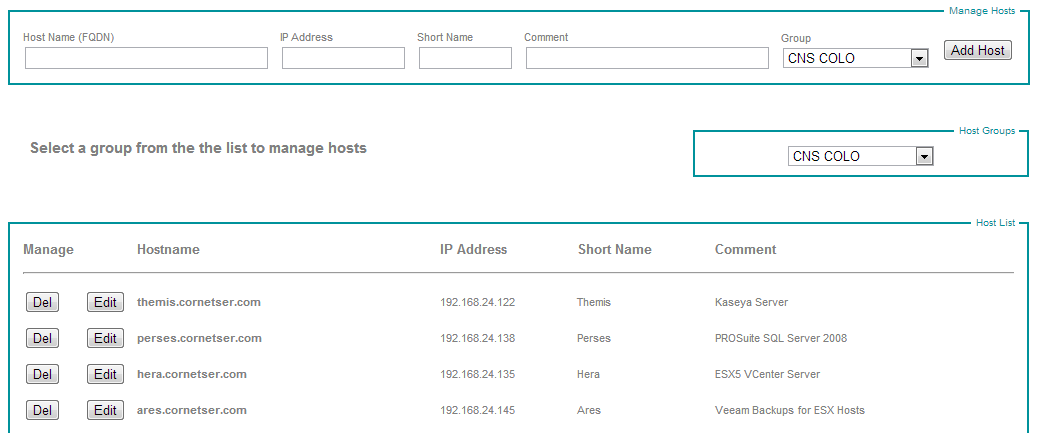

Edit Hosts


[cid:image002.png at 01CDB6C2.1A273460]

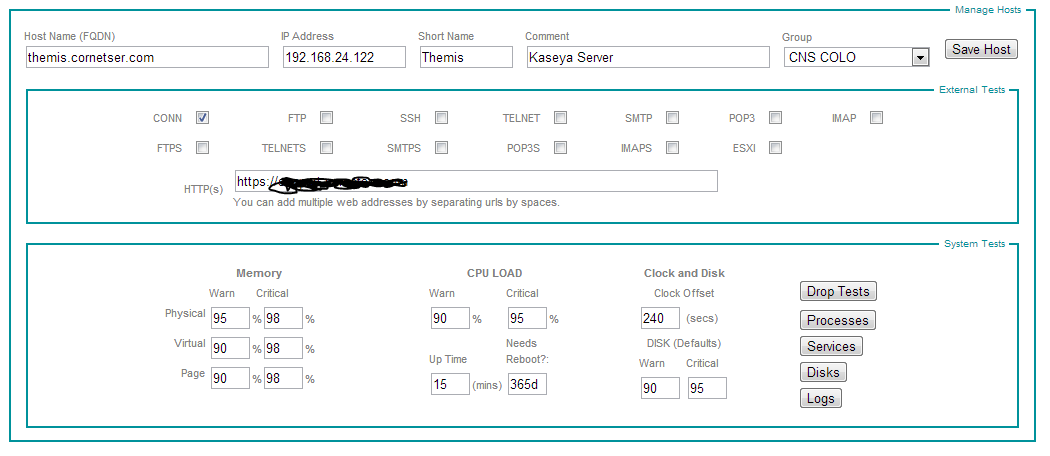

Edit host tests

[cid:image003.png at 01CDB6C2.95251B00]

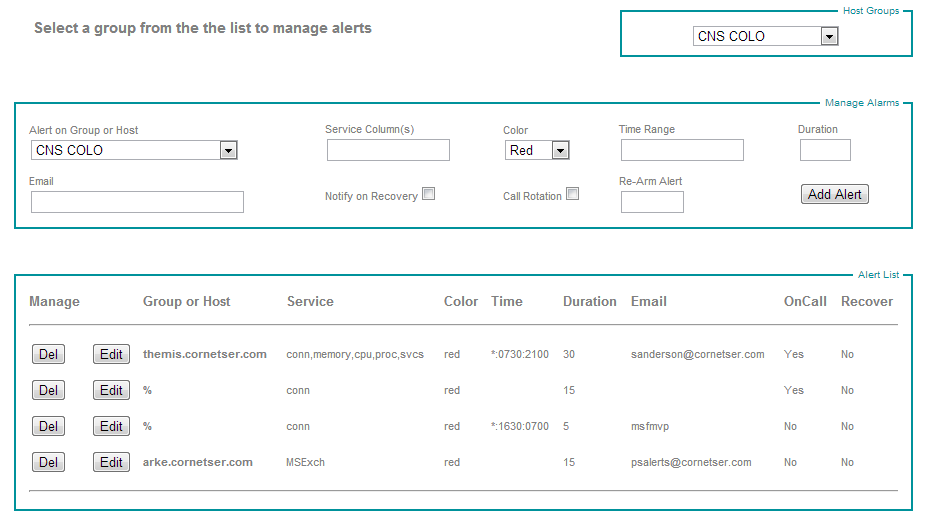

Set alerts

[cid:image004.png at 01CDB6C3.26146080]

▸ quoted from Massimo Morsiani



-----Original Message-----
From: xymon-bounces at xymon.com [mailto:xymon-bounces at xymon.com] On Behalf Of Morsiani, Massimo
Sent: Monday, October 29, 2012 10:19 AM
To: xymon at xymon.com
Subject: [Xymon] Feature request


Hi all,


is there any project/roadmap to implement a HTML5 GUI with a browsable host tree ?


Regards.


Massimo Morsiani

Information Technology Dept.


Gilbarco S.r.l.

via de' Cattani, 220/G

50145 Firenze, Italy


tel:    +XX-XXX-XXXXX

fax:    +XX-XXX-XXXXXX

email:  user-32025d8bd22e@xymon.invalid<mailto:user-32025d8bd22e@xymon.invalid>

web:    http://www.gilbarco.it


ü Please consider the environment before printing this e-mail

▸ quoted from Massimo Morsiani



Please be advised that this email may contain confidential information.  If you are not the intended recipient, please notify us by email by replying to the sender and delete this message.  The sender disclaims that the content of this email constitutes an offer to enter into, or the acceptance of, any agreement; provided that the foregoing does not invalidate the binding effect of any digital or other electronic reproduction of a manual signature that is included in any attachment.

Attachments (4)

attachment.png image/png · 56.6 KB
attachment-0001.png image/png · 29.6 KB
attachment-0002.png image/png · 36.6 KB
attachment-0003.png image/png · 31.7 KB

list Galen Johnson · Wed, 31 Oct 2012 12:35:07 +0000 ·

I actually spoke to a coworker yesterday about this very subject.  She teaches an online web design class and is always looking for student projects.  This semester is winding down but she said she is going to keep this in mind as an option for students next semester (January) that are looking for a project and would like to be able to point to a real-world example in their portfolio.  No one would be under any obligation to adopt it.  I thought it might help fill a need in Xymon that has been requested many times and give us the possibility to have a "themes" page added to the Xymonton site.

=G=

▸ quoted from Henrik Størner


From: xymon-bounces at xymon.com [xymon-bounces at xymon.com] on behalf of user-ce4a2c883f75@xymon.invalid [user-ce4a2c883f75@xymon.invalid]
Sent: Monday, October 29, 2012 10:26 AM
To: xymon at xymon.com
Subject: Re: [Xymon] Feature request

Hi,

On Mon, 29 Oct 2012 14:18:59 +0000, "Morsiani, Massimo"
<user-32025d8bd22e@xymon.invalid> wrote:

is there any project/roadmap to implement a HTML5 GUI with a browsable
host tree ?

short answer is "no".

The longer answer is that although several people over the years have
discussed building a more modern web interface, noone has yet begun
designing or implementing such a UI.

And since I have very little experience with web design and HTML coding, I
haven't attempted to do it myself.


Regards,
Henrik

list Ray Reuter · Wed, 31 Oct 2012 09:36:16 -0400 ·

I would be interested in seeing this and trying an implementation of it for
testing.

▸ quoted from Galen Johnson



On Wed, Oct 31, 2012 at 8:35 AM, Galen Johnson <user-87f955643e3d@xymon.invalid>wrote:

I actually spoke to a coworker yesterday about this very subject.  She
teaches an online web design class and is always looking for student
projects.  This semester is winding down but she said she is going to keep
this in mind as an option for students next semester (January) that are
looking for a project and would like to be able to point to a real-world
example in their portfolio.  No one would be under any obligation to adopt
it.  I thought it might help fill a need in Xymon that has been requested
many times and give us the possibility to have a "themes" page added to the
Xymonton site.

=G=

From: xymon-bounces at xymon.com [xymon-bounces at xymon.com] on behalf of
user-ce4a2c883f75@xymon.invalid [user-ce4a2c883f75@xymon.invalid]
Sent: Monday, October 29, 2012 10:26 AM
To: xymon at xymon.com
Subject: Re: [Xymon] Feature request

Hi,

On Mon, 29 Oct 2012 14:18:59 +0000, "Morsiani, Massimo"
<user-32025d8bd22e@xymon.invalid> wrote:

is there any project/roadmap to implement a HTML5 GUI with a browsable
host tree ?

short answer is "no".

The longer answer is that although several people over the years have
discussed building a more modern web interface, noone has yet begun
designing or implementing such a UI.

And since I have very little experience with web design and HTML coding, I
haven't attempted to do it myself.


Regards,
Henrik

list Larry Barber · Wed, 31 Oct 2012 09:06:12 -0500 ·

Looks good. Any chance of getting it released as a tar file or rpm? I'm
afraid our security organization wouldn't like an "off" brand of Linux in
our data center. I would much rather be able to install it on a system that
already meets our security standards.

Thanks,
Larry Barber

▸ quoted from Ray Reuter


On Wed, Oct 31, 2012 at 8:36 AM, Ray Reuter <user-9df4e3e828ec@xymon.invalid> wrote:

I would be interested in seeing this and trying an implementation of it
for testing.


On Wed, Oct 31, 2012 at 8:35 AM, Galen Johnson <user-87f955643e3d@xymon.invalid>wrote:

I actually spoke to a coworker yesterday about this very subject.  She
teaches an online web design class and is always looking for student
projects.  This semester is winding down but she said she is going to keep
this in mind as an option for students next semester (January) that are
looking for a project and would like to be able to point to a real-world
example in their portfolio.  No one would be under any obligation to adopt
it.  I thought it might help fill a need in Xymon that has been requested
many times and give us the possibility to have a "themes" page added to the
Xymonton site.

=G=

From: xymon-bounces at xymon.com [xymon-bounces at xymon.com] on behalf of
user-ce4a2c883f75@xymon.invalid [user-ce4a2c883f75@xymon.invalid]
Sent: Monday, October 29, 2012 10:26 AM
To: xymon at xymon.com
Subject: Re: [Xymon] Feature request

Hi,

On Mon, 29 Oct 2012 14:18:59 +0000, "Morsiani, Massimo"
<user-32025d8bd22e@xymon.invalid> wrote:

is there any project/roadmap to implement a HTML5 GUI with a browsable
host tree ?

short answer is "no".

The longer answer is that although several people over the years have
discussed building a more modern web interface, noone has yet begun
designing or implementing such a UI.

And since I have very little experience with web design and HTML coding, I
haven't attempted to do it myself.


Regards,
Henrik

list Shannon Anderson · Wed, 31 Oct 2012 15:28:37 +0000 ·

I could package it up as a tarball, I had to hack up some of the Web and LIB C code in the source used to generate the CGIs in the bin dir to affect my look and feel. This makes it hard to version against and new updates that may come out.

But if you want to keep your current look then the actual code that manages the Hosts, Analysis and Alerts will work on any version of XYMon and would not be affected by updates.

So I guess I need to create a side project to package up the "XYmon admin" outside of the new look and feel that I have created.

There is several new pieces I am included in the Appliance version that adds extra value to XYmon,

First being extra access security where you can use Web admin to add and remove users who have access to views, configs, reports and alarms.

#2 it comes with "247OnCall" my own make of a call rotation manager and PBX integration for alarms that will now call you and run you through a IVR for responses for alarms. This is also integrated in to the Alarms config area of the web manager.

I understand not all users of XYmon would have a compatible PBX to use so we are going to build Asterisk into the appliance with a simple web GUI to allow you to setup a VOIP account on it and then the 247OnCall processes will be able to use the internal PBX to make calls through thus making a nice closed system for your monitoring needs.

My hats off to Henrik for making such a flexible and useful application!!

Shannon Anderson
www.squidworks.net<http://www.squidworks.net>;

▸ quoted from Larry Barber

From: xymon-bounces at xymon.com [mailto:xymon-bounces at xymon.com] On Behalf Of Larry Barber
Sent: Wednesday, October 31, 2012 10:06 AM
To: Ray Reuter
Cc: xymon at xymon.com
Subject: Re: [Xymon] Feature request

Looks good. Any chance of getting it released as a tar file or rpm? I'm afraid our security organization wouldn't like an "off" brand of Linux in our data center. I would much rather be able to install it on a system that already meets our security standards.

Thanks,
Larry Barber
On Wed, Oct 31, 2012 at 8:36 AM, Ray Reuter <user-9df4e3e828ec@xymon.invalid<mailto:user-9df4e3e828ec@xymon.invalid>> wrote:
I would be interested in seeing this and trying an implementation of it for testing.

On Wed, Oct 31, 2012 at 8:35 AM, Galen Johnson <user-87f955643e3d@xymon.invalid<mailto:user-87f955643e3d@xymon.invalid>> wrote:
I actually spoke to a coworker yesterday about this very subject.  She teaches an online web design class and is always looking for student projects.  This semester is winding down but she said she is going to keep this in mind as an option for students next semester (January) that are looking for a project and would like to be able to point to a real-world example in their portfolio.  No one would be under any obligation to adopt it.  I thought it might help fill a need in Xymon that has been requested many times and give us the possibility to have a "themes" page added to the Xymonton site.

=G=

From: xymon-bounces at xymon.com<mailto:xymon-bounces at xymon.com> [xymon-bounces at xymon.com<mailto:xymon-bounces at xymon.com>] on behalf of user-ce4a2c883f75@xymon.invalid<mailto:user-ce4a2c883f75@xymon.invalid> [user-ce4a2c883f75@xymon.invalid<mailto:user-ce4a2c883f75@xymon.invalid>]
Sent: Monday, October 29, 2012 10:26 AM
To: xymon at xymon.com<mailto:xymon at xymon.com>
Subject: Re: [Xymon] Feature request

Hi,

On Mon, 29 Oct 2012 14:18:59 +0000, "Morsiani, Massimo"
<user-32025d8bd22e@xymon.invalid<mailto:user-32025d8bd22e@xymon.invalid>> wrote:

is there any project/roadmap to implement a HTML5 GUI with a browsable
host tree ?

short answer is "no".

The longer answer is that although several people over the years have
discussed building a more modern web interface, noone has yet begun
designing or implementing such a UI.

And since I have very little experience with web design and HTML coding, I
haven't attempted to do it myself.


Regards,
Henrik

list Vernon Everett · Tue, 26 Aug 2014 08:43:08 +0800 ·

Hi Henrik

The NCV feature in Xymon is fantastic, and I love it.
It's a quick and easy way to populate a graph with data.
My problem with it, is it sometimes works too well.
Sometimes, we have output that contains : or = that's not part of the
graphing data, and if you are using SPLIT_NCV, it dutifully tries to graph
this information, often with woeful results.
I am looking for a feature that we can use to tag a line as "NCV leave this
alone!"
Perhaps a string of hidden characters at the end of a line, or even a
string of visible characters, which the display process can strip out.

Regards
Vernon


--
"Accept the challenges so that you can feel the exhilaration of victory"
- General George Patton

list Jeremy Laidman · Tue, 26 Aug 2014 12:09:33 +1000 ·

Alternatively, a method to mark a section as NCV data, so that other
extraneous data are not misinterpreted.  Could be escaped in markup to
avoid being rendered, like so:

last update at 10:43:16
<!--
---NCV-BEGIN---
-->
apples: 3
oranges: 7
<!--
---NCV-END---
-->
date of update: 2014/4/1

▸ quoted from Vernon Everett



On 26 August 2014 10:43, Vernon Everett <user-b3f8dacb72c8@xymon.invalid> wrote:

Hi Henrik

The NCV feature in Xymon is fantastic, and I love it.
It's a quick and easy way to populate a graph with data.
My problem with it, is it sometimes works too well.
Sometimes, we have output that contains : or = that's not part of the
graphing data, and if you are using SPLIT_NCV, it dutifully tries to graph
this information, often with woeful results.
I am looking for a feature that we can use to tag a line as "NCV leave
this alone!"
Perhaps a string of hidden characters at the end of a line, or even a
string of visible characters, which the display process can strip out.

Regards
Vernon


--
"Accept the challenges so that you can feel the exhilaration of victory"
- General George Patton

list Richard Hamilton · Tue, 26 Aug 2014 16:28:07 -0400 ·

One of my scripts had something like

OUTPUT="$(echo "${OUTPUT}"|sed -e 's/:/\&colon;/g')"
to convert all the colons I wanted to hide to the corresponding entity
name, which wouldn't cause that problem.  (OUTPUT would be concatenated
with the graphing data later in the script)
Replacing = too would just mean adding to the sed command:
-e 's/=/\&#61;/g'


On Mon, Aug 25, 2014 at 8:43 PM, Vernon Everett <user-b3f8dacb72c8@xymon.invalid>

▸ quoted from Jeremy Laidman

wrote:

Hi Henrik

The NCV feature in Xymon is fantastic, and I love it.
It's a quick and easy way to populate a graph with data.
My problem with it, is it sometimes works too well.
Sometimes, we have output that contains : or = that's not part of the
graphing data, and if you are using SPLIT_NCV, it dutifully tries to graph
this information, often with woeful results.
I am looking for a feature that we can use to tag a line as "NCV leave
this alone!"
Perhaps a string of hidden characters at the end of a line, or even a
string of visible characters, which the display process can strip out.

Regards
Vernon


--
"Accept the challenges so that you can feel the exhilaration of victory"
- General George Patton

list Norbert Kriegenburg · Wed, 27 Aug 2014 09:25:09 +0200 ·

I also like the ease of use of the NCV feature.
Most of the times I hand over the values as hidden html comment in my test
page:

<!-- Begin Xymon NCV section
name1:value1
name2:value2
end Xymon NCV section -->

Then I'm able to separate the more verbose human readable test output from
the NCV name value pairs.
This works like a charm, but sometimes Xymon gets confused if there are ":"
or "=" in the text output (like in date strings...).

What I would suggest is to extend the NCV feature to only grab such lines
with a special keyword like this:

name1:value1 NCVDATA
or
name1:value1 <!-- NCVDATA -->

Then Xymon need only to look for lines with the keyword NCVDATA.
(or maybe it is easier to create a second NCV type to keep backwards
compatability).

Norbert


From:	Richard Hamilton <user-af55987f6d56@xymon.invalid>
To:	Vernon Everett <user-b3f8dacb72c8@xymon.invalid>
Cc:	Xymon mailinglist <xymon at xymon.com>
Date:	26/08/2014 22:28
Subject:	Re: [Xymon] Feature Request
Sent by:	"Xymon" <xymon-bounces at xymon.com>

▸ quoted from Richard Hamilton



One of my scripts had something like

OUTPUT="$(echo "${OUTPUT}"|sed -e 's/:/\&colon;/g')"
to convert all the colons I wanted to hide to the corresponding entity
name, which wouldn't cause that problem.  (OUTPUT would be concatenated
with the graphing data later in the script)
Replacing = too would just mean adding to the sed command:
-e 's/=/\&#61;/g'


On Mon, Aug 25, 2014 at 8:43 PM, Vernon Everett <user-b3f8dacb72c8@xymon.invalid>
wrote:
  Hi Henrik

  The NCV feature in Xymon is fantastic, and I love it.
  It's a quick and easy way to populate a graph with data.
  My problem with it, is it sometimes works too well.
  Sometimes, we have output that contains : or = that's not part of the
  graphing data, and if you are using SPLIT_NCV, it dutifully tries to
  graph this information, often with woeful results.
  I am looking for a feature that we can use to tag a line as "NCV leave
  this alone!"
  Perhaps a string of hidden characters at the end of a line, or even a
  string of visible characters, which the display process can strip out.

  Regards
  Vernon


  --
  "Accept the challenges so that you can feel the exhilaration of victory"
  - General George Patton

list W.J.M. Nelis · Wed, 27 Aug 2014 10:10:17 +0200 ·

▸ quoted from Norbert Kriegenburg

I also like the ease of use of the NCV feature.
Most of the times I hand over the values as hidden html comment in my test
page:

<!-- Begin Xymon NCV section
name1:value1
name2:value2
end Xymon NCV section -->

Perhaps it is good to mention an alternative for NCV, which is the DEVMON
format. For example, if a status message contains the following snippet:

<!--DEVMON RRD: NameA 0 0
DS:DsA:GAUGE:600:0:U DS:DsB:GAUGE:600:0:U
NameB ValueA:ValueB
-->

xymon will create an RRD named NameA.NameB.rrd containing two DS's. I use
it often in stead of NCV.

▸ quoted from Norbert Kriegenburg

On Mon, Aug 25, 2014 at 8:43 PM, Vernon Everett <user-b3f8dacb72c8@xymon.invalid>
wrote:
   Hi Henrik

   The NCV feature in Xymon is fantastic, and I love it.
   It's a quick and easy way to populate a graph with data.
   My problem with it, is it sometimes works too well.
   Sometimes, we have output that contains : or = that's not part of the
   graphing data, and if you are using SPLIT_NCV, it dutifully tries to
   graph this information, often with woeful results.
   I am looking for a feature that we can use to tag a line as "NCV leave
   this alone!"
   Perhaps a string of hidden characters at the end of a line, or even a
   string of visible characters, which the display process can strip out.

Regards,


   Wim Nelis.


******************************************************************************************************************

The NLR disclaimer is valid for NLR e-mail messages.

This message is only meant for providing information. Nothing in this e-mail message amounts to a contractual
or legal commitment on the part of the sender.
This message may contain information that is not intended for you. If you are not the addressee or if this
message was sent to you by mistake, you are requested to inform the sender and delete the message.
Sender accepts no liability for damage of any kind resulting from the risks inherent in the electronic
transmission of messages.

******************************************************************************************************************

list Stef Coene · Sat, 12 Mar 2022 15:06:21 +0100 ·

Hi,

It should be very handy if there is an hosts-options.cfg file that can be used to specify device specific options that normally goes in the hosts.cfg file.

Has anyone started on a patch to separate the page layout and the possible options per device?
Is this something that other people can use as well?

Some examples:

- Monitor the ssh daemon on all Linux devices:
CLASS=Linux
   sshd

- Monitor the https website on the load balancers (name start with lb):
HOST=%^lb
    https://<BBHOSTNAME>;
-> <BBHOSTNAME> will be replaced per device by the device name


Stef

list Damien Martins · Fri, 18 Mar 2022 19:14:12 +0100 ·

Hi Stef,

You something like the client-local.cfg, but for more purposes?

Le 12/03/2022 ? 15:06, Stef Coene a ?crit?:

▸ quoted from Stef Coene

Hi,

It should be very handy if there is an hosts-options.cfg file that can be used to specify device specific options that normally goes in the hosts.cfg file.

Has anyone started on a patch to separate the page layout and the possible options per device?
Is this something that other people can use as well?

Some examples:

- Monitor the ssh daemon on all Linux devices:
CLASS=Linux
? sshd

- Monitor the https website on the load balancers (name start with lb):
HOST=%^lb
?? https://<BBHOSTNAME>;
-> <BBHOSTNAME> will be replaced per device by the device name


Stef

list Stef Coene · Wed, 23 Mar 2022 09:01:54 +0100 ·

Hi,

With a syntax more like the analysis.cfg file where you can define rules and hosts.cfg text.

When a rule matches, it just appends the text to the hosts.cfg file.

For example, we have some TRENDS settings that we set on each Linux host and another one on each AIX host. This changes the graphs displayed on the trends page.
It should be handy to just specify this ones with a CLASS rule so each Linux / AIX gets the same TRENDS setting.


Stef

▸ quoted from Damien Martins


On 2022-03-18 19:14, Damien Martins wrote:

Hi Stef,

You something like the client-local.cfg, but for more purposes?

Le 12/03/2022 ? 15:06, Stef Coene a ?crit?:

Hi,

It should be very handy if there is an hosts-options.cfg file that can be used to specify device specific options that normally goes in the hosts.cfg file.

Has anyone started on a patch to separate the page layout and the possible options per device?
Is this something that other people can use as well?

Some examples:

- Monitor the ssh daemon on all Linux devices:
CLASS=Linux
? sshd

- Monitor the https website on the load balancers (name start with lb):
HOST=%^lb
?? https://<BBHOSTNAME>;
-> <BBHOSTNAME> will be replaced per device by the device name


Stef

Feature request 🔗 link

Feature request
