RRD data points - still struggling with RRD and graph distortion 🔗 link

Hi All,

I'm still struggling with RRD, and how Xymon / Hobbit uses it to graph.
I've modified /hobbitd/do_rrd.c where each RRD has 2304 datapoints (and make / make install / restart hobbit).

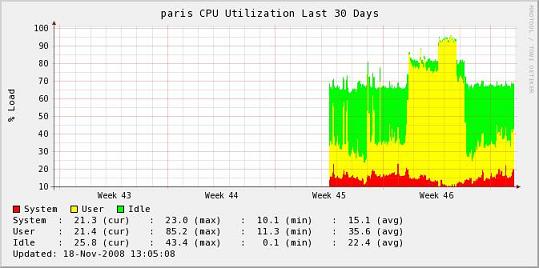

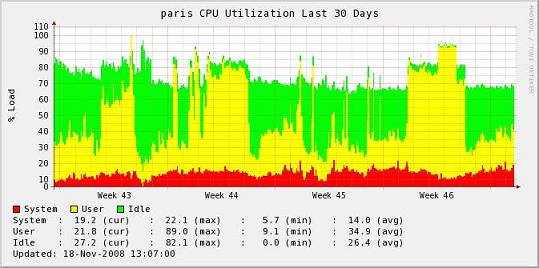

I've also used  rrdtool resize vmstat.rrd 1 GROW 1728 (then copy the resize.rrd file back over vmstat.rrd) to match the datpoints.  However, my graphs don't show up correctly.  They get truncated like in the attached .jpg files.

Can anyone help an RRD thick-head get me over the hump?  Thanks!

Mike Wood
UNIX System Administrator
Kinetic Concepts Inc.
5751 NW Parkway
San Antonio, TX, 78249


-----Original Message-----
From: Stef Coene [mailto:user-dbffe946c0f4@xymon.invalid]
Sent: Monday, November 10, 2008 4:15 PM
To: user-ae9b8668bcde@xymon.invalid
Subject: Re: [hobbit] FW: RRD data points - need help with graph distortion

On Monday 10 November 2008, Wood, Mike wrote:

Looks like my graphs didn't come through on the E-mail.  Trying different
attachment type...


From: Wood, Mike [mailto:user-ca9fdeef37c9@xymon.invalid]
Sent: Monday, November 10, 2008 9:06 AM
To: user-ae9b8668bcde@xymon.invalid
Subject: [hobbit] FW: RRD data points - need help with graph distortion

Hi All,

I asked this question last week, but maybe I wasn't clear enough as to what
I was asking... -
Management wants to avoid graph distortion on my 60 day CPU Util graph if
possible.  I think that more datapoints would address the problem. The
first graph looks good (30 day graph).  The 2nd one distorts what is really
going on (60 day graph - same server).  Is there any way to make the 2nd
graph more granular?  Thanks for looking! -

I have a perl script to update all the rrd files:

- it uses rrdtool resize <rrd file> GROW to add extra datapoints so the rrd
has 5760 data points / rra (per default it has 756 data points)

- it adds also MAX and MIN rra's, this is more tricky because I export the rrd
to xml, change the xml info and revert back to an rrd file.

Unfortunatly, I can not share this script.  But with
use RRDs ;
use File::Find ();
you can get info about the file and find them ;)


Stef


*****************************************************************************
