Help needed on Graphs

3 messages in this thread

list Jasbir Saharan · Wed, 3 Jun 2015 18:40:47 -0700 ·
Hi,

I need some help on graph issues. I am using the latest version 4.3.21 . I
can see all the data on xymon status page and see few links for graph as
well.. but if I click on anyone of them. I get an error:

"Unknown graph requested"


Please let me know if you need any infomration to troubleshoot this.


I have already added this line to cgioptions.cfg

CGI_SVC_OPTS="--env=/opt/monitor/xymon/server/etc/xymonserver.cfg --no-svcid
--history=top
--multigraphs=disk,inode,qtree,quotas,snapshot,TblSpace,if_load"

Thanks & Regards

Jasbir Saharan

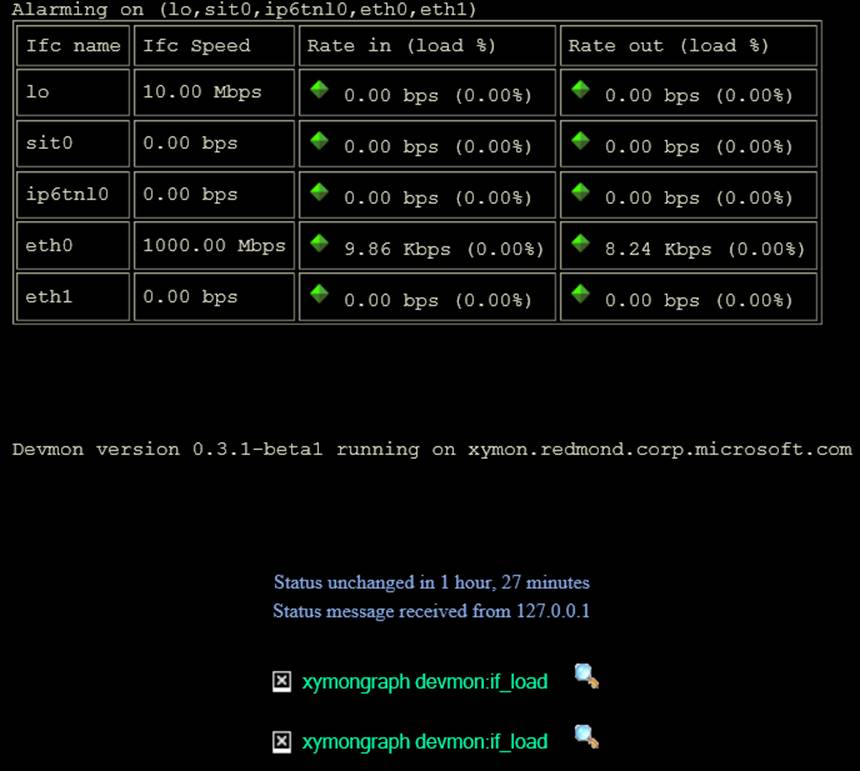

Attachments (1)
list W.J.M. Nelis · Thu, 04 Jun 2015 08:00:52 +0200 ·
▸ quoted from Jasbir Saharan
Hi,

I need some help on graph issues. I am using the latest version 4.3.21 . I can see all the data on xymon status page and see few links for graph as well.. but if I click on anyone of them. I get an error:

“Unknown graph requested”

Is there a graph definition named "if_load" in file ~xymon/server/etc/graphs.cfg?

Adding if_load to CGI_SVC_OPTS is not necessary.

Regards,
   Wim Nelis.
list Jasbir Saharan · Thu, 4 Jun 2015 12:48:36 -0700 ·
Hi,

I need some help on graph issues. I am using the latest version 4.3.21 . I
can see all the data on xymon status page and see few links for graph as
well.. but if I click on anyone of them. I get an error:

"Unknown graph requested"


Please let me know if you need any infomration to troubleshoot this.


I have already added this line to cgioptions.cfg

CGI_SVC_OPTS="--env=/opt/monitor/xymon/server/etc/xymonserver.cfg --no-svcid
--history=top
--multigraphs=disk,inode,qtree,quotas,snapshot,TblSpace,if_load"

Thanks & Regards

Jasbir Saharan
