Graph colors 🔗 link

Is it possible to have a custom graph display different colors based on the value and if so can someone help show how?

For example if the value of the graph is
0-80 then color = yellow
81-100 then color = green

TIA
Steve

Yes you can, but only for a single graph (not multi-graphs like disks).
You can't do calculations to adjust the graph COLOR value, but you can draw
more than one graph so that one hides the other and gives the impression of
changing colours.

Example 1:

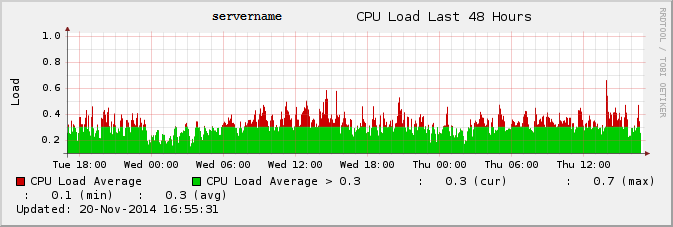

[image: Inline images 1]

This is the config I used, based on the standard [la] definition:

[la]
        TITLE CPU Load
        YAXIS Load
        DEF:avg=la.rrd:la:AVERAGE
        CDEF:la=avg,100,/
        CDEF:la_lo=la,0.3,MIN
        AREA:la#CC0000:CPU Load Average
        AREA:la_lo#00CC00:CPU Load Average > 0.3
        -u 1.0
        GPRINT:la:LAST: \: %5.1lf (cur)
        GPRINT:la:MAX: \: %5.1lf (max)
        GPRINT:la:MIN: \: %5.1lf (min)
        GPRINT:la:AVERAGE: \: %5.1lf (avg)\n

What's happening here is that I draw two AREA graphs, the first one showing
the normal graph in red, and the second one (which goes in front of the
first) with a cap of 0.3 (using "MIN").  So you can see the reds peeking
out above the greens.

Example 2:

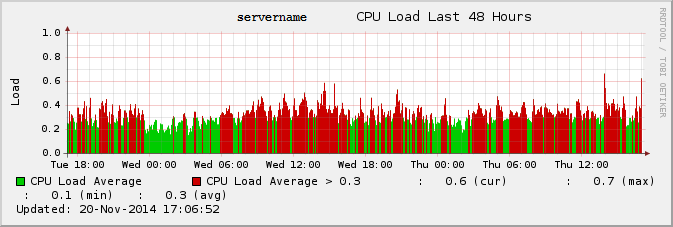

[image: Inline images 2]

This is the config I used:

[la]
        TITLE CPU Load
        YAXIS Load
        DEF:avg=la.rrd:la:AVERAGE
        CDEF:la=avg,100,/
        CDEF:la_hi=la,0.3,LT,0,la,IF
        AREA:la#00CC00:CPU Load Average
        AREA:la_hi#CC0000:CPU Load Average > 0.3
        -u 1.0
        GPRINT:la:LAST: \: %5.1lf (cur)
        GPRINT:la:MAX: \: %5.1lf (max)
        GPRINT:la:MIN: \: %5.1lf (min)
        GPRINT:la:AVERAGE: \: %5.1lf (avg)\n


What's going on here is that I define a new variable "la_hi" which is set
to the value of "la", but is then set to zero if it's less than than the
threshold - in other words, untouched only if it equals or exceeds the
threshold.

Then I graph the standard "la" graph, and in front of that, I graph the new
"la_hi" graph.  Where the "la_hi" is zero, you see the "la" graph peeking
through.

Cheers
Jeremy
