Question Regarding TCP Statistics Graph 🔗 link

Hello,

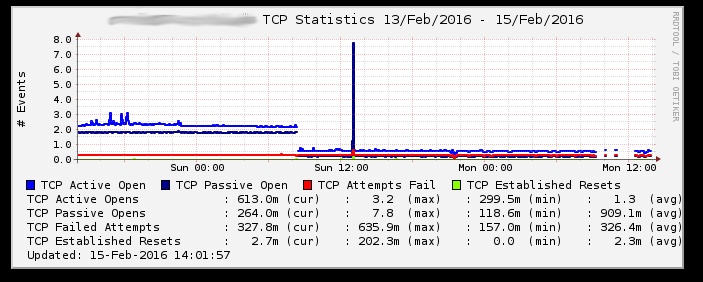

I'm a bit confused on what exactly this TCP Statistics graph is saying
(image attached).

What exactly are the units in this graph?

The y axis shows ~1-2 events but the legend shows 100-600"m".  What is the
magnitude of "m" exactly?

Do the numbers in the legend not line up with the graph axis units? Is
there a reason for this?


I would greatly appreciate if anyone could clear this up for me!


Thanks!!

--
Matt Vander Werf

The 'm' is 'milli' in this case, I believe.

The TCP values below are of a 'DERIVE' type, so you're seeing the rate of
events as counted by one of the [netstat] commands (-s). The rate should
be per second (which should probably be clarified in that label).

On an idle VM that's not doing much, that might be under 1 event a second.

Regards,
-jc

On Tue, February 16, 2016 1:44 pm, Matt Vander Werf wrote:
