Sun Grid Engine monitoring
list Michael Nemeth
While I not been involved in the effort yet,we are about to bring as "farm" under Sun Grid Engine in to production. Anyone doing any monitoring like this? I saw a script on deadcat. I really know little about it but said Id check into what monitoring and metrics could be done by hobbit.
list Galen Johnson
Where on deadcat? I can't find anything that mentions it (a search on grid on Deacat turns up something for the California power grid). Most monitors from deadcat should work with little to no modification for Hobbit. Also, Hobbit will monitor whatever you tell it so the sky's the limit there...or in this case the scripter is the limit. =G=
▸
-----Original Message-----
From: michael nemeth [mailto:user-609d3fab5b2d@xymon.invalid]
Sent: Thursday, October 09, 2008 2:46 PM
To: user-ae9b8668bcde@xymon.invalid
Subject: [hobbit] Sun Grid Engine monitoring
While I not been involved in the effort yet,we are about to bring as
"farm" under Sun Grid Engine in to production. Anyone doing any
monitoring like this? I saw a script on deadcat. I really know
little about it but said Id check into what monitoring and metrics could
be done by hobbit.
list Michael Nemeth
Search for sge.sh.
▸
Galen Johnson wrote:Where on deadcat? I can't find anything that mentions it (a search on grid on Deacat turns up something for the California power grid). Most monitors from deadcat should work with little to no modification for Hobbit. Also, Hobbit will monitor whatever you tell it so the sky's the limit there...or in this case the scripter is the limit. =G= -----Original Message----- From: michael nemeth [mailto:user-609d3fab5b2d@xymon.invalid] Sent: Thursday, October 09, 2008 2:46 PM To: user-ae9b8668bcde@xymon.invalid Subject: [hobbit] Sun Grid Engine monitoring While I not been involved in the effort yet,we are about to bring as "farm" under Sun Grid Engine in to production. Anyone doing any monitoring like this? I saw a script on deadcat. I really know little about it but said Id check into what monitoring and metrics could be done by hobbit.
list Rdeal
It is called sge.sh http://www.deadcat.net/viewfile.php?fileid=920 And we run it under hobbit now. Richard
▸
From: Galen Johnson <user-87f955643e3d@xymon.invalid> Reply-To: <user-ae9b8668bcde@xymon.invalid> Date: Thu, 9 Oct 2008 14:57:10 -0400 To: "user-ae9b8668bcde@xymon.invalid" <user-ae9b8668bcde@xymon.invalid> Subject: RE: [hobbit] Sun Grid Engine monitoring Where on deadcat? I can't find anything that mentions it (a search on grid on Deacat turns up something for the California power grid). Most monitors from deadcat should work with little to no modification for Hobbit. Also, Hobbit will monitor whatever you tell it so the sky's the limit there...or in this case the scripter is the limit. =G= -----Original Message----- From: michael nemeth [mailto:user-609d3fab5b2d@xymon.invalid] Sent: Thursday, October 09, 2008 2:46 PM To: user-ae9b8668bcde@xymon.invalid Subject: [hobbit] Sun Grid Engine monitoring While I not been involved in the effort yet,we are about to bring as "farm" under Sun Grid Engine in to production. Anyone doing any monitoring like this? I saw a script on deadcat. I really know little about it but said Id check into what monitoring and metrics could be done by hobbit.
list Galen Johnson
At first blush...it looks like it should just work. It's one of the more basic monitors that use (basically) the same template I start with for my hobbit scripts. You may have to make some adjustments for where the system variables live.
▸
=G=
-----Original Message-----
From: michael nemeth [mailto:user-609d3fab5b2d@xymon.invalid]
Sent: Thursday, October 09, 2008 3:07 PM
To: user-ae9b8668bcde@xymon.invalid
Subject: Re: [hobbit] Sun Grid Engine monitoring
Search for sge.sh.
Galen Johnson wrote:Where on deadcat? I can't find anything that mentions it (a search on grid on Deacat turns up something for the California power grid). Most monitors from deadcat should work with little to no modification for Hobbit. Also, Hobbit will monitor whatever you tell it so the sky's the limit there...or in this case the scripter is the limit. =G= -----Original Message----- From: michael nemeth [mailto:user-609d3fab5b2d@xymon.invalid] Sent: Thursday, October 09, 2008 2:46 PM To: user-ae9b8668bcde@xymon.invalid Subject: [hobbit] Sun Grid Engine monitoring While I not been involved in the effort yet,we are about to bring as "farm" under Sun Grid Engine in to production. Anyone doing any monitoring like this? I saw a script on deadcat. I really know little about it but said Id check into what monitoring and metrics could be done by hobbit.
list Martin Flemming
Yep, i use it too ... but unfortunatley it's without trending graphs .. Got anybody a solution for it ? .. i'm very interested :-) cheers, martin
▸
On Thu, 9 Oct 2008, rdeal wrote:
It is called sge.sh http://www.deadcat.net/viewfile.php?fileid=920 And we run it under hobbit now. RichardFrom: Galen Johnson <user-87f955643e3d@xymon.invalid> Reply-To: <user-ae9b8668bcde@xymon.invalid> Date: Thu, 9 Oct 2008 14:57:10 -0400 To: "user-ae9b8668bcde@xymon.invalid" <user-ae9b8668bcde@xymon.invalid> Subject: RE: [hobbit] Sun Grid Engine monitoring Where on deadcat? I can't find anything that mentions it (a search on grid on Deacat turns up something for the California power grid). Most monitors from deadcat should work with little to no modification for Hobbit. Also, Hobbit will monitor whatever you tell it so the sky's the limit there...or in this case the scripter is the limit. =G= -----Original Message----- From: michael nemeth [mailto:user-609d3fab5b2d@xymon.invalid] Sent: Thursday, October 09, 2008 2:46 PM To: user-ae9b8668bcde@xymon.invalid Subject: [hobbit] Sun Grid Engine monitoring While I not been involved in the effort yet,we are about to bring as "farm" under Sun Grid Engine in to production. Anyone doing any monitoring like this? I saw a script on deadcat. I really know little about it but said Id check into what monitoring and metrics could be done by hobbit.
Gruss
Martin Flemming
Martin Flemming
DESY / IT office : Building 2b / 008a
Notkestr. 85 phone : XXX - XXXX - XXXX
22603 Hamburg mail : user-f286aaa49a76@xymon.invalid
list Richard Deal
What did you want to graph. I use mrtg to graph global she stats Sent from a portable system with a small keyboard.
▸
On Oct 9, 2008, at 5:51 PM, "Martin Flemming" <user-f286aaa49a76@xymon.invalid> wrote:
Yep, i use it too ... but unfortunatley it's without trending graphs .. Got anybody a solution for it ? .. i'm very interested :-) cheers, martin On Thu, 9 Oct 2008, rdeal wrote:It is called sge.sh http://www.deadcat.net/viewfile.php?fileid=920 And we run it under hobbit now. RichardFrom: Galen Johnson <user-87f955643e3d@xymon.invalid> Reply-To: <user-ae9b8668bcde@xymon.invalid> Date: Thu, 9 Oct 2008 14:57:10 -0400 To: "user-ae9b8668bcde@xymon.invalid" <user-ae9b8668bcde@xymon.invalid> Subject: RE: [hobbit] Sun Grid Engine monitoring Where on deadcat? I can't find anything that mentions it (a search on grid on Deacat turns up something for the California power grid). Most monitors from deadcat should work with little to no modification for Hobbit. Also, Hobbit will monitor whatever you tell it so the sky's the limit there...or in this case the scripter is the limit. =G= -----Original Message----- From: michael nemeth [mailto:user-609d3fab5b2d@xymon.invalid] Sent: Thursday, October 09, 2008 2:46 PM To: user-ae9b8668bcde@xymon.invalid Subject: [hobbit] Sun Grid Engine monitoring While I not been involved in the effort yet,we are about to bring as "farm" under Sun Grid Engine in to production. Anyone doing any monitoring like this? I saw a script on deadcat. I really know little about it but said Id check into what monitoring and metrics could be done by hobbit.Gruss Martin Flemming Martin Flemming DESY / IT office : Building 2b / 008a Notkestr. 85 phone : XXX - XXXX - XXXX 22603 Hamburg mail : user-f286aaa49a76@xymon.invalid
list Michael Nemeth
Ok! well I run mrtg too so I can do that. Also I thought I try creating graphs for the sge.sh when it's implemented. I've done custom graphs before (clearcase). As I said I know little about SGE and the SGE support person knows little about hobbit.
▸
Deal, Richard wrote:What did you want to graph. I use mrtg to graph global she stats Sent from a portable system with a small keyboard. On Oct 9, 2008, at 5:51 PM, "Martin Flemming" <user-f286aaa49a76@xymon.invalid> wrote:Yep, i use it too ... but unfortunatley it's without trending graphs .. Got anybody a solution for it ? .. i'm very interested :-) cheers, martin On Thu, 9 Oct 2008, rdeal wrote:It is called sge.sh http://www.deadcat.net/viewfile.php?fileid=920 And we run it under hobbit now. RichardFrom: Galen Johnson <user-87f955643e3d@xymon.invalid> Reply-To: <user-ae9b8668bcde@xymon.invalid> Date: Thu, 9 Oct 2008 14:57:10 -0400 To: "user-ae9b8668bcde@xymon.invalid" <user-ae9b8668bcde@xymon.invalid> Subject: RE: [hobbit] Sun Grid Engine monitoring Where on deadcat? I can't find anything that mentions it (a search on grid on Deacat turns up something for the California power grid). Most monitors from deadcat should work with little to no modification for Hobbit. Also, Hobbit will monitor whatever you tell it so the sky's the limit there...or in this case the scripter is the limit. =G= -----Original Message----- From: michael nemeth [mailto:user-609d3fab5b2d@xymon.invalid] Sent: Thursday, October 09, 2008 2:46 PM To: user-ae9b8668bcde@xymon.invalid Subject: [hobbit] Sun Grid Engine monitoring While I not been involved in the effort yet,we are about to bring as "farm" under Sun Grid Engine in to production. Anyone doing any monitoring like this? I saw a script on deadcat. I really know little about it but said Id check into what monitoring and metrics could be done by hobbit.Gruss Martin Flemming Martin Flemming DESY / IT office : Building 2b / 008a Notkestr. 85 phone : XXX - XXXX - XXXX 22603 Hamburg mail : user-f286aaa49a76@xymon.invalid
list Martin Flemming
Hmm, i didn't run mrtg ... How can i do it for sge ? .. i want to graph e.g jobs in the queue for each node, project or queue .. ... everything i can do :-) Or is it maybe possible to create graphs with the data of sge.sh script ? thanks & cheers martin
▸
On Fri, 10 Oct 2008, michael nemeth wrote:
Ok! well I run mrtg too so I can do that. Also I thought I try creating graphs for the sge.sh when it's implemented. I've done custom graphs before (clearcase). As I said I know little about SGE and the SGE support person knows little about hobbit. Deal, Richard wrote:What did you want to graph. I use mrtg to graph global she stats Sent from a portable system with a small keyboard. On Oct 9, 2008, at 5:51 PM, "Martin Flemming" <user-f286aaa49a76@xymon.invalid> wrote:Yep, i use it too ... but unfortunatley it's without trending graphs .. Got anybody a solution for it ? .. i'm very interested :-) cheers, martin On Thu, 9 Oct 2008, rdeal wrote:It is called sge.sh http://www.deadcat.net/viewfile.php?fileid=920And we run it under hobbit now. RichardFrom: Galen Johnson <user-87f955643e3d@xymon.invalid>Reply-To: <user-ae9b8668bcde@xymon.invalid> Date: Thu, 9 Oct 2008 14:57:10 -0400 To: "user-ae9b8668bcde@xymon.invalid" <user-ae9b8668bcde@xymon.invalid> Subject: RE: [hobbit] Sun Grid Engine monitoringWhere on deadcat? I can't find anything that mentions it (a search > > > on grid onDeacat turns up something for the California power grid). Most > > > monitors from deadcat should work with little to no modification for Hobbit. > > > Also, Hobbit will monitor whatever you tell it so the sky's the limit there...or > > > in this case the scripter is the limit.=G= -----Original Message-----From: michael nemeth [mailto:user-609d3fab5b2d@xymon.invalid] Sent: Thursday, October 09, 2008 2:46 PM To: user-ae9b8668bcde@xymon.invalid Subject: [hobbit] Sun Grid Engine monitoringWhile I not been involved in the effort yet,we are about to bring as"farm" under Sun Grid Engine in to production. Anyone doing any monitoring like this? I saw a script on deadcat. I really know little about it but said Id check into what monitoring and metrics > > > could be done by hobbit.GrussMartin FlemmingMartin Flemming DESY / IT office : Building 2b / 008a Notkestr. 85 phone : XXX - XXXX - XXXX 22603 Hamburg mail : user-f286aaa49a76@xymon.invalid
Gruss
Martin Flemming
Martin Flemming
DESY / IT office : Building 2b / 008a
Notkestr. 85 phone : XXX - XXXX - XXXX
22603 Hamburg mail : user-f286aaa49a76@xymon.invalid
list Rdeal
Sure if you like send us the changes. We didn't find it necessary to graph at the machine level as that is of little importance to us. We look at the overall load on individual systems and graph the global queues (default, fast, medium). We do use ganglia to get instantaneous system and GRID sum loads (nothing else seems to give us this information). Richard
▸
From: michael nemeth <user-609d3fab5b2d@xymon.invalid> Reply-To: <user-ae9b8668bcde@xymon.invalid> Date: Fri, 10 Oct 2008 05:36:50 -0400 To: <user-ae9b8668bcde@xymon.invalid> Subject: Re: [hobbit] Sun Grid Engine monitoring Ok! well I run mrtg too so I can do that. Also I thought I try creating graphs for the sge.sh when it's implemented. I've done custom graphs before (clearcase). As I said I know little about SGE and the SGE support person knows little about hobbit. Deal, Richard wrote:What did you want to graph. I use mrtg to graph global she stats Sent from a portable system with a small keyboard. On Oct 9, 2008, at 5:51 PM, "Martin Flemming" <user-f286aaa49a76@xymon.invalid> wrote:Yep, i use it too ... but unfortunatley it's without trending graphs .. Got anybody a solution for it ? .. i'm very interested :-) cheers, martin On Thu, 9 Oct 2008, rdeal wrote:It is called sge.sh http://www.deadcat.net/viewfile.php?fileid=920 And we run it under hobbit now. RichardFrom: Galen Johnson <user-87f955643e3d@xymon.invalid> Reply-To: <user-ae9b8668bcde@xymon.invalid> Date: Thu, 9 Oct 2008 14:57:10 -0400 To: "user-ae9b8668bcde@xymon.invalid" <user-ae9b8668bcde@xymon.invalid> Subject: RE: [hobbit] Sun Grid Engine monitoring Where on deadcat? I can't find anything that mentions it (a search on grid on Deacat turns up something for the California power grid). Most monitors from deadcat should work with little to no modification for Hobbit. Also, Hobbit will monitor whatever you tell it so the sky's the limit there...or in this case the scripter is the limit. =G= -----Original Message----- From: michael nemeth [mailto:user-609d3fab5b2d@xymon.invalid] Sent: Thursday, October 09, 2008 2:46 PM To: user-ae9b8668bcde@xymon.invalid Subject: [hobbit] Sun Grid Engine monitoring While I not been involved in the effort yet,we are about to bring as "farm" under Sun Grid Engine in to production. Anyone doing any monitoring like this? I saw a script on deadcat. I really know little about it but said Id check into what monitoring and metrics could be done by hobbit.Gruss Martin Flemming Martin Flemming DESY / IT office : Building 2b / 008a Notkestr. 85 phone : XXX - XXXX - XXXX 22603 Hamburg mail : user-f286aaa49a76@xymon.invalid
list Rdeal
We have several queues, primary are default, fast, medium.
The config file is pretty simple:
Unscaled[_]: y
Target[sge_1]: `/local/packages/IT/MRTG/bin/qgraph.sh both`
MaxBytes[sge_1]: 625
AbsMax[sge_1]: 100000000
ShortLegend[sge_1]: Jobs
YLegend[sge_1]: jobs
Options[sge_1]: absolute, gauge, noinfo, nopercent, growright, integer,
unknaszero
Title[sge_1]: Current Jobs on JCVI GRID
Legend1[sge_1]: Running
Legend2[sge_1]: Queued
Legend3[sge_1]: Peak running
Legend4[sge_1]: Peak queued
LegendI[sge_1]: running
LegendO[sge_1]: queued
Colours[sge_1]: GREEN#00eb0c,BLUE#0000ff,GRAY#AAAAAA,VIOLET#ff00ff
PageTop[sge_1]: <H1>Current Jobs on JCVI GRID</H1>
<TABLE>
<TR><TD>Maintainer:</TD> <TD>user-f6f804cb0a50@xymon.invalid</TD></TR>
<TR><TD>Description:</TD><TD>Number of current SGE Jobs running on the
JCVI SGE GRID</TD></TR>
</TABLE>
routers.cgi*Options[sge_1]: noabsmax nodetail
Target[sge_7]: `/local/packages/IT/MRTG/bin/qgraph.sh medium`
MaxBytes[sge_7]: 354
AbsMax[sge_7]: 100000000
ShortLegend[sge_7]: Jobs
YLegend[sge_7]: jobs
Options[sge_7]: absolute, gauge, noinfo, nopercent, growright, integer,
unknaszero
Title[sge_7]: Current Jobs in medium.q and fast.q
Legend1[sge_7]: Medium
Legend2[sge_7]: Fast
Legend3[sge_7]: Peak medium
Legend4[sge_7]: Peak fast
LegendI[sge_7]: medium
LegendO[sge_7]: fast
Colours[sge_7]: GREEN#00eb0c,BLUE#0000ff,GRAY#AAAAAA,VIOLET#ff00ff
PageTop[sge_7]: <H1>Current Jobs on JCVI GRID</H1>
<TABLE>
<TR><TD>Maintainer:</TD> <TD>user-f6f804cb0a50@xymon.invalid</TD></TR>
<TR><TD>Description:</TD><TD>Number of current SGE Jobs in the fast.q and
medium.q</TD></TR>
</TABLE>
routers.cgi*Options[sge_7]: noabsmax nodetail
The script is rather simple:
#!/bin/sh
#
case "$1" in
test )
echo 50
echo 20 ;;
total )
echo $T
echo 0 ;;
running )
echo $R
echo 0 ;;
msc )
T=`/usr/local/bin/qstat -q fast.msc.q -s r | /usr/bin/tail +3 |
/usr/bin/wc -l`
R=`/usr/local/bin/qstat -q msc.q -s r | /usr/bin/tail +3 | /usr/bin/wc
-l`
echo $R
echo $T ;;
medium )
T=`/usr/local/bin/qstat -q fast.q -s r | /usr/bin/tail +3 | /usr/bin/wc
-l`
R=`/usr/local/bin/qstat -q medium.q -s r | /usr/bin/tail +3 |
/usr/bin/wc -l`
echo $R
echo $T ;;
fast )
T=`/usr/local/bin/qstat -q default.q -s r | /usr/bin/tail +3 |
/usr/bin/wc -l`
R=`/usr/local/bin/qstat -q fast.q -s r | /usr/bin/tail +3 | /usr/bin/wc
-l`
echo $R
echo $T ;;
desktop )
T=`/usr/local/bin/qstat -q desktop.q -s r | /usr/bin/tail +3 |
/usr/bin/wc -l`
R=`/usr/local/bin/qstat -q fast.q -s r | /usr/bin/tail +3 | /usr/bin/wc
-l`
echo $R
echo $T ;;
jtc )
T=`ssh wasp "use sgejcvi; qstat -g dt" | /usr/bin/tail +3 | /usr/bin/wc
-l`
R=`ssh wasp "use sgejcvi; qstat -s r" | /usr/bin/tail +3 | /usr/bin/wc
-l`
echo $R
echo $T ;;
* | both )
T=`/usr/local/bin/qstat -g dt | /usr/bin/tail +3 | /usr/bin/wc -l`
R=`/usr/local/bin/qstat -s r | /usr/bin/tail +3 | /usr/bin/wc -l`
echo $R
echo $T ;;
esac
echo foo
echo SGE

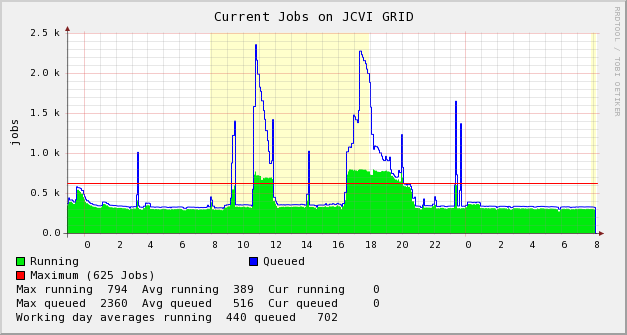

The two graphs configured above:
▸
From: Martin Flemming <user-f286aaa49a76@xymon.invalid> Reply-To: <user-ae9b8668bcde@xymon.invalid> Date: Fri, 10 Oct 2008 11:46:29 +0200 (CEST) To: <user-ae9b8668bcde@xymon.invalid> Subject: Re: [hobbit] Sun Grid Engine monitoring Hmm, i didn't run mrtg ... How can i do it for sge ? .. i want to graph e.g jobs in the queue for each node, project or queue .. ... everything i can do :-) Or is it maybe possible to create graphs with the data of sge.sh script ? thanks & cheers martin On Fri, 10 Oct 2008, michael nemeth wrote:Ok! well I run mrtg too so I can do that. Also I thought I try creating graphs for the sge.sh when it's implemented. I've done custom graphs before (clearcase). As I said I know little about SGE and the SGE support person knows little about hobbit. Deal, Richard wrote:What did you want to graph. I use mrtg to graph global she stats Sent from a portable system with a small keyboard. On Oct 9, 2008, at 5:51 PM, "Martin Flemming" <user-f286aaa49a76@xymon.invalid> wrote:Yep, i use it too ... but unfortunatley it's without trending graphs .. Got anybody a solution for it ? .. i'm very interested :-) cheers, martin On Thu, 9 Oct 2008, rdeal wrote:It is called sge.sh http://www.deadcat.net/viewfile.php?fileid=920 And we run it under hobbit now. RichardFrom: Galen Johnson <user-87f955643e3d@xymon.invalid> Reply-To: <user-ae9b8668bcde@xymon.invalid> Date: Thu, 9 Oct 2008 14:57:10 -0400 To: "user-ae9b8668bcde@xymon.invalid" <user-ae9b8668bcde@xymon.invalid> Subject: RE: [hobbit] Sun Grid Engine monitoring Where on deadcat? I can't find anything that mentions it (a search on grid on Deacat turns up something for the California power grid). Most monitors from deadcat should work with little to no modification for Hobbit. Also, Hobbit will monitor whatever you tell it so the sky's the limit there...or in this case the scripter is the limit. =G= -----Original Message----- From: michael nemeth [mailto:user-609d3fab5b2d@xymon.invalid] Sent: Thursday, October 09, 2008 2:46 PM To: user-ae9b8668bcde@xymon.invalid Subject: [hobbit] Sun Grid Engine monitoring While I not been involved in the effort yet,we are about to bring as "farm" under Sun Grid Engine in to production. Anyone doing any monitoring like this? I saw a script on deadcat. I really know little about it but said Id check into what monitoring and metrics could be done by hobbit.Gruss Martin Flemming Martin Flemming DESY / IT office : Building 2b / 008a Notkestr. 85 phone : XXX - XXXX - XXXX 22603 Hamburg mail : user-f286aaa49a76@xymon.invalidGruss Martin Flemming Martin Flemming DESY / IT office : Building 2b / 008a Notkestr. 85 phone : XXX - XXXX - XXXX 22603 Hamburg mail : user-f286aaa49a76@xymon.invalid
Attachments (1)
attachment.pnglist Martin Flemming
Thanks, i will test it and give feedback .. :-) .. unfortunatley, i'm short in time for testing very short :-(
▸
cheers,
martin
On Fri, 10 Oct 2008, rdeal wrote:
We have several queues, primary are default, fast, medium. The config file is pretty simple: Unscaled[_]: y Target[sge_1]: `/local/packages/IT/MRTG/bin/qgraph.sh both` MaxBytes[sge_1]: 625 AbsMax[sge_1]: 100000000 ShortLegend[sge_1]: Jobs YLegend[sge_1]: jobs Options[sge_1]: absolute, gauge, noinfo, nopercent, growright, integer, unknaszero Title[sge_1]: Current Jobs on JCVI GRID Legend1[sge_1]: Running Legend2[sge_1]: Queued Legend3[sge_1]: Peak running Legend4[sge_1]: Peak queued LegendI[sge_1]: running LegendO[sge_1]: queued Colours[sge_1]: GREEN#00eb0c,BLUE#0000ff,GRAY#AAAAAA,VIOLET#ff00ff PageTop[sge_1]: <H1>Current Jobs on JCVI GRID</H1> <TABLE> <TR><TD>Maintainer:</TD> <TD>user-f6f804cb0a50@xymon.invalid</TD></TR> <TR><TD>Description:</TD><TD>Number of current SGE Jobs running on the JCVI SGE GRID</TD></TR> </TABLE> routers.cgi*Options[sge_1]: noabsmax nodetail Target[sge_7]: `/local/packages/IT/MRTG/bin/qgraph.sh medium` MaxBytes[sge_7]: 354 AbsMax[sge_7]: 100000000 ShortLegend[sge_7]: Jobs YLegend[sge_7]: jobs Options[sge_7]: absolute, gauge, noinfo, nopercent, growright, integer, unknaszero Title[sge_7]: Current Jobs in medium.q and fast.q Legend1[sge_7]: Medium Legend2[sge_7]: Fast Legend3[sge_7]: Peak medium Legend4[sge_7]: Peak fast LegendI[sge_7]: medium LegendO[sge_7]: fast Colours[sge_7]: GREEN#00eb0c,BLUE#0000ff,GRAY#AAAAAA,VIOLET#ff00ff PageTop[sge_7]: <H1>Current Jobs on JCVI GRID</H1> <TABLE> <TR><TD>Maintainer:</TD> <TD>user-f6f804cb0a50@xymon.invalid</TD></TR> <TR><TD>Description:</TD><TD>Number of current SGE Jobs in the fast.q and medium.q</TD></TR> </TABLE> routers.cgi*Options[sge_7]: noabsmax nodetail The script is rather simple: #!/bin/sh # case "$1" in test ) echo 50 echo 20 ;; total ) echo $T echo 0 ;; running ) echo $R echo 0 ;; msc ) T=`/usr/local/bin/qstat -q fast.msc.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` R=`/usr/local/bin/qstat -q msc.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` echo $R echo $T ;; medium ) T=`/usr/local/bin/qstat -q fast.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` R=`/usr/local/bin/qstat -q medium.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` echo $R echo $T ;; fast ) T=`/usr/local/bin/qstat -q default.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` R=`/usr/local/bin/qstat -q fast.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` echo $R echo $T ;; desktop ) T=`/usr/local/bin/qstat -q desktop.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` R=`/usr/local/bin/qstat -q fast.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` echo $R echo $T ;; jtc ) T=`ssh wasp "use sgejcvi; qstat -g dt" | /usr/bin/tail +3 | /usr/bin/wc -l` R=`ssh wasp "use sgejcvi; qstat -s r" | /usr/bin/tail +3 | /usr/bin/wc -l` echo $R echo $T ;; * | both ) T=`/usr/local/bin/qstat -g dt | /usr/bin/tail +3 | /usr/bin/wc -l` R=`/usr/local/bin/qstat -s r | /usr/bin/tail +3 | /usr/bin/wc -l` echo $R echo $T ;; esac echo foo echo SGE The two graphs configured above:From: Martin Flemming <user-f286aaa49a76@xymon.invalid> Reply-To: <user-ae9b8668bcde@xymon.invalid> Date: Fri, 10 Oct 2008 11:46:29 +0200 (CEST) To: <user-ae9b8668bcde@xymon.invalid> Subject: Re: [hobbit] Sun Grid Engine monitoring Hmm, i didn't run mrtg ... How can i do it for sge ? .. i want to graph e.g jobs in the queue for each node, project or queue .. ... everything i can do :-) Or is it maybe possible to create graphs with the data of sge.sh script ? thanks & cheers martin On Fri, 10 Oct 2008, michael nemeth wrote:Ok! well I run mrtg too so I can do that. Also I thought I try creating graphs for the sge.sh when it's implemented. I've done custom graphs before (clearcase). As I said I know little about SGE and the SGE support person knows little about hobbit. Deal, Richard wrote:What did you want to graph. I use mrtg to graph global she stats Sent from a portable system with a small keyboard. On Oct 9, 2008, at 5:51 PM, "Martin Flemming" <user-f286aaa49a76@xymon.invalid> wrote:Yep, i use it too ... but unfortunatley it's without trending graphs .. Got anybody a solution for it ? .. i'm very interested :-) cheers, martin On Thu, 9 Oct 2008, rdeal wrote:It is called sge.sh http://www.deadcat.net/viewfile.php?fileid=920 And we run it under hobbit now. RichardFrom: Galen Johnson <user-87f955643e3d@xymon.invalid> Reply-To: <user-ae9b8668bcde@xymon.invalid> Date: Thu, 9 Oct 2008 14:57:10 -0400 To: "user-ae9b8668bcde@xymon.invalid" <user-ae9b8668bcde@xymon.invalid> Subject: RE: [hobbit] Sun Grid Engine monitoring Where on deadcat? I can't find anything that mentions it (a search on grid on Deacat turns up something for the California power grid). Most monitors from deadcat should work with little to no modification for Hobbit. Also, Hobbit will monitor whatever you tell it so the sky's the limit there...or in this case the scripter is the limit. =G= -----Original Message----- From: michael nemeth [mailto:user-609d3fab5b2d@xymon.invalid] Sent: Thursday, October 09, 2008 2:46 PM To: user-ae9b8668bcde@xymon.invalid Subject: [hobbit] Sun Grid Engine monitoring While I not been involved in the effort yet,we are about to bring as "farm" under Sun Grid Engine in to production. Anyone doing any monitoring like this? I saw a script on deadcat. I really know little about it but said Id check into what monitoring and metrics could be done by hobbit.Gruss Martin Flemming Martin Flemming DESY / IT office : Building 2b / 008a Notkestr. 85 phone : XXX - XXXX - XXXX 22603 Hamburg mail : user-f286aaa49a76@xymon.invalidGruss Martin Flemming Martin Flemming DESY / IT office : Building 2b / 008a Notkestr. 85 phone : XXX - XXXX - XXXX 22603 Hamburg mail : user-f286aaa49a76@xymon.invalid
Gruss
Martin Flemming
Martin Flemming
DESY / IT office : Building 2b / 008a
Notkestr. 85 phone : XXX - XXXX - XXXX
22603 Hamburg mail : user-f286aaa49a76@xymon.invalid
list Rdeal
I just put an upgrade to the test on deadcat yesterday to version 0.3e... Richard
▸
From: Martin Flemming <user-f286aaa49a76@xymon.invalid> Reply-To: <user-ae9b8668bcde@xymon.invalid> Date: Wed, 15 Oct 2008 22:58:46 +0200 (CEST) To: <user-ae9b8668bcde@xymon.invalid> Subject: Re: [hobbit] Sun Grid Engine monitoring Thanks, i will test it and give feedback .. :-) .. unfortunatley, i'm short in time for testing very short :-( cheers, martin On Fri, 10 Oct 2008, rdeal wrote:We have several queues, primary are default, fast, medium. The config file is pretty simple: Unscaled[_]: y Target[sge_1]: `/local/packages/IT/MRTG/bin/qgraph.sh both` MaxBytes[sge_1]: 625 AbsMax[sge_1]: 100000000 ShortLegend[sge_1]: Jobs YLegend[sge_1]: jobs Options[sge_1]: absolute, gauge, noinfo, nopercent, growright, integer, unknaszero Title[sge_1]: Current Jobs on JCVI GRID Legend1[sge_1]: Running Legend2[sge_1]: Queued Legend3[sge_1]: Peak running Legend4[sge_1]: Peak queued LegendI[sge_1]: running LegendO[sge_1]: queued Colours[sge_1]: GREEN#00eb0c,BLUE#0000ff,GRAY#AAAAAA,VIOLET#ff00ff PageTop[sge_1]: <H1>Current Jobs on JCVI GRID</H1> <TABLE> <TR><TD>Maintainer:</TD> <TD>user-f6f804cb0a50@xymon.invalid</TD></TR> <TR><TD>Description:</TD><TD>Number of current SGE Jobs running on the JCVI SGE GRID</TD></TR> </TABLE> routers.cgi*Options[sge_1]: noabsmax nodetail Target[sge_7]: `/local/packages/IT/MRTG/bin/qgraph.sh medium` MaxBytes[sge_7]: 354 AbsMax[sge_7]: 100000000 ShortLegend[sge_7]: Jobs YLegend[sge_7]: jobs Options[sge_7]: absolute, gauge, noinfo, nopercent, growright, integer, unknaszero Title[sge_7]: Current Jobs in medium.q and fast.q Legend1[sge_7]: Medium Legend2[sge_7]: Fast Legend3[sge_7]: Peak medium Legend4[sge_7]: Peak fast LegendI[sge_7]: medium LegendO[sge_7]: fast Colours[sge_7]: GREEN#00eb0c,BLUE#0000ff,GRAY#AAAAAA,VIOLET#ff00ff PageTop[sge_7]: <H1>Current Jobs on JCVI GRID</H1> <TABLE> <TR><TD>Maintainer:</TD> <TD>user-f6f804cb0a50@xymon.invalid</TD></TR> <TR><TD>Description:</TD><TD>Number of current SGE Jobs in the fast.q and medium.q</TD></TR> </TABLE> routers.cgi*Options[sge_7]: noabsmax nodetail The script is rather simple: #!/bin/sh # case "$1" in test ) echo 50 echo 20 ;; total ) echo $T echo 0 ;; running ) echo $R echo 0 ;; msc ) T=`/usr/local/bin/qstat -q fast.msc.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` R=`/usr/local/bin/qstat -q msc.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` echo $R echo $T ;; medium ) T=`/usr/local/bin/qstat -q fast.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` R=`/usr/local/bin/qstat -q medium.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` echo $R echo $T ;; fast ) T=`/usr/local/bin/qstat -q default.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` R=`/usr/local/bin/qstat -q fast.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` echo $R echo $T ;; desktop ) T=`/usr/local/bin/qstat -q desktop.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` R=`/usr/local/bin/qstat -q fast.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` echo $R echo $T ;; jtc ) T=`ssh wasp "use sgejcvi; qstat -g dt" | /usr/bin/tail +3 | /usr/bin/wc -l` R=`ssh wasp "use sgejcvi; qstat -s r" | /usr/bin/tail +3 | /usr/bin/wc -l` echo $R echo $T ;; * | both ) T=`/usr/local/bin/qstat -g dt | /usr/bin/tail +3 | /usr/bin/wc -l` R=`/usr/local/bin/qstat -s r | /usr/bin/tail +3 | /usr/bin/wc -l` echo $R echo $T ;; esac echo foo echo SGE The two graphs configured above:From: Martin Flemming <user-f286aaa49a76@xymon.invalid> Reply-To: <user-ae9b8668bcde@xymon.invalid> Date: Fri, 10 Oct 2008 11:46:29 +0200 (CEST) To: <user-ae9b8668bcde@xymon.invalid> Subject: Re: [hobbit] Sun Grid Engine monitoring Hmm, i didn't run mrtg ... How can i do it for sge ? .. i want to graph e.g jobs in the queue for each node, project or queue .. ... everything i can do :-) Or is it maybe possible to create graphs with the data of sge.sh script ? thanks & cheers martin On Fri, 10 Oct 2008, michael nemeth wrote:Ok! well I run mrtg too so I can do that. Also I thought I try creating graphs for the sge.sh when it's implemented. I've done custom graphs before (clearcase). As I said I know little about SGE and the SGE support person knows little about hobbit. Deal, Richard wrote:What did you want to graph. I use mrtg to graph global she stats Sent from a portable system with a small keyboard. On Oct 9, 2008, at 5:51 PM, "Martin Flemming" <user-f286aaa49a76@xymon.invalid> wrote:Yep, i use it too ... but unfortunatley it's without trending graphs .. Got anybody a solution for it ? .. i'm very interested :-) cheers, martin On Thu, 9 Oct 2008, rdeal wrote:It is called sge.sh http://www.deadcat.net/viewfile.php?fileid=920 And we run it under hobbit now. RichardFrom: Galen Johnson <user-87f955643e3d@xymon.invalid> Reply-To: <user-ae9b8668bcde@xymon.invalid> Date: Thu, 9 Oct 2008 14:57:10 -0400 To: "user-ae9b8668bcde@xymon.invalid" <user-ae9b8668bcde@xymon.invalid> Subject: RE: [hobbit] Sun Grid Engine monitoring Where on deadcat? I can't find anything that mentions it (a search on grid on Deacat turns up something for the California power grid). Most monitors from deadcat should work with little to no modification for Hobbit. Also, Hobbit will monitor whatever you tell it so the sky's the limit there...or in this case the scripter is the limit. =G= -----Original Message----- From: michael nemeth [mailto:user-609d3fab5b2d@xymon.invalid] Sent: Thursday, October 09, 2008 2:46 PM To: user-ae9b8668bcde@xymon.invalid Subject: [hobbit] Sun Grid Engine monitoring While I not been involved in the effort yet,we are about to bring as "farm" under Sun Grid Engine in to production. Anyone doing any monitoring like this? I saw a script on deadcat. I really know little about it but said Id check into what monitoring and metrics could be done by hobbit.Gruss Martin Flemming Martin Flemming DESY / IT office : Building 2b / 008a Notkestr. 85 phone : XXX - XXXX - XXXX 22603 Hamburg mail : user-f286aaa49a76@xymon.invalidGruss Martin Flemming Martin Flemming DESY / IT office : Building 2b / 008a Notkestr. 85 phone : XXX - XXXX - XXXX 22603 Hamburg mail : user-f286aaa49a76@xymon.invalidGruss Martin Flemming Martin Flemming DESY / IT office : Building 2b / 008a Notkestr. 85 phone : XXX - XXXX - XXXX 22603 Hamburg mail : user-f286aaa49a76@xymon.invalid
list Martin Flemming
Nice, that will be easier and quicker to test it, Thanks ! cheers, martin
▸
On Wed, 15 Oct 2008, rdeal wrote:
I just put an upgrade to the test on deadcat yesterday to version 0.3e... RichardFrom: Martin Flemming <user-f286aaa49a76@xymon.invalid> Reply-To: <user-ae9b8668bcde@xymon.invalid> Date: Wed, 15 Oct 2008 22:58:46 +0200 (CEST) To: <user-ae9b8668bcde@xymon.invalid> Subject: Re: [hobbit] Sun Grid Engine monitoring Thanks, i will test it and give feedback .. :-) .. unfortunatley, i'm short in time for testing very short :-( cheers, martin On Fri, 10 Oct 2008, rdeal wrote:We have several queues, primary are default, fast, medium. The config file is pretty simple: Unscaled[_]: y Target[sge_1]: `/local/packages/IT/MRTG/bin/qgraph.sh both` MaxBytes[sge_1]: 625 AbsMax[sge_1]: 100000000 ShortLegend[sge_1]: Jobs YLegend[sge_1]: jobs Options[sge_1]: absolute, gauge, noinfo, nopercent, growright, integer, unknaszero Title[sge_1]: Current Jobs on JCVI GRID Legend1[sge_1]: Running Legend2[sge_1]: Queued Legend3[sge_1]: Peak running Legend4[sge_1]: Peak queued LegendI[sge_1]: running LegendO[sge_1]: queued Colours[sge_1]: GREEN#00eb0c,BLUE#0000ff,GRAY#AAAAAA,VIOLET#ff00ff PageTop[sge_1]: <H1>Current Jobs on JCVI GRID</H1> <TABLE> <TR><TD>Maintainer:</TD> <TD>user-f6f804cb0a50@xymon.invalid</TD></TR> <TR><TD>Description:</TD><TD>Number of current SGE Jobs running on the JCVI SGE GRID</TD></TR> </TABLE> routers.cgi*Options[sge_1]: noabsmax nodetail Target[sge_7]: `/local/packages/IT/MRTG/bin/qgraph.sh medium` MaxBytes[sge_7]: 354 AbsMax[sge_7]: 100000000 ShortLegend[sge_7]: Jobs YLegend[sge_7]: jobs Options[sge_7]: absolute, gauge, noinfo, nopercent, growright, integer, unknaszero Title[sge_7]: Current Jobs in medium.q and fast.q Legend1[sge_7]: Medium Legend2[sge_7]: Fast Legend3[sge_7]: Peak medium Legend4[sge_7]: Peak fast LegendI[sge_7]: medium LegendO[sge_7]: fast Colours[sge_7]: GREEN#00eb0c,BLUE#0000ff,GRAY#AAAAAA,VIOLET#ff00ff PageTop[sge_7]: <H1>Current Jobs on JCVI GRID</H1> <TABLE> <TR><TD>Maintainer:</TD> <TD>user-f6f804cb0a50@xymon.invalid</TD></TR> <TR><TD>Description:</TD><TD>Number of current SGE Jobs in the fast.q and medium.q</TD></TR> </TABLE> routers.cgi*Options[sge_7]: noabsmax nodetail The script is rather simple: #!/bin/sh # case "$1" in test ) echo 50 echo 20 ;; total ) echo $T echo 0 ;; running ) echo $R echo 0 ;; msc ) T=`/usr/local/bin/qstat -q fast.msc.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` R=`/usr/local/bin/qstat -q msc.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` echo $R echo $T ;; medium ) T=`/usr/local/bin/qstat -q fast.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` R=`/usr/local/bin/qstat -q medium.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` echo $R echo $T ;; fast ) T=`/usr/local/bin/qstat -q default.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` R=`/usr/local/bin/qstat -q fast.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` echo $R echo $T ;; desktop ) T=`/usr/local/bin/qstat -q desktop.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` R=`/usr/local/bin/qstat -q fast.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` echo $R echo $T ;; jtc ) T=`ssh wasp "use sgejcvi; qstat -g dt" | /usr/bin/tail +3 | /usr/bin/wc -l` R=`ssh wasp "use sgejcvi; qstat -s r" | /usr/bin/tail +3 | /usr/bin/wc -l` echo $R echo $T ;; * | both ) T=`/usr/local/bin/qstat -g dt | /usr/bin/tail +3 | /usr/bin/wc -l` R=`/usr/local/bin/qstat -s r | /usr/bin/tail +3 | /usr/bin/wc -l` echo $R echo $T ;; esac echo foo echo SGE The two graphs configured above:From: Martin Flemming <user-f286aaa49a76@xymon.invalid> Reply-To: <user-ae9b8668bcde@xymon.invalid> Date: Fri, 10 Oct 2008 11:46:29 +0200 (CEST) To: <user-ae9b8668bcde@xymon.invalid> Subject: Re: [hobbit] Sun Grid Engine monitoring Hmm, i didn't run mrtg ... How can i do it for sge ? .. i want to graph e.g jobs in the queue for each node, project or queue .. ... everything i can do :-) Or is it maybe possible to create graphs with the data of sge.sh script ? thanks & cheers martin On Fri, 10 Oct 2008, michael nemeth wrote:Ok! well I run mrtg too so I can do that. Also I thought I try creating graphs for the sge.sh when it's implemented. I've done custom graphs before (clearcase). As I said I know little about SGE and the SGE support person knows little about hobbit. Deal, Richard wrote:What did you want to graph. I use mrtg to graph global she stats Sent from a portable system with a small keyboard. On Oct 9, 2008, at 5:51 PM, "Martin Flemming" <user-f286aaa49a76@xymon.invalid> wrote:Yep, i use it too ... but unfortunatley it's without trending graphs .. Got anybody a solution for it ? .. i'm very interested :-) cheers, martin On Thu, 9 Oct 2008, rdeal wrote:It is called sge.sh http://www.deadcat.net/viewfile.php?fileid=920 And we run it under hobbit now. RichardFrom: Galen Johnson <user-87f955643e3d@xymon.invalid> Reply-To: <user-ae9b8668bcde@xymon.invalid> Date: Thu, 9 Oct 2008 14:57:10 -0400 To: "user-ae9b8668bcde@xymon.invalid" <user-ae9b8668bcde@xymon.invalid> Subject: RE: [hobbit] Sun Grid Engine monitoring Where on deadcat? I can't find anything that mentions it (a search on grid on Deacat turns up something for the California power grid). Most monitors from deadcat should work with little to no modification for Hobbit. Also, Hobbit will monitor whatever you tell it so the sky's the limit there...or in this case the scripter is the limit. =G= -----Original Message----- From: michael nemeth [mailto:user-609d3fab5b2d@xymon.invalid] Sent: Thursday, October 09, 2008 2:46 PM To: user-ae9b8668bcde@xymon.invalid Subject: [hobbit] Sun Grid Engine monitoring While I not been involved in the effort yet,we are about to bring as "farm" under Sun Grid Engine in to production. Anyone doing any monitoring like this? I saw a script on deadcat. I really know little about it but said Id check into what monitoring and metrics could be done by hobbit.Gruss Martin Flemming Martin Flemming DESY / IT office : Building 2b / 008a Notkestr. 85 phone : XXX - XXXX - XXXX 22603 Hamburg mail : user-f286aaa49a76@xymon.invalidGruss Martin Flemming Martin Flemming DESY / IT office : Building 2b / 008a Notkestr. 85 phone : XXX - XXXX - XXXX 22603 Hamburg mail : user-f286aaa49a76@xymon.invalidGruss Martin Flemming Martin Flemming DESY / IT office : Building 2b / 008a Notkestr. 85 phone : XXX - XXXX - XXXX 22603 Hamburg mail : user-f286aaa49a76@xymon.invalid
Gruss
Martin Flemming
Martin Flemming
DESY / IT office : Building 2b / 008a
Notkestr. 85 phone : XXX - XXXX - XXXX
22603 Hamburg mail : user-f286aaa49a76@xymon.invalid
list Martin Flemming
Nice, the update work's ... unfortunatley, i've to change the command qstat -s r to qhost -j -h because i've got no output for qstat ... don't know why .. .. for the mrtg- and graph-question i will be answer/ask again, if i've got time test it ... :-( martin
▸
On Thu, 16 Oct 2008, Martin Flemming wrote:
Nice, that will be easier and quicker to test it, Thanks ! cheers, martin On Wed, 15 Oct 2008, rdeal wrote:I just put an upgrade to the test on deadcat yesterday to version 0.3e... RichardFrom: Martin Flemming <user-f286aaa49a76@xymon.invalid> Reply-To: <user-ae9b8668bcde@xymon.invalid> Date: Wed, 15 Oct 2008 22:58:46 +0200 (CEST) To: <user-ae9b8668bcde@xymon.invalid> Subject: Re: [hobbit] Sun Grid Engine monitoringThanks, i will test it and give feedback .. :-).. unfortunatley, i'm short in time for testing very short :-( cheers, martin On Fri, 10 Oct 2008, rdeal wrote:We have several queues, primary are default, fast, medium.The config file is pretty simple:Unscaled[_]: yTarget[sge_1]: `/local/packages/IT/MRTG/bin/qgraph.sh both`MaxBytes[sge_1]: 625 AbsMax[sge_1]: 100000000 ShortLegend[sge_1]: Jobs YLegend[sge_1]: jobs Options[sge_1]: absolute, gauge, noinfo, nopercent, growright, > > integer, unknaszero Title[sge_1]: Current Jobs on JCVI GRID Legend1[sge_1]: Running Legend2[sge_1]: Queued Legend3[sge_1]: Peak running Legend4[sge_1]: Peak queued LegendI[sge_1]: running LegendO[sge_1]: queued Colours[sge_1]: GREEN#00eb0c,BLUE#0000ff,GRAY#AAAAAA,VIOLET#ff00ff PageTop[sge_1]: <H1>Current Jobs on JCVI GRID</H1> <TABLE> <TR><TD>Maintainer:</TD> <TD>user-f6f804cb0a50@xymon.invalid</TD></TR> <TR><TD>Description:</TD><TD>Number of current SGE Jobs running on > > the JCVI SGE GRID</TD></TR> </TABLE> routers.cgi*Options[sge_1]: noabsmax nodetailTarget[sge_7]: `/local/packages/IT/MRTG/bin/qgraph.sh medium`MaxBytes[sge_7]: 354 AbsMax[sge_7]: 100000000 ShortLegend[sge_7]: Jobs YLegend[sge_7]: jobs Options[sge_7]: absolute, gauge, noinfo, nopercent, growright, > > integer, unknaszero Title[sge_7]: Current Jobs in medium.q and fast.q Legend1[sge_7]: Medium Legend2[sge_7]: Fast Legend3[sge_7]: Peak medium Legend4[sge_7]: Peak fast LegendI[sge_7]: medium LegendO[sge_7]: fast Colours[sge_7]: GREEN#00eb0c,BLUE#0000ff,GRAY#AAAAAA,VIOLET#ff00ff PageTop[sge_7]: <H1>Current Jobs on JCVI GRID</H1> <TABLE> <TR><TD>Maintainer:</TD> <TD>user-f6f804cb0a50@xymon.invalid</TD></TR> <TR><TD>Description:</TD><TD>Number of current SGE Jobs in the > > fast.q and medium.q</TD></TR> </TABLE> routers.cgi*Options[sge_7]: noabsmax nodetailThe script is rather simple: # !/bin/sh# > > > > case "$1" in test ) echo 50 echo 20 ;; total ) echo $T echo 0 ;; running ) echo $R echo 0 ;; msc ) T=`/usr/local/bin/qstat -q fast.msc.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` R=`/usr/local/bin/qstat -q msc.q -s r | /usr/bin/tail +3 | > > /usr/bin/wc -l` echo $R echo $T ;; medium ) T=`/usr/local/bin/qstat -q fast.q -s r | /usr/bin/tail +3 | > > /usr/bin/wc -l` R=`/usr/local/bin/qstat -q medium.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` echo $R echo $T ;; fast ) T=`/usr/local/bin/qstat -q default.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` R=`/usr/local/bin/qstat -q fast.q -s r | /usr/bin/tail +3 | > > /usr/bin/wc -l` echo $R echo $T ;; desktop ) T=`/usr/local/bin/qstat -q desktop.q -s r | /usr/bin/tail +3 | /usr/bin/wc -l` R=`/usr/local/bin/qstat -q fast.q -s r | /usr/bin/tail +3 | > > /usr/bin/wc -l` echo $R echo $T ;; jtc ) T=`ssh wasp "use sgejcvi; qstat -g dt" | /usr/bin/tail +3 | > > /usr/bin/wc -l` R=`ssh wasp "use sgejcvi; qstat -s r" | /usr/bin/tail +3 | > > /usr/bin/wc -l` echo $R echo $T ;; * | both ) T=`/usr/local/bin/qstat -g dt | /usr/bin/tail +3 | /usr/bin/wc -l` R=`/usr/local/bin/qstat -s r | /usr/bin/tail +3 | /usr/bin/wc -l` echo $R echo $T ;; esacecho foo echo SGEThe two graphs configured above:From: Martin Flemming <user-f286aaa49a76@xymon.invalid>Reply-To: <user-ae9b8668bcde@xymon.invalid> Date: Fri, 10 Oct 2008 11:46:29 +0200 (CEST) To: <user-ae9b8668bcde@xymon.invalid> Subject: Re: [hobbit] Sun Grid Engine monitoringHmm, i didn't run mrtg ...How can i do it for sge ? .. i want to graph e.g jobs in the queue for each node, project or > > > queue .. ... everything i can do :-) Or is it maybe possible to create graphs with the data of sge.sh > > > script ? thanks & cheers martin On Fri, 10 Oct 2008, michael nemeth wrote:Ok! well I run mrtg too so I can do that. Also I thought I try > > > > creating graphs for the sge.sh when it's implemented. I've done custom graphs before (clearcase).As I said I know little about SGE and the SGE support person knows > > > > little about hobbit.Deal, Richard wrote:What did you want to graph. I use mrtg to graph global she > > > > > statsSent from a portable system with a small keyboard. On Oct 9, 2008, at 5:51 PM, "Martin Flemming" > > > > > <user-f286aaa49a76@xymon.invalid> wrote:Yep, i use it too ... but unfortunatley it's without trending > > > > > > graphs ..Got anybody a solution for it ? .. i'm very interested :-) cheers, martin On Thu, 9 Oct 2008, rdeal wrote:It is called sge.sh http://www.deadcat.net/viewfile.php?fileid=920And we run it under hobbit now. RichardFrom: Galen Johnson <user-87f955643e3d@xymon.invalid>Reply-To: <user-ae9b8668bcde@xymon.invalid> Date: Thu, 9 Oct 2008 14:57:10 -0400 To: "user-ae9b8668bcde@xymon.invalid" <user-ae9b8668bcde@xymon.invalid> Subject: RE: [hobbit] Sun Grid Engine monitoringWhere on deadcat? I can't find anything that mentions it > > > > > > > > (a search on grid onDeacat turns up something for the California power grid). > > > > > > > > Most monitors from deadcat should work with little to no modification for > > > > > > > > Hobbit. Also, Hobbit will monitor whatever you tell it so the sky's the limit > > > > > > > > there...or in this case the scripter is the limit.=G= -----Original Message-----From: michael nemeth [mailto:user-609d3fab5b2d@xymon.invalid] Sent: Thursday, October 09, 2008 2:46 PM To: user-ae9b8668bcde@xymon.invalid Subject: [hobbit] Sun Grid Engine monitoringWhile I not been involved in the effort yet,we are about > > > > > > > > to bring as"farm" under Sun Grid Engine in to production. Anyone > > > > > > > > doing any monitoring like this? I saw a script on deadcat. I > > > > > > > > really know little about it but said Id check into what monitoring > > > > > > > > and metrics could be done by hobbit.GrussMartin FlemmingMartin Flemming DESY / IT office : Building 2b / 008a Notkestr. 85 phone : XXX - XXXX - XXXX 22603 Hamburg mail : user-f286aaa49a76@xymon.invalidGrussMartin FlemmingMartin Flemming DESY / IT office : Building 2b / 008a Notkestr. 85 phone : XXX - XXXX - XXXX 22603 Hamburg mail : user-f286aaa49a76@xymon.invalidGrussMartin FlemmingMartin Flemming DESY / IT office : Building 2b / 008a Notkestr. 85 phone : XXX - XXXX - XXXX 22603 Hamburg mail : user-f286aaa49a76@xymon.invalidGruss Martin Flemming Martin Flemming DESY / IT office : Building 2b / 008a Notkestr. 85 phone : XXX - XXXX - XXXX 22603 Hamburg mail : user-f286aaa49a76@xymon.invalid
Gruss
Martin Flemming
Martin Flemming
DESY / IT office : Building 2b / 008a
Notkestr. 85 phone : XXX - XXXX - XXXX
22603 Hamburg mail : user-f286aaa49a76@xymon.invalid
list Jonathan B. Horen
With the changes to Xymon/4.3.x (perhaps also to /4.3.x), the sge.sh script on Xymonton doesn't work. Has anyone played with it recently and gotten it updated? -- JONATHAN B. HOREN ARSC/LSI Systems Administrator WRRB/008-001 T: (XXX) XXX-XXXX E: user-12d4882938ba@xymon.invalid *"After Tuesday, even the calendar says W T F!!"*
list Andrew Rankin
You're welcome to try this one I wrote out, it works well for me: http://www.balldawg.net/files/bb-sge.tar.bz2 Andrew
▸
On Thu, Apr 7, 2011 at 4:57 PM, Jonathan B. Horen <user-12d4882938ba@xymon.invalid>wrote:
With the changes to Xymon/4.3.x (perhaps also to /4.3.x), the sge.sh script on Xymonton doesn't work. Has anyone played with it recently and gotten it updated? -- JONATHAN B. HOREN ARSC/LSI Systems Administrator WRRB/008-001 T: (XXX) XXX-XXXX E: user-12d4882938ba@xymon.invalid *"After Tuesday, even the calendar says W T F!!"*
