client problems
list Scot Kreienkamp
Hi everyone, Due to some frustrations with the existing clients I have decided to have a go at rolling my own. In the process I have run into some strange behavior with the server side data collector/processor that I've been struggling with for over a week now that I could really use some help with. I've been searching the man pages and the email archives and haven't been able to find anything like what I've run into. My first try with sending reports was with the CPU column. After figuring out that the server was crashing because my lines were too long, I am able to send in a complete report as verified by the client data screen. However, the data collector isn't processing it correctly for reasons that I am unable to determine. First, once it gets past the last line of the cpu section on the web page there are a few processes that repeat. Second, the first line of text containing the up/load/procs message isn't bold like in other hosts. Third, the CPU load number is never added to the RRD. I have run several tcpdumps on other clients to capture their submissions and I was able to fix some problems by comparing mine to those, but now mine looks identical from what I can tell. Here is what the top and bottom of the pages look like: The last 6 lines are duplicates of the lines above. That is not included in the data that was sent though, so how is it getting it? Also, why isn't the value being picked up for the RRD? Here's my client data report: [collector:] client corpdskreien,na,lzb,hq.bbwin win32 [date] Mon June 27 13:37:05 2011 [osversion] Microsoft Windows 7 X64 Service Pack 0 Build 7600 [cpu] up: 2 days, 1 users, 73 procs, load=1% CPU PID Image Name Memory Owner 0% 4 System 56280K 0% 332 smss.exe 1324K SYSTEM 0% 420 csrss.exe 4924K SYSTEM 0% 524 wininit.exe 4628K SYSTEM 0% 564 services.exe 11432K SYSTEM 0% 584 lsass.exe 18472K SYSTEM 0% 592 lsm.exe 6528K SYSTEM 0% 708 svchost.exe 10092K SYSTEM 0% 840 svchost.exe 9776K NETWORK SERVICE 0% 944 svchost.exe 20036K LOCAL SERVICE 0% 988 svchost.exe 137268K SYSTEM 0% 1016 svchost.exe 41676K SYSTEM 0% 424 audiodg.exe 17672K LOCAL SERVICE 0% 1084 svchost.exe 16328K LOCAL SERVICE 0% 1180 Smc.exe 9316K SYSTEM 0% 1240 svchost.exe 29444K NETWORK SERVICE 0% 1304 ccSvcHst.exe 2696K SYSTEM 0% 1524 spoolsv.exe 17628K SYSTEM 0% 1560 svchost.exe 14452K LOCAL SERVICE 0% 1684 atashost.exe 3624K SYSTEM 0% 1716 BESClient.exe 7108K SYSTEM 0% 1748 svchost.exe 10344K LOCAL SERVICE 0% 1788 mdm.exe 5724K SYSTEM 0% 1840 MotoHelper.exe 23804K SYSTEM 0% 432 Rtvscan.exe 808K SYSTEM 0% 1940 wsnm.exe 5904K SYSTEM 0% 2792 svchost.exe 5952K NETWORK SERVICE 0% 2584 SearchIndexer.exe 39820K SYSTEM 0% 2724 csrss.exe 30080K SYSTEM 0% 2020 winlogon.exe 6244K SYSTEM 0% 1520 taskhost.exe 10488K skreien 0% 684 dwm.exe 5964K skreien 0% 1952 explorer.exe 66160K skreien 0% 3332 Spark.exe 80640K skreien 0% 3388 BTTray.exe 9564K skreien 0% 3396 SnagIt32.exe 22072K skreien 0% 3420 openvpn-gui-1.0.3.exe 4948K skreien 0% 3432 jusched.exe 6896K skreien 0% 3440 ccApp.exe 748K skreien 0% 3552 AdobeARM.exe 10792K skreien 0% 3564 concentr.exe 6188K skreien 0% 3576 SmcGui.exe 7032K skreien 0% 3680 qttask.exe 3900K skreien 0% 3724 wfcrun32.exe 9064K skreien 0% 3760 TscHelp.exe 3656K skreien 0% 3768 SnagPriv.exe 4124K skreien 0% 3792 ProtectionUtilSurrogate.exe 13808K skreien 0% 4348 jucheck.exe 10004K skreien 0% 3308 OUTLOOK.EXE 157256K skreien 0% 4212 OSPPSVC.EXE 13144K NETWORK SERVICE 0% 2628 vRD70.exe 127780K skreien 0% 4216 putty.exe 8896K skreien 0% 3672 iexplore.exe 43748K skreien 0% 2332 iexplore.exe 53600K skreien 0% 1928 BESClientUI.exe 1172K skreien 0% 3992 wireshark.exe 90848K skreien 0% 3480 iexplore.exe 54908K skreien 0% 2964 iexplore.exe 156008K skreien 0% 2640 PresentationFontCache.exe 23012K LOCAL SERVICE 0% 3112 taskmgr.exe 11796K skreien 0% 5500 dumpcap.exe 7172K skreien 0% 4048 conhost.exe 3464K skreien 0% 5440 iexplore.exe 118652K skreien 0% 5884 SciTE.exe 15576K skreien 0% 4648 WmiPrvSE.exe 22620K SYSTEM 0% 5408 AutoIt3Help.exe 20852K skreien 0% 5592 SearchProtocolHost.exe 16488K skreien 0% 6080 SearchFilterHost.exe 5888K SYSTEM 0% 1872 AutoIt3Wrapper.exe 10552K skreien 0% 2388 AutoIt3_x64.exe 24936K skreien 0% 908 AutoIt3Wrapper.exe 8548K skreien 0% 1704 WmiPrvSE.exe 7456K NETWORK SERVICE [clock] epoch: 1309181827 local: Mon June 27 13:37:05 2011 I can send them in as client side reports and all is well, but it doesn't work when using the data collector/client message. Oh... also, how do I pull the client side config from the xymon server? Thanks for the help. Scot Kreienkamp This message is intended only for the individual or entity to which it is addressed. It may contain privileged, confidential information which is exempt from disclosure under applicable laws. If you are not the intended recipient, please note that you are strictly prohibited from disseminating or distributing this information (other than to the intended recipient) or copying this information. If you have received this communication in error, please notify us immediately by e-mail or by telephone at the above number. Thank you.
list Scot Kreienkamp
Anyone? Bueller? Scot Kreienkamp
▸
From: Scot Kreienkamp
Sent: Monday, June 27, 2011 2:07 PM
To: 'xymon at xymon.com'
Subject: client problems
Hi everyone,
Due to some frustrations with the existing clients I have decided to
have a go at rolling my own. In the process I have run into some
strange behavior with the server side data collector/processor that I've
been struggling with for over a week now that I could really use some
help with. I've been searching the man pages and the email archives and
haven't been able to find anything like what I've run into.
My first try with sending reports was with the CPU column. After
figuring out that the server was crashing because my lines were too
long, I am able to send in a complete report as verified by the client
data screen. However, the data collector isn't processing it correctly
for reasons that I am unable to determine. First, once it gets past the
last line of the cpu section on the web page there are a few processes
that repeat. Second, the first line of text containing the
up/load/procs message isn't bold like in other hosts. Third, the CPU
load number is never added to the RRD. I have run several tcpdumps on
other clients to capture their submissions and I was able to fix some
problems by comparing mine to those, but now mine looks identical from
what I can tell.
Here is what the top and bottom of the pages look like:
The last 6 lines are duplicates of the lines above. That is not
included in the data that was sent though, so how is it getting it?
Also, why isn't the value being picked up for the RRD?
Here's my client data report:
[collector:]
client corpdskreien,na,lzb,hq.bbwin win32
[date]
Mon June 27 13:37:05 2011
[osversion]
Microsoft Windows 7 X64 Service Pack 0 Build 7600
[cpu]
up: 2 days, 1 users, 73 procs, load=1%
CPU PID Image Name Memory Owner
0% 4 System 56280K
0% 332 smss.exe 1324K SYSTEM
0% 420 csrss.exe 4924K SYSTEM
0% 524 wininit.exe 4628K SYSTEM
0% 564 services.exe 11432K SYSTEM
0% 584 lsass.exe 18472K SYSTEM
0% 592 lsm.exe 6528K SYSTEM
0% 708 svchost.exe 10092K SYSTEM
0% 840 svchost.exe 9776K NETWORK SERVICE
0% 944 svchost.exe 20036K LOCAL SERVICE
0% 988 svchost.exe 137268K SYSTEM
0% 1016 svchost.exe 41676K SYSTEM
0% 424 audiodg.exe 17672K LOCAL SERVICE
0% 1084 svchost.exe 16328K LOCAL SERVICE
0% 1180 Smc.exe 9316K SYSTEM
0% 1240 svchost.exe 29444K NETWORK SERVICE
0% 1304 ccSvcHst.exe 2696K SYSTEM
0% 1524 spoolsv.exe 17628K SYSTEM
0% 1560 svchost.exe 14452K LOCAL SERVICE
0% 1684 atashost.exe 3624K SYSTEM
0% 1716 BESClient.exe 7108K SYSTEM
0% 1748 svchost.exe 10344K LOCAL SERVICE
0% 1788 mdm.exe 5724K SYSTEM
0% 1840 MotoHelper.exe 23804K SYSTEM
0% 432 Rtvscan.exe 808K SYSTEM
0% 1940 wsnm.exe 5904K SYSTEM
0% 2792 svchost.exe 5952K NETWORK SERVICE
0% 2584 SearchIndexer.exe 39820K SYSTEM
0% 2724 csrss.exe 30080K SYSTEM
0% 2020 winlogon.exe 6244K SYSTEM
0% 1520 taskhost.exe 10488K skreien
0% 684 dwm.exe 5964K skreien
0% 1952 explorer.exe 66160K skreien
0% 3332 Spark.exe 80640K skreien
0% 3388 BTTray.exe 9564K skreien
0% 3396 SnagIt32.exe 22072K skreien
0% 3420 openvpn-gui-1.0.3.exe 4948K skreien
0% 3432 jusched.exe 6896K skreien
0% 3440 ccApp.exe 748K skreien
0% 3552 AdobeARM.exe 10792K skreien
0% 3564 concentr.exe 6188K skreien
0% 3576 SmcGui.exe 7032K skreien
0% 3680 qttask.exe 3900K skreien
0% 3724 wfcrun32.exe 9064K skreien
0% 3760 TscHelp.exe 3656K skreien
0% 3768 SnagPriv.exe 4124K skreien
0% 3792 ProtectionUtilSurrogate.exe 13808K skreien
0% 4348 jucheck.exe 10004K skreien
0% 3308 OUTLOOK.EXE 157256K skreien
0% 4212 OSPPSVC.EXE 13144K NETWORK SERVICE
0% 2628 vRD70.exe 127780K skreien
0% 4216 putty.exe 8896K skreien
0% 3672 iexplore.exe 43748K skreien
0% 2332 iexplore.exe 53600K skreien
0% 1928 BESClientUI.exe 1172K skreien
0% 3992 wireshark.exe 90848K skreien
0% 3480 iexplore.exe 54908K skreien
0% 2964 iexplore.exe 156008K skreien
0% 2640 PresentationFontCache.exe 23012K LOCAL SERVICE
0% 3112 taskmgr.exe 11796K skreien
0% 5500 dumpcap.exe 7172K skreien
0% 4048 conhost.exe 3464K skreien
0% 5440 iexplore.exe 118652K skreien
0% 5884 SciTE.exe 15576K skreien
0% 4648 WmiPrvSE.exe 22620K SYSTEM
0% 5408 AutoIt3Help.exe 20852K skreien
0% 5592 SearchProtocolHost.exe 16488K skreien
0% 6080 SearchFilterHost.exe 5888K SYSTEM
0% 1872 AutoIt3Wrapper.exe 10552K skreien
0% 2388 AutoIt3_x64.exe 24936K skreien
0% 908 AutoIt3Wrapper.exe 8548K skreien
0% 1704 WmiPrvSE.exe 7456K NETWORK SERVICE
[clock]
epoch: 1309181827
local: Mon June 27 13:37:05 2011
I can send them in as client side reports and all is well, but it
doesn't work when using the data collector/client message.
Oh... also, how do I pull the client side config from the xymon server?
Thanks for the help.
Scot Kreienkamp
This message is intended only for the individual or entity to which it is addressed. It may contain privileged, confidential information which is exempt from disclosure under applicable laws. If you are not the intended recipient, please note that you are strictly prohibited from disseminating or distributing this information (other than to the intended recipient) or copying this information. If you have received this communication in error, please notify us immediately by e-mail or by telephone at the above number. Thank you.
list Galen Johnson
On 06/29/2011 09:58 PM, Scot Kreienkamp wrote:
Anyone? Bueller? Scot Kreienkamp
Snipped for the sake of brevity. Have you looked at the tutorial page on Xymonton.org? There aren't many but one of them mught help you shake something loose. =G=
list Stef Coene
▸
On Monday 27 June 2011, Scot Kreienkamp wrote:
Hi everyone, Due to some frustrations with the existing clients I have decided to have a go at rolling my own.
I'm wondering for what OS are you writing the client? Stef
list Scot Kreienkamp
I have... there's all kinds of information there on interacting with Xymon, including building your own server modules and custom tests. Nothing to help with interacting with the ones that come with the standard build and install of the server portion of Xymon. I can send in client reports of all kinds... but I am having specific problems with the formatting for the client data collector channel on the Xymon server. I can't find any information anywhere on that, or what patterns the server is looking for, etc. I have the option of doing everything client side, but why should I when that awesome module is already there on the server if I can just figure out why it doesn't like my formatting? In the end I may have to do just that though, or more likely just give up if I can't get any help with interacting with the stock server channels. I refuse to spend hours trying to reinvent multiple wheels. :-( -----Original Message----- From: xymon-bounces at xymon.com [mailto:xymon-bounces at xymon.com] On Behalf Of Galen Johnson Sent: Friday, July 01, 2011 7:52 PM To: xymon at xymon.com Subject: Re: [Xymon] client problems
▸
On 06/29/2011 09:58 PM, Scot Kreienkamp wrote:Anyone? Bueller? Scot Kreienkamp
Snipped for the sake of brevity. Have you looked at the tutorial page on Xymonton.org? There aren't many but one of them mught help you shake something loose. =G= This message is intended only for the individual or entity to which it is addressed. It may contain privileged, confidential information which is exempt from disclosure under applicable laws. If you are not the intended recipient, please note that you are strictly prohibited from disseminating or distributing this information (other than to the intended recipient) or copying this information. If you have received this communication in error, please notify us immediately by e-mail or by telephone at the above number. Thank you.
list Stef Coene
▸
On Sunday 03 July 2011, Scot Kreienkamp wrote:
I have... there's all kinds of information there on interacting with Xymon, including building your own server modules and custom tests. Nothing to help with interacting with the ones that come with the standard build and install of the server portion of Xymon. I can send in client reports of all kinds... but I am having specific problems with the formatting for the client data collector channel on the Xymon server. I can't find any information anywhere on that, or what patterns the server is looking for, etc. I have the option of doing everything client side, but why should I when that awesome module is already there on the server if I can just figure out why it doesn't like my formatting? In the end I may have to do just that though, or more likely just give up if I can't get any help with interacting with the stock server channels. I refuse to spend hours trying to reinvent multiple wheels. :-(
Can you post some more information? Like the OS of your client, the script you use, the output of the script, ... I have also written a custom client for powerHA clustering on AIX. Stef
list Scot Kreienkamp
My client OS is Win7. The script is written in AutoIt and is, right now at least, a proof of concept that I'd be embarrassed to share publicly as it's pretty bad. The output of the script is between the lines below. I just open a TCP connection to port 1984 and send the lines across. The file is written in *nix format with LF at the end of each line so I don't have to alter it during the send operation. client test,hq.bbwin win32
▸
[date]
Mon June 27 13:37:05 2011
[osversion]
Microsoft Windows 7 X64 Service Pack 0 Build 7600
[cpu]
up: 2 days, 1 users, 73 procs, load=1%
CPU PID Image Name Memory Owner
0% 4 System 56280K
0% 332 smss.exe 1324K SYSTEM
0% 420 csrss.exe 4924K SYSTEM
0% 524 wininit.exe 4628K SYSTEM
0% 564 services.exe 11432K SYSTEM
0% 584 lsass.exe 18472K SYSTEM
0% 592 lsm.exe 6528K SYSTEM
0% 708 svchost.exe 10092K SYSTEM
0% 840 svchost.exe 9776K NETWORK SERVICE
0% 944 svchost.exe 20036K LOCAL SERVICE
0% 988 svchost.exe 137268K SYSTEM
0% 1016 svchost.exe 41676K SYSTEM
0% 424 audiodg.exe 17672K LOCAL SERVICE
0% 1084 svchost.exe 16328K LOCAL SERVICE
0% 1180 Smc.exe 9316K SYSTEM
0% 1240 svchost.exe 29444K NETWORK SERVICE
0% 1304 ccSvcHst.exe 2696K SYSTEM
0% 1524 spoolsv.exe 17628K SYSTEM
0% 1560 svchost.exe 14452K LOCAL SERVICE
0% 1684 atashost.exe 3624K SYSTEM
0% 1716 BESClient.exe 7108K SYSTEM
0% 1748 svchost.exe 10344K LOCAL SERVICE
0% 1788 mdm.exe 5724K SYSTEM
0% 1840 MotoHelper.exe 23804K SYSTEM
0% 432 Rtvscan.exe 808K SYSTEM
0% 1940 wsnm.exe 5904K SYSTEM
0% 2792 svchost.exe 5952K NETWORK SERVICE
0% 2584 SearchIndexer.exe 39820K SYSTEM
0% 2724 csrss.exe 30080K SYSTEM
0% 2020 winlogon.exe 6244K SYSTEM
0% 1520 taskhost.exe 10488K skreien
0% 684 dwm.exe 5964K skreien
0% 1952 explorer.exe 66160K skreien
0% 3332 Spark.exe 80640K skreien
0% 3388 BTTray.exe 9564K skreien
0% 3396 SnagIt32.exe 22072K skreien
0% 3420 openvpn-gui-1.0.3.exe 4948K skreien
0% 3432 jusched.exe 6896K skreien
0% 3440 ccApp.exe 748K skreien
0% 3552 AdobeARM.exe 10792K skreien
0% 3564 concentr.exe 6188K skreien
0% 3576 SmcGui.exe 7032K skreien
0% 3680 qttask.exe 3900K skreien
0% 3724 wfcrun32.exe 9064K skreien
0% 3760 TscHelp.exe 3656K skreien
0% 3768 SnagPriv.exe 4124K skreien
0% 3792 ProtectionUtilSurrogate.exe 13808K skreien
0% 4348 jucheck.exe 10004K skreien
0% 3308 OUTLOOK.EXE 157256K skreien
0% 4212 OSPPSVC.EXE 13144K NETWORK SERVICE
0% 2628 vRD70.exe 127780K skreien
0% 4216 putty.exe 8896K skreien
0% 3672 iexplore.exe 43748K skreien
0% 2332 iexplore.exe 53600K skreien
0% 1928 BESClientUI.exe 1172K skreien
0% 3992 wireshark.exe 90848K skreien
0% 3480 iexplore.exe 54908K skreien
0% 2964 iexplore.exe 156008K skreien
0% 2640 PresentationFontCache.exe 23012K LOCAL SERVICE
0% 3112 taskmgr.exe 11796K skreien
0% 5500 dumpcap.exe 7172K skreien
0% 4048 conhost.exe 3464K skreien
0% 5440 iexplore.exe 118652K skreien
0% 5884 SciTE.exe 15576K skreien
0% 4648 WmiPrvSE.exe 22620K SYSTEM
0% 5408 AutoIt3Help.exe 20852K skreien
0% 5592 SearchProtocolHost.exe 16488K skreien
0% 6080 SearchFilterHost.exe 5888K SYSTEM
0% 1872 AutoIt3Wrapper.exe 10552K skreien
0% 2388 AutoIt3_x64.exe 24936K skreien
0% 908 AutoIt3Wrapper.exe 8548K skreien
0% 1704 WmiPrvSE.exe 7456K NETWORK SERVICE
[clock]
epoch: 1309181827
local: Mon June 27 13:37:05 2011
Thanks for looking Stef.
Scot Kreienkamp
user-462cf0b6d846@xymon.invalid
-----Original Message-----
From: xymon-bounces at xymon.com [mailto:xymon-bounces at xymon.com] On Behalf
Of Stef Coene
Sent: Sunday, July 03, 2011 4:43 AM
▸
To: xymon at xymon.com
Subject: Re: [Xymon] client problems
On Sunday 03 July 2011, Scot Kreienkamp wrote:I have... there's all kinds of information there on interacting with Xymon, including building your own server modules and custom tests. Nothing to help with interacting with the ones that come with the standard build and install of the server portion of Xymon. I can send in client reports of all kinds... but I am having specific problems with the formatting for the client data collector channel on the Xymon server. I can't find any information anywhere on that, or what patterns the server is looking for, etc. I have the option of doing everything client side, but why should I when that awesome module is already there on the server if I can just figure out why it doesn't like my formatting? In the end I may have to do just that though, or more likely just give up if I can't get any help with interacting with the stock server channels. I refuse to spend hours trying to reinvent multiple wheels. :-(
Can you post some more information? Like the OS of your client, the script you use, the output of the script, ... I have also written a custom client for powerHA clustering on AIX. Stef This message is intended only for the individual or entity to which it is addressed. It may contain privileged, confidential information which is exempt from disclosure under applicable laws. If you are not the intended recipient, please note that you are strictly prohibited from disseminating or distributing this information (other than to the intended recipient) or copying this information. If you have received this communication in error, please notify us immediately by e-mail or by telephone at the above number. Thank you.
list Buchan Milne
▸
On Sunday, 3 July 2011 05:22:17 Scot Kreienkamp wrote:
I have... there's all kinds of information there on interacting with Xymon, including building your own server modules and custom tests. Nothing to help with interacting with the ones that come with the standard build and install of the server portion of Xymon.
Feel free to contribute some documentation for this ...
▸
I can send in client reports of all kinds... but I am having specific problems with the formatting for the client data collector channel on the Xymon server. I can't find any information anywhere on that, or what patterns the server is looking for, etc. I have the option of doing everything client side, but why should I when that awesome module is already there on the server if I can just figure out why it doesn't like my formatting?
You can either use the formats of existing supported clients, or read the source to see what formats are supported, or contribute code to support your format.
▸
In the end I may have to do just that though, or more likely just give up if I can't get any help with interacting with the stock server channels. I refuse to spend hours trying to reinvent multiple wheels. :-(
BTW., which clients did you try? Regards, Buchan
list Scot Kreienkamp
Got to understand the formats myself first. :) Although I think it's more a question of formatting of my data versus the actual data format, IE sections. I'm trying to make a simple client of my own with AutoIt due to some frustrations with supporting Windows 2008 clients with Xymon. I'm trying to match the format of the win32 based clients... that's where my frustration is coming in. I've matched the format down to the last carriage return by doing dumps on the data reporting in from other win32 based clients and comparing them to my own, but it's not being read the same by the collector module on the server for reasons that I cannot understand. If I send it in as a client status report everything works perfectly with no modifications to the report data itself. I tried the PS client and the BBWin client. The PS client is too heavy and in its current revision is unreliable in my environment. We were conversing on the list and David Baldwin was going to work on it, but even if it's fixed so it's reliable it would still be too heavy for my environment. In the instances where I've loaded it the users have seen too much impact. The BBWin client doesn't report networking data correctly on Win2008 and has been abandoned for years. That means I have no way to monitor Windows 2008, and I have more coming online daily. Scot Kreienkamp
▸
-----Original Message-----
From: Buchan Milne [mailto:user-9b139aff4dec@xymon.invalid]
Sent: Thursday, July 07, 2011 10:49 AM
To: xymon at xymon.com
Cc: Scot Kreienkamp
Subject: Re: [Xymon] client problems
On Sunday, 3 July 2011 05:22:17 Scot Kreienkamp wrote:I have... there's all kinds of information there on interacting with Xymon, including building your own server modules and custom tests. Nothing to help with interacting with the ones that come with the standard build and install of the server portion of Xymon.
Feel free to contribute some documentation for this ...
I can send in client reports of all kinds... but I am having specific problems with the formatting for the client data collector channel on the Xymon server. I can't find any information anywhere on that, or what patterns the server is looking for, etc. I have the option of doing everything client side, but why should I when that awesome module is already there on the server if I can just figure out why it doesn't like my formatting?
You can either use the formats of existing supported clients, or read the source to see what formats are supported, or contribute code to support your format.
In the end I may have to do just that though, or more likely just give up if I can't get any help with interacting with the stock server channels. I refuse to spend hours trying to reinvent multiple wheels. :-(
BTW., which clients did you try? Regards, Buchan This message is intended only for the individual or entity to which it is addressed. It may contain privileged, confidential information which is exempt from disclosure under applicable laws. If you are not the intended recipient, please note that you are strictly prohibited from disseminating or distributing this information (other than to the intended recipient) or copying this information. If you have received this communication in error, please notify us immediately by e-mail or by telephone at the above number. Thank you.
list Malcolm Hunter
Hi Scott,
▸
----- Original Message ----- From: Scot Kreienkamp Sent: 07/07/11 04:39 PM To: Buchan Milne, xymon at xymon.com Subject: Re: [Xymon] client problems

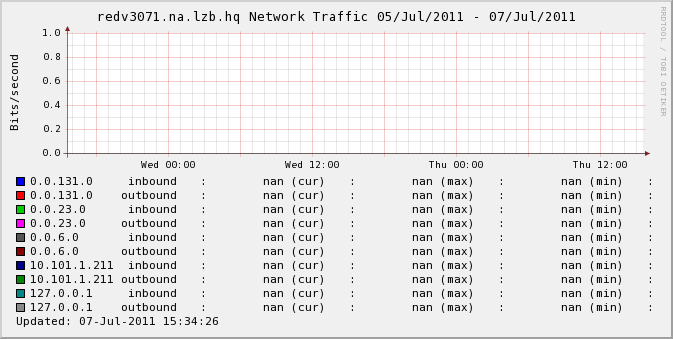

The BBWin client doesn't report networking data correctly on Win2008 and has been abandoned for years. That means I have no way to monitor Windows 2008, and I have more coming online daily.
I'm using BBWin on Windows 2008 (32- and 64-bit). What exactly is the problem? I'm now on the BBWin project, so maybe can work on a resolution. Regards, Malcolm
list Scot Kreienkamp
Hi Malcolm, A solution would be much appreciated. Thank you for taking a look. The problem is in the reporting of the network info for BBWin on Windows 2008. I've attached a graph from one of my systems running 2008 to illustrate, but the basic problem is the ifstat section reports include junk with every report. Here's one from the same host as the graph: [ifstat] 10.101.1.211 0 0 127.0.0.1 0 0 253.255.255.255 0 0 Notice the last entry. That keeps changing as well. After the client is running for a while I'll have 6-10 ifstat graphs with bogus addresses on them in the trends pages. Scot Kreienkamp Senior Systems Engineer
▸
user-462cf0b6d846@xymon.invalid
-----Original Message-----
From: xymon-bounces at xymon.com [mailto:xymon-bounces at xymon.com] On Behalf
Of Malcolm Hunter
Sent: Thursday, July 07, 2011 2:51 PM
▸
To: xymon at xymon.com
Subject: Re: [Xymon] client problems
Hi Scott,
----- Original Message ----- From: Scot Kreienkamp Sent: 07/07/11 04:39 PM To: Buchan Milne, xymon at xymon.com Subject: Re: [Xymon] client problems
The BBWin client doesn't report networking data correctly on Win2008 and has been abandoned for years. That means I have no way to monitor Windows 2008, and I have more coming online daily.
I'm using BBWin on Windows 2008 (32- and 64-bit). What exactly is the problem? I'm now on the BBWin project, so maybe can work on a resolution. Regards, Malcolm This message is intended only for the individual or entity to which it is addressed. It may contain privileged, confidential information which is exempt from disclosure under applicable laws. If you are not the intended recipient, please note that you are strictly prohibited from disseminating or distributing this information (other than to the intended recipient) or copying this information. If you have received this communication in error, please notify us immediately by e-mail or by telephone at the above number. Thank you.
Attachments (1)
attachment.pnglist Malcolm Hunter
Hi Scot,
▸
----- Original Message ----- From: Scot Kreienkamp Sent: 07/07/11 08:39 PM To: Malcolm Hunter, xymon at xymon.com Subject: RE: [Xymon] client problems
The problem is in the reporting of the network info for BBWin on Windows 2008. I've attached a graph from one of my systems running 2008 to illustrate, but the basic problem is the ifstat section reports include junk with every report. Here's one from the same host as the graph: [ifstat] 10.101.1.211 0 0 127.0.0.1 0 0 253.255.255.255 0 0
Yes, I can reproduce this on my Windows 7 PC as well. It appears to be a problem interpreting the output of netstat. Because Win7 and 2008 include IPv6, it's giving a different result. Malcolm
list Scot Kreienkamp
Hi Malcolm, Do you think you can update it to fix the problem? BBWin has other issues as well, mostly around logs from what I remember, but even so it's the best one out there that I'm aware of. I didn't think anyone was actively working on BBWin anymore. Anything you can share with us mere mortals? ;-) Sent from my iPad
▸
On Jul 7, 2011, at 6:42 PM, "Malcolm Hunter" <user-8c18ec239c05@xymon.invalid> wrote:
Hi Scot,----- Original Message ----- From: Scot Kreienkamp Sent: 07/07/11 08:39 PM To: Malcolm Hunter, xymon at xymon.com Subject: RE: [Xymon] client problemsThe problem is in the reporting of the network info for BBWin on Windows 2008. I've attached a graph from one of my systems running 2008 to illustrate, but the basic problem is the ifstat section reports include junk with every report. Here's one from the same host as the graph: [ifstat] 10.101.1.211 0 0 127.0.0.1 0 0 253.255.255.255 0 0Yes, I can reproduce this on my Windows 7 PC as well. It appears to be a problem interpreting the output of netstat. Because Win7 and 2008 include IPv6, it's giving a different result. Malcolm
This message is intended only for the individual or entity to which it is addressed. It may contain privileged, confidential information which is exempt from disclosure under applicable laws. If you are not the intended recipient, please note that you are strictly prohibited from disseminating or distributing this information (other than to the intended recipient) or copying this information. If you have received this communication in error, please notify us immediately by e-mail or by telephone at the above number. Thank you.
list Christoph Schug
On Thu, 7 Jul 2011 15:39:33 -0400, "Scot Kreienkamp" <user-462cf0b6d846@xymon.invalid>
▸
wrote:Hi Malcolm, A solution would be much appreciated. Thank you for taking a look. The problem is in the reporting of the network info for BBWin on Windows 2008. I've attached a graph from one of my systems running 2008 to illustrate, but the basic problem is the ifstat section reports include junk with every report. Here's one from the same host as the graph: [ifstat] 10.101.1.211 0 0 127.0.0.1 0 0 253.255.255.255 0 0
You might want to check out this patch http://sourceforge.net/mailarchive/forum.php?thread_name=user-e1f98345f06b@xymon.invalid&forum_name=bbwin-help Cheers -cs
list Malcolm Hunter
▸
----- Original Message ----- From: Christoph Schug Sent: 07/08/11 09:19 AM To: Scot Kreienkamp Subject: Re: [Xymon] client problems
The problem is in the reporting of the network info for BBWin on Windows 2008. I've attached a graph from one of my systems running 2008 to illustrate, but the basic problem is the ifstat section reports include junk with every report. Here's one from the same host as the graph: [ifstat] 10.101.1.211 0 0 127.0.0.1 0 0 253.255.255.255 0 0You might want to check out this patch http://sourceforge.net/mailarchive/forum.php?thread_name=user-e1f98345f06b@xymon.invalid&forum_name=bbwin-help
Thanks Christoph, this patch has now been applied to the source code in Subversion trunk. We're hoping to release the next version soon, so the fix will be included in that. Malcolm
