Capture and send data To Elasticsearch and Kibana 🔗 link

Hello, I just do a small work with Xymon in order to send status data to

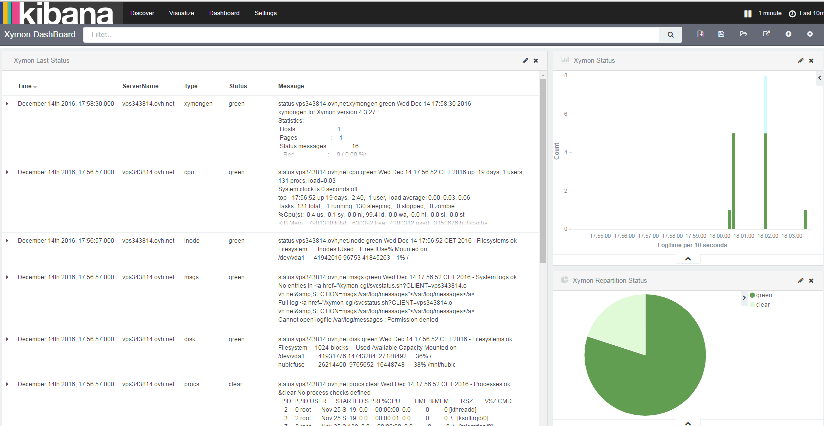

Elasticsearch. And with Kibana reporting is easy.


How it work ? Simple : With capture of status message (xymond_channel
--channel=status /home/xymon/server/ext/capture.sh ) script encode
 status message in json and send as document in elasticSearch.


Example of Mapping document status in elasticsearch :


"status"=> array(

                     "properties"=>array(

                          "ServerName"=> array("type"=> "string"),

                          "Type"=> array("type"=> "string"),

                          "Status"=> array("type"=> "string"),

                          "LastChange"=> array("type"=> "date","format"=>
"strict_date_optional_time"),

                          "LogTime"=> array("type"=> "date","format"=>
"strict_date_optional_time"),

                          "ValidTime"=> array("type"=> "date","format"=>
"strict_date_optional_time"),

                          "AckTime"=> array("type"=> "date","format"=>
"strict_date_optional_time"),

                          "DisableTime"=> array("type"=> "date","format"=>
"strict_date_optional_time"),

                          "Sender"=> array("type"=> "string"),

                          "DisableMSg"=> array("type"=> "string"),

                          "Message"=> array("type"=> "string")

                     )

                )


All is done with a 130 lines script. So simple to integrate in existing
environment and so powerfull usage of  Xymon/elasticsearch/Kibana


For those who don’t know kibana : https://www.elastic.co/products/kibana

}
?>

De : Peter Welter [mailto:user-f55666bd0d1e@xymon.invalid]
Envoyé : vendredi 23 décembre 2016 14:45
À : OUTTERYCK Francois
Cc : xymon at xymon.com
Objet : Re: [Xymon] Capture and send data To Elasticsearch and Kibana

Hi Francois,

Looks good, your sample. I am very interested in your integration efforts.

How do you select what is going to be inserted in the ELK stack? All status messages that Xymon receives?

And could you provide an example of the xymond_channel block in you task.cfg and the capture.sh?

Tasks.cfg probably is something like:

[es]
...
 CMD xymond_channel --channel=status /home/xymon/server/ext/capture.sh
...

And the capture.sh contains some curl script to the ELK stack?

Regards,

Peter

Hello, I just do a small work with Xymon in order to send status data to Elasticsearch. And with Kibana reporting is easy.

How it work ? Simple : With capture of status message (xymond_channel --channel=status /home/xymon/server/ext/capture.sh ) script encode  status message in json and send as document in elasticSearch.

Example of Mapping document status in elasticsearch :

"status"=> array(
                     "properties"=>array(
                          "ServerName"=> array("type"=> "string"),
                          "Type"=> array("type"=> "string"),
                          "Status"=> array("type"=> "string"),
                          "LastChange"=> array("type"=> "date","format"=> "strict_date_optional_time"),
                          "LogTime"=> array("type"=> "date","format"=> "strict_date_optional_time"),
                          "ValidTime"=> array("type"=> "date","format"=> "strict_date_optional_time"),
                          "AckTime"=> array("type"=> "date","format"=> "strict_date_optional_time"),
                          "DisableTime"=> array("type"=> "date","format"=> "strict_date_optional_time"),
                          "Sender"=> array("type"=> "string"),
                          "DisableMSg"=> array("type"=> "string"),
                          "Message"=> array("type"=> "string")
                     )
                )

All is done with a 130 lines script. So simple to integrate in existing environment and so powerfull usage of  Xymon/elasticsearch/Kibana

For those who don’t know kibana : https://www.elastic.co/products/kibana

user-ba0ce136dc99@xymon.invalid> wrote:

Hi Peter,


Examples of task.cfg configuration with status and stachg events :


[capture_status]

        ENVFILE /home/xymon/server/etc/xymonserver.cfg

        NEED xymond

        CMD xymond_channel --channel=status
/home/xymon/server/ext/capture.sh
--log=$XYMONSERVERLOGS/xymond_task_capture.log

        LOGFILE /var/log/xymon/lunch_capture.log


[capture_stachg]

        ENVFILE /home/xymon/server/etc/xymonserver.cfg

        NEED xymond

        CMD xymond_channel --channel=stachg
/home/xymon/server/ext/capture.sh
--log=$XYMONSERVERLOGS/xymond_task_capture_stachg.log

        LOGFILE /var/log/xymon/lunch_capture_stachg.log


Capture.sh script simple made to call a php script :


#!/bin/sh

/usr/bin/php /var/www/kibana/capture.php $@ </dev/stdin

/var/log/xymon/xymond_capture_php.log 2>&1

And capture.php make all job :


<?php

date_default_timezone_set('Europe/Paris');

$TODO=FALSE;

$ARRAY_COLLECTOR=array();

$COLLECTOR=null;


while (FALSE !== ($line = fgets(STDIN))) if ($line!='') {

     $tab=reduce_array($line);

     if (sizeof($tab)==0) continue;

     if ($line=="@@\n") {

          if ($TODO) {

                $metadata['Message']=implode('',$ARRAY_COLLECTOR);

                SendData($id,$metadata,$COLLECTOR);

                $TODO=FALSE;

                $COLLECTOR=null;

          }

     } else if (substr($tab[0],0,8)=='@@stachg') {

          if ($TODO) {

                $metadata['Message']=implode('',$ARRAY_COLLECTOR);

                SendData($id,$metadata,$COLLECTOR);

                $TODO=FALSE;

                $COLLECTOR=null;

          }

          /*     0           1         2     3        4      5
6        7      8         9         10         11            12
13               14                15            16

          /*
@@stachg#seq|timestamp|sender|origin|hostname|testname|expiretime|color|prevcolor|changetime|disabletime|disablemsg|downtimeactive|clienttstamp|modifiers
*/


          $COLLECTOR='stachg';

          $metadata=explode('|',$tab[0]);

          $sender=$metadata[2];

          $hostname=$metadata[3];

          $metadata=array(

                'Collector'=>$COLLECTOR,

                'Sender'=>$metadata[2],

                'ServerName'=>$metadata[4],

                'Type'=>$metadata[5],

                'Status'=>$metadata[7],

                'PrevStatus'=>$metadata[8],

                'LogTime'=>$metadata[1],

                'ValidTime'=>$metadata[6],

                'LastChange'=>$metadata[9],

                'DisableTime'=>$metadata[10],

                'DisableMSg'=>$metadata[11],

                'Message'=>''

          );


$id=$metadata['ServerName'].'_'.$metadata['Type'].'_'.$meta['LastChange'];

          $ARRAY_COLLECTOR=null;

        $ARRAY_COLLECTOR=array();

        $TODO=TRUE;

     } else if (substr($tab[0],0,8)=='@@status') {

          if ($TODO) {

                $metadata['Message']=implode('',$ARRAY_COLLECTOR);

                SendData($id,$metadata,$COLLECTOR);

                $TODO=FALSE;

                $COLLECTOR=null;

          }

          /*     0       1         2     3        4      5
6        7      8         9         10         11            12
13               14                15            16

          /*
@@status|timestamp|sender|origin|hostname|testname|expiretime|color|testflags|prevcolor|changetime|ackexpiretime|ackmessage|disableexpiretime|disablemessage|clientmsgtstamp|flapping
*/

          $COLLECTOR='status';

          $metadata=explode('|',$tab[0]);

          $sender=$metadata[2];

          $hostname=$metadata[3];

          $metadata=array(

                'Collector'=>$COLLECTOR,

                'Sender'=>$metadata[2],

                'ServerName'=>$metadata[4],

                'Type'=>$metadata[5],

                'Status'=>$metadata[7],

                'LogTime'=>$metadata[1],

                'ValidTime'=>$metadata[6],

                'LastChange'=>$metadata[10],

                'DisableTime'=>$metadata[13],

                'AckTime'=>$metadata[11],

                'DisableMSg'=>$metadata[14],

                'Message'=>''

          );

          $id=$metadata['ServerName'].'.'.$metadata['Type'];

          $ARRAY_COLLECTOR=null;

        $ARRAY_COLLECTOR=array();

        $TODO=TRUE;

     } else {

          if (substr($tab[0],0,2)=='@@') {

                if ($TODO) {

                     $metadata['Message']=implode('',$ARRAY_COLLECTOR);

                     SendData($id,$metadata,$COLLECTOR);

                    $TODO=FALSE;

                     $COLLECTOR=null;

                }

          }

          if ($TODO) $ARRAY_COLLECTOR[]=$line;

     }

}


function CallAPI($method, $url, $data = false)

{

    $curl = curl_init();

    switch ($method)

    {

        case "POST":

            curl_setopt($curl, CURLOPT_POST, 1);

            if ($data)

                curl_setopt($curl, CURLOPT_POSTFIELDS, $data);

            break;

        case "PUT":

            curl_setopt($curl, CURLOPT_PUT, 1);

            break;

        default:

            if ($data)

                $url = sprintf("%s?%s", $url, http_build_query($data));

    }

    curl_setopt($curl, CURLOPT_URL, $url);

    curl_setopt($curl, CURLOPT_RETURNTRANSFER, 1);

    $result = curl_exec($curl);

    curl_close($curl);

    return $result;

}


function reduce_array($line) {

     $tab=explode(' ',$line);

     $nr=array();

     for ($i=0;$i<sizeof($tab);$i++) if (trim($tab[$i])!='')
$nr[]=trim($tab[$i]);

     return $nr;

}


function SendData($id,$cc,$COLLECTOR=null) {

     if ($COLLECTOR==null) return;

     $d=new DateTime();

     if ($cc['LastChange']!='')
{$d->setTimestamp($cc['LastChange']);$cc['LastChange']=$d->format('c');}
else {$cc['LastChange']='NaN';}

     if ($cc['LogTime']!='')
{$d->setTimestamp($cc['LogTime']);$cc['LogTime']=$d->format('c');} else
{$cc['LogTime']='NaN';}

     if ($cc['ValidTime']!='')
{$d->setTimestamp($cc['ValidTime']);$cc['ValidTime']=$d->format('c');} else
{$cc['ValidTime']='NaN';}

     if (isset($cc['AckTime'])) {

          if ($cc['AckTime']!='')
{$d->setTimestamp($cc['AckTime']);$cc['AckTime']=$d->format('c');} else
{$cc['AckTime']='NaN';}

     }

     if ($cc['DisableTime']!='')
{$d->setTimestamp($cc['DisableTime']);$cc['DisableTime']=$d->format('c'); }
else {$cc['DisableTime']='NaN';}

     $data = json_encode($cc);

     $data=str_replace('"NaN"','null',$data);

     echo $id.'=>'.$data."\n";

     $url="http://127.0.0.1:9200/xymon/".$COLLECTOR."/".$id;

     $res=CallAPI("POST",$url,$data);

}

?>


*De :* Peter Welter [mailto:user-f55666bd0d1e@xymon.invalid]

*? :* OUTTERYCK Francois
*Cc :* xymon at xymon.com
*Objet :* Re: [Xymon] Capture and send data To Elasticsearch and Kibana


Hi Francois,


Looks good, your sample. I am very interested in your integration efforts.


How do you select what is going to be inserted in the ELK stack? All
status messages that Xymon receives?


And could you provide an example of the xymond_channel block in you
task.cfg and the capture.sh?


Tasks.cfg probably is something like:


[es]

...

 CMD xymond_channel --channel=status /home/xymon/server/ext/capture.sh

...


And the capture.sh contains some curl script to the ELK stack?


Regards,


Peter


2016-12-14 18:15 GMT+01:00 OUTTERYCK Francois <
user-ba0ce136dc99@xymon.invalid>:

Hello, I just do a small work with Xymon in order to send status data to
Elasticsearch. And with Kibana reporting is easy.


How it work ? Simple : With capture of status message (xymond_channel
--channel=status /home/xymon/server/ext/capture.sh ) script encode  status
message in json and send as document in elasticSearch.


Example of Mapping document status in elasticsearch :


"status"=> array(

                     "properties"=>array(

                          "ServerName"=> array("type"=> "string"),

                          "Type"=> array("type"=> "string"),

                          "Status"=> array("type"=> "string"),

                          "LastChange"=> array("type"=> "date","format"=>
"strict_date_optional_time"),

                          "LogTime"=> array("type"=> "date","format"=>
"strict_date_optional_time"),

                          "ValidTime"=> array("type"=> "date","format"=>
"strict_date_optional_time"),

                          "AckTime"=> array("type"=> "date","format"=>
"strict_date_optional_time"),

                          "DisableTime"=> array("type"=> "date","format"=>
"strict_date_optional_time"),

                          "Sender"=> array("type"=> "string"),

                          "DisableMSg"=> array("type"=> "string"),

                          "Message"=> array("type"=> "string")

                     )

                )


All is done with a 130 lines script. So simple to integrate in existing
environment and so powerfull usage of  Xymon/elasticsearch/Kibana


For those who don?t know kibana : https://www.elastic.co/products/kibana
